Heypac Air Filter / Regulator Assembly

New

Hyquip supply the entire range of Heypac Air Filter / Regulator Assemblies.

More details

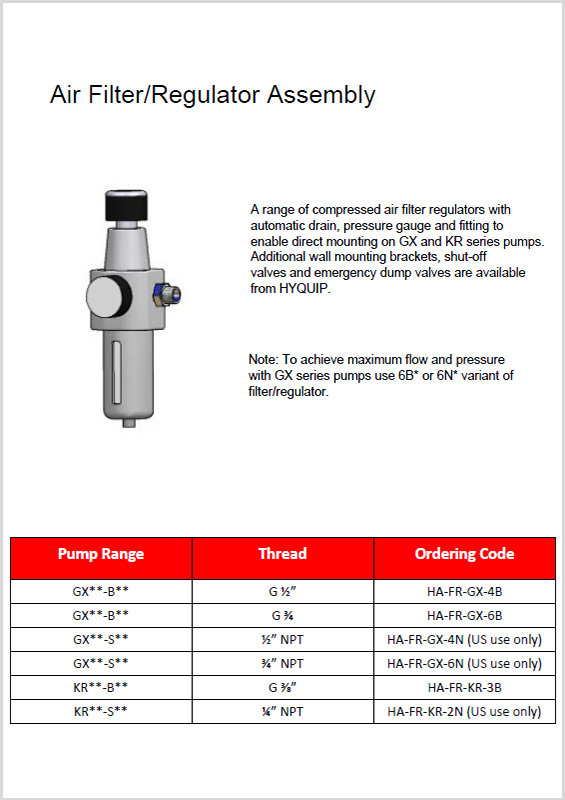

Heypac Air Filter / Regulator Assembly

A range of compressed air filter regulators with automatic drain, pressure gauge and fittings to enable direct mounting on GX and KR series pumps. An auto drain filter/regulator (25 micron) should be fitted as close as possible to the air inlet and be of sufficient size for the air consumption anticipated. The air drives of the pumps are greased on assembly and therefore should not be used on lubricated air supplies as this will wash out the grease and shorten service life.

Additional wall mounting brackets, shut-off valves and emergency dump valves are available upon request.

Note: To achieve maximum flow and pressure with GX series pumps use 6B* or 6N* variant of filter/regulator.


Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959

Air filter/Regulator Assembly Ordering Code:


Pump Range Thread Ordering Code
GX**-B** G ½” HA-FR-GX-4B
GX**-B** G ¾” HA-FR-GX-6B
GX**-S** ½” NPT HA-FR-GX-4N (US use only)
GX**-S** ¾” NPT HA-FR-GX-6N (US use only)
KR**-B** G 3/8” HA-FR-KR-3B
KR**-S** ¼” NPT HA-FR-KR-2N (US use only)



Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
