GX Series Pumps from Heypac

New

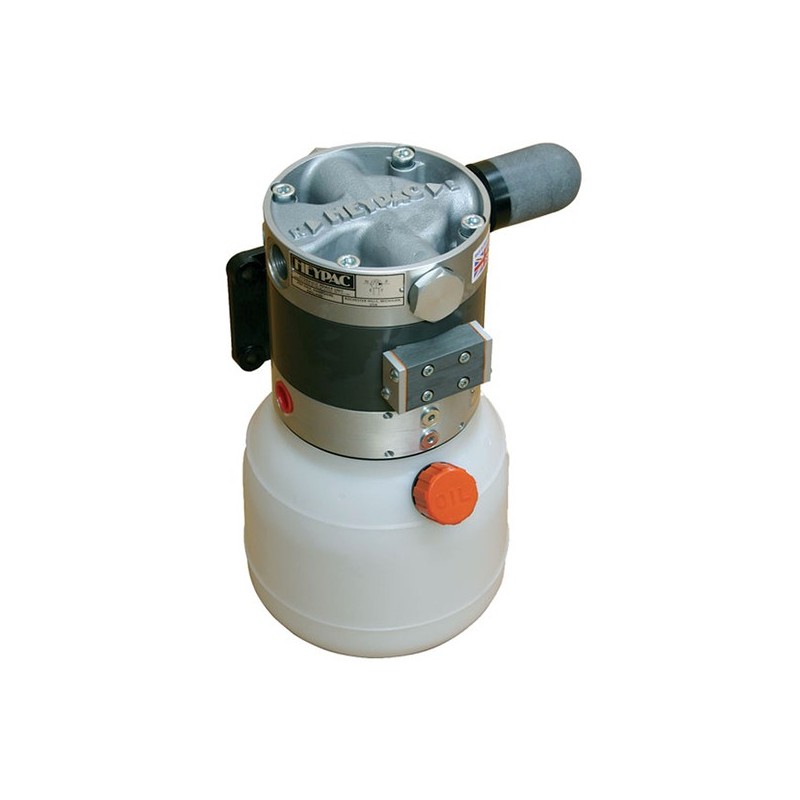

The GX series 1.5kW (2hp) pump range can be supplied in either basic pump form, complete with an integral reservoir or as a fully assembled power unit.

  • pressures from 4 bar (60psi) up to a theoretical maximum of 800bar (12,000psi)
  • flows up to 80lpm (18gpm)

More details

Heypac GX Series pumps 1.5Kw (2HP)

  • A range of 1.5Kw (2HP) rated compressed air driven pumps offering pressures from 4 to 800bar and flow rates from 2.5 to 80l/min dependant on intensification ratio
  • Suitable for use with a wide range of fluids including mineral oils, vegetable oils, water glycol solutions, phosphate esters, water, grease and liquefied gases and many others
  • A wide range of mounting styles including foot and wall mounting brackets, tank top mounting, integral reservoirs for vertical and horizontal mounting
  • Reservoir capacities from 2.5 to 30 litres as standard with larger capacities available to special order
  • Single or double pump installations available on 30 litre and larger reservoir sizes
  • Many pumps available with integral manifold blocks allowing CETOP 03 / D03 / NG6 valves to be mounted directly to the pump. Available in 1 and 2 station formats with further stations available to special order
  • Most pumps available with ATEX EX II 2 G D,C T6 (85) protection for use in potential explosive environments

Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can't find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959

Model Code for GX series:

E GX40- B P V- 00 M- W- DM**
1 2 3 4 5 6 7 8 9

1 E** ATEX Approved: to EX II 2 D, c T6 (85) - Omit if standard pump required.
2 Fluid/air pressure ratio: GX025 - 2.5:1    GX05 - 5:1    GX10 - 10:1
GX20  -  20:1     GX30 - 30:1  GX40 - 40:1
GX60  -  60:1     GX80 - 80:1
3 Port threads: N - NPT (GX025 only)
B - BSP
S - SAE (US standard)
4 Dynamic fluid seals: C - Carbon filled PTFE
S - Polyethene (standard on GX05, GX10, GX20 and GX30
P - Polyurethane (standard on GX40, GX60 and GX80)
O - Special options upon request
5 Static fluid seals: N - Nitrile
V - Viton (standard on all GX pumps)
E - EPDM Ethylene Propylene
6 Pump Configuration: 00 - Basic Pump
T1 - As 00 plus Tank mounting Flange
W1 - As 00 Plus Wall Mounting Bracket
R1 - Power Pack including 2.5 L Reservoir & Mounting Bracket
R2 - Power Pack including 4.5 L Reservoir & Mounting Bracket
(not availbale with ATEX approved pumps)
R3 - Horizontal Mounting version of R1
R4
- Horizontal Mounting version of R2 (Not available with ATEX approved pumps)

7 Manifold options: M - Pump with CETOP03/DO3/NG6 manifold fitted.
Valves mount in vertical plane (GX10 to GX80 only)
H - Pump with CETOP03/DO3/NG6 Manifold fitted
Valves mount in Horizontal plane (GX10 to GX40 only)
H2 - Pump with 2 station CETOP03/D03/NG6 manilfold fitted.
Valves mount in Horizontal plane (GX10 to GX40 only)

8 Water option W - Pump for use with water (GX05 to 80 only)
Standard GX025 is water compatible
9 Design modifications DM** (e.g DM14 - Low Temperature seals. )
Other options upon request


Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can't find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959



Gx Range:


Model GX025 GX05 GX10 GX20 GX30 GX40 GX60 GX80
Ratio
fluid:air
2.5:1 5:1 10:1 20:1 30:1 40:1 60:1 80:1
P max fluid
bar (psi)
17.5
(254)
35
(508)
70
(1015)
140
(2030)
210
(3045)
280
(4060)
420
(6090)
560
(8120)
Q max fluid
l.min (US gpm)
80
(21.1)
40
(10.6)
20
(5.3)
10
(2.6)
7.5
(1.98)
5.0
(1.3)
3.8
(1.0)
2.5
(0.66)
Q max avge fluid
l.min (US gpm)
22
(5.8)
11
(2.9)
5.5
(1.45)
2.8
(0.74)
2.1
(0.55)
1.4
(0.37)
1.0
(0.26)
0.7
(0.18)




GX025 GX05
GX10 GX20
GX30 GX40
GX60 GX80
