KR Series Pumps from Heypac

New

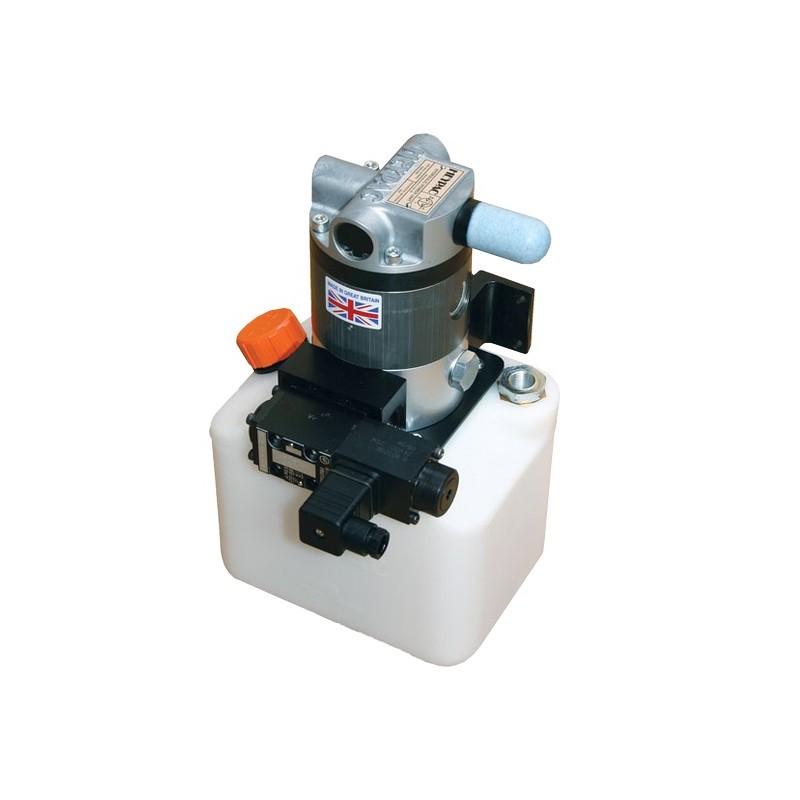

The KR series has a 0.37Kw (1/2hp) pump range which can be supplied in either basic pump form, complete with an integral reservoir or as a fully assembled power unit.

  • Pressures from 3bar (45psi) up to a theoretical maximum of 680bar (9800psi)
  • Flows up to 15lpm (3.3gpm).

More details

Heypac KR Series pumps 0.37Kw (1/2HP)

  • A range of 0.37Kw (1/2HP) rated compressed air driven pumps offering pressures from 4 to 680bar and flow rates from 0.5 to 15l/min dependant on intensification ratio.
  • Suitable for use with a wide range of fluids including mineral oils, vegetable oils, water glycol solutions, phosphate esters, water, grease and liquefied gases and many others.
  • A wide range of mounting styles including foot and wall mounting brackets, tank top mounting and integral reservoirs for vertical mounting.
  • Reservoir capacities from 2.5 to 30 litres as standard with larger capacities available to special order.
  • Single or double pump installations available on 30 litre and larger reservoir sizes.
  • Many pumps available with integral manifold blocks allowing CETOP 03 / D03 / NG6 valves to be mounted directly to the pump. Available in 1 and 2 station formats with further stations available to special order.
  • Most pumps available with ATEX EX II 2 G D,C T6 (85) protection for use in potential explosive environments

For product pricing, delivery, technical support or associated services CONTACT HYQUIP
You can also call our sales office +44 (0)1204 699959

Model Code for KR series:

E KR40- B P V- 00 M- W- DM**
1 2 3 4 5 6 7 8 9

1 E**ATEX Approved to EX II 2 D, c T6 (85) - Omit if standard pump required.
2 Fluid/air pressure ratio: KR02 - 2:1      KR05 - 5:1
KR10  -  10:1  KR20 - 20:1
KR40  -  40:1  KR80 - 80:1
3 Port threads: B - BSP
S - SAE (US standard)
4 Dynamic fluid seals: C - Carbon filled PTFE
S - Polyethene (standard on GX05, GX10, GX20 and GX30
P - Polyurethane (standard on GX40, GX60 and GX80)
O - Special options upon request
5 Static fluid seals: V - Viton (standard on all GX pumps)
E - EPDM Ethylene Propylene
6 Pump Configuration 00 - Basic Pump
T2 - As 00 plus Tank mounting Flange
W2 - As 00 Plus Wall Mounting Bracket
R5 - 2.5 L Reservoir & Mounting Bracket (Not available with ATEX approved pumps)
R5ST - 3.0 L Steel Reservoir & Mounting Bracket
7 Manifold options: M2- Pump with ISO 4401-02-01-0-94 Manifold fitted.
M3- Pump with ISO 4401-03-02-0-94 Manifold fitted.
(M option not available on KR80)
8 Water options: W - Pump for use with water
9 Design modifiactions: DM** (e.g DM27 - Liquid gas Application Pump. )
Other options upon request


Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can't find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959



Performance Data - KR Range


Model KR02 KR05 KR10 KR20 KR40 KR80
Ratio
fluid:air
2:1 5:1 10:1 20:1 40:1 80:1
P max fluid
bar (psi)
13.5
(200)
42.5
(615)
85
(1230)
170
(2460)
340
(4920)
680
(9840)
Q max fluid
l.min (US gpm)
15
(4)
10
(2.65)
5
(1.32)
2.5
(0.65)
1.2
(0.32)
0.5
(0.13)
Q max avge fluid
l.min (US gpm)
4
(1)
2.8
(0.74)
1.4
(0.37)
0.7
(0.18)
0.35
(0.09)
0.17
(0.04)



KR02
KR05
KR10
KR20
KR40
KR80
