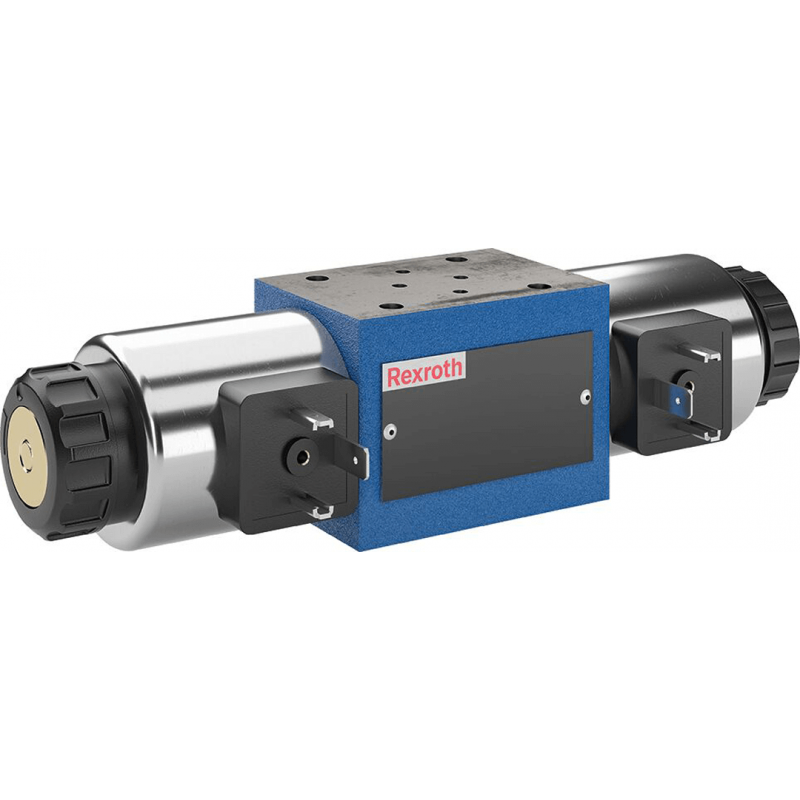

Bosch Rexroth 4/2 and 4/3 Directional Shut-off Valves Type Z4WE 6
On/off shut-off isolator valves in sandwich plate design Z4WE6 4/2 and 4/3 directional isolator valves (size 6)
- Component series 3X
- Maximum operating pressure 315 bar
- Maximum flow 50 l/min
Description

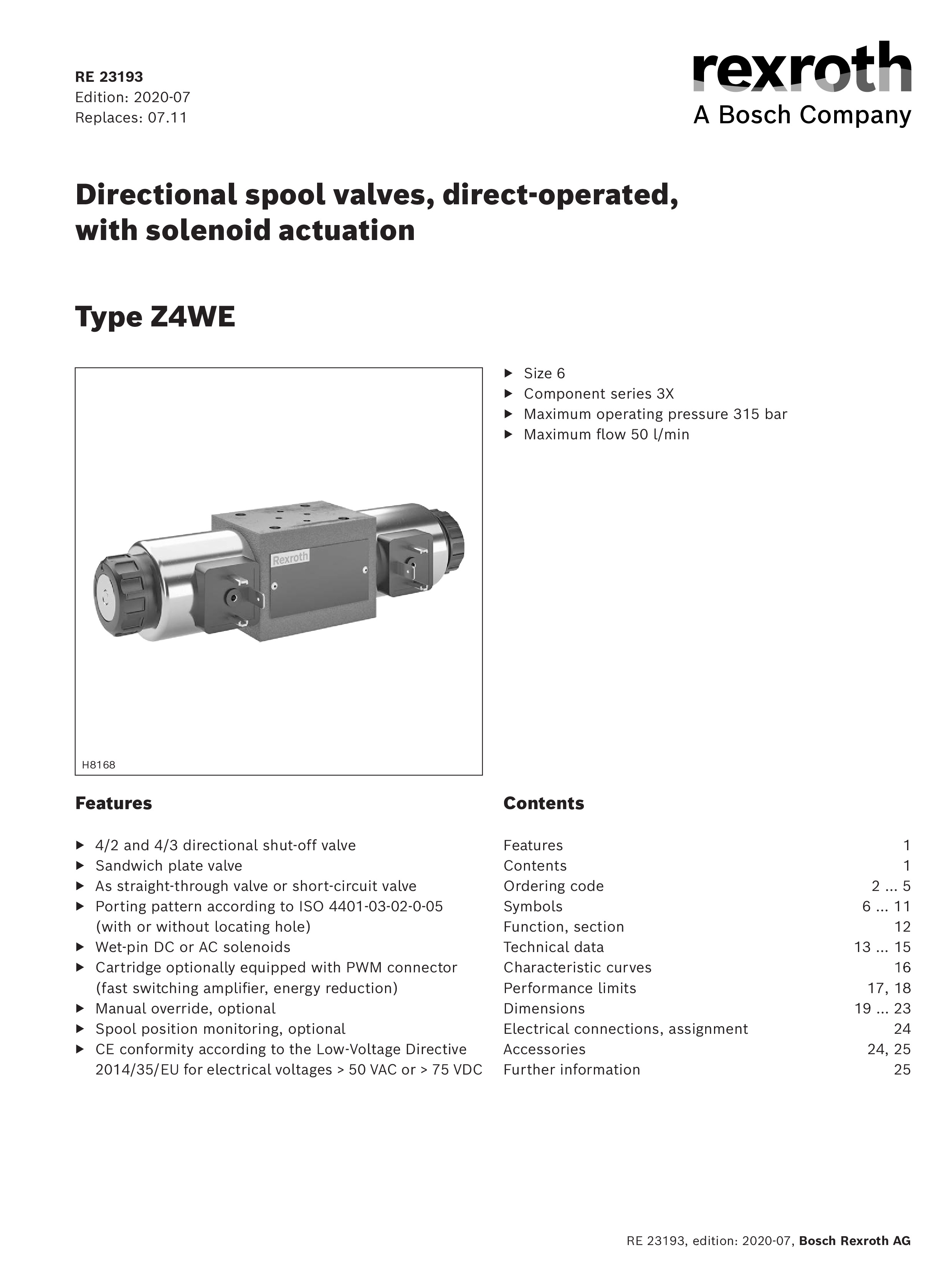

Downloads
Bosch Rexroth On/Off Shut-off Isolator Valves in Sandwich Plate Design Z4WE 6
- Size: 6
- Component series: 3X
- Maximum operating pressure: 315 bar
- Maximum flow: 50 l/min
Features:
- Direct-controlled directional slide valve with solenoid actuation
- Sandwich plate valve
- As stop straight-through valve or stop straight-through short circuit valve
- Porting pattern according to DIN 24340 form A (without locating hole), (standard)
- Porting pattern according to ISO 4401-03-02-0-05 (with locating hole)
- Wet-pin AC or DC solenoids
- Manual override, optional
General Function:
The directional valve type Z4WE is a solenoid-operated directional spool valve. It controls the start, stop and direction of a flow. The directional valve basically consists of housing, one or two solenoids, control spool, as well as two return springs.
