Carr Lane’s custom hammers and industrial hand tools are built to fulfil any tooling requirement. These customisable hammers are available in various sizes, by choosing the hammer inserts that best fit your specific application. Carr Lane’s custom hammers are available in a range of handle materials, such as wood, fiberglass, and steel. Carr Lane’s no-rebound hammers, also known as dead blow hammers, provide maximum impact and deliver 50% more force than standard hammers. Their design features specialized steel pellets that transfer momentum directly to the impact point.

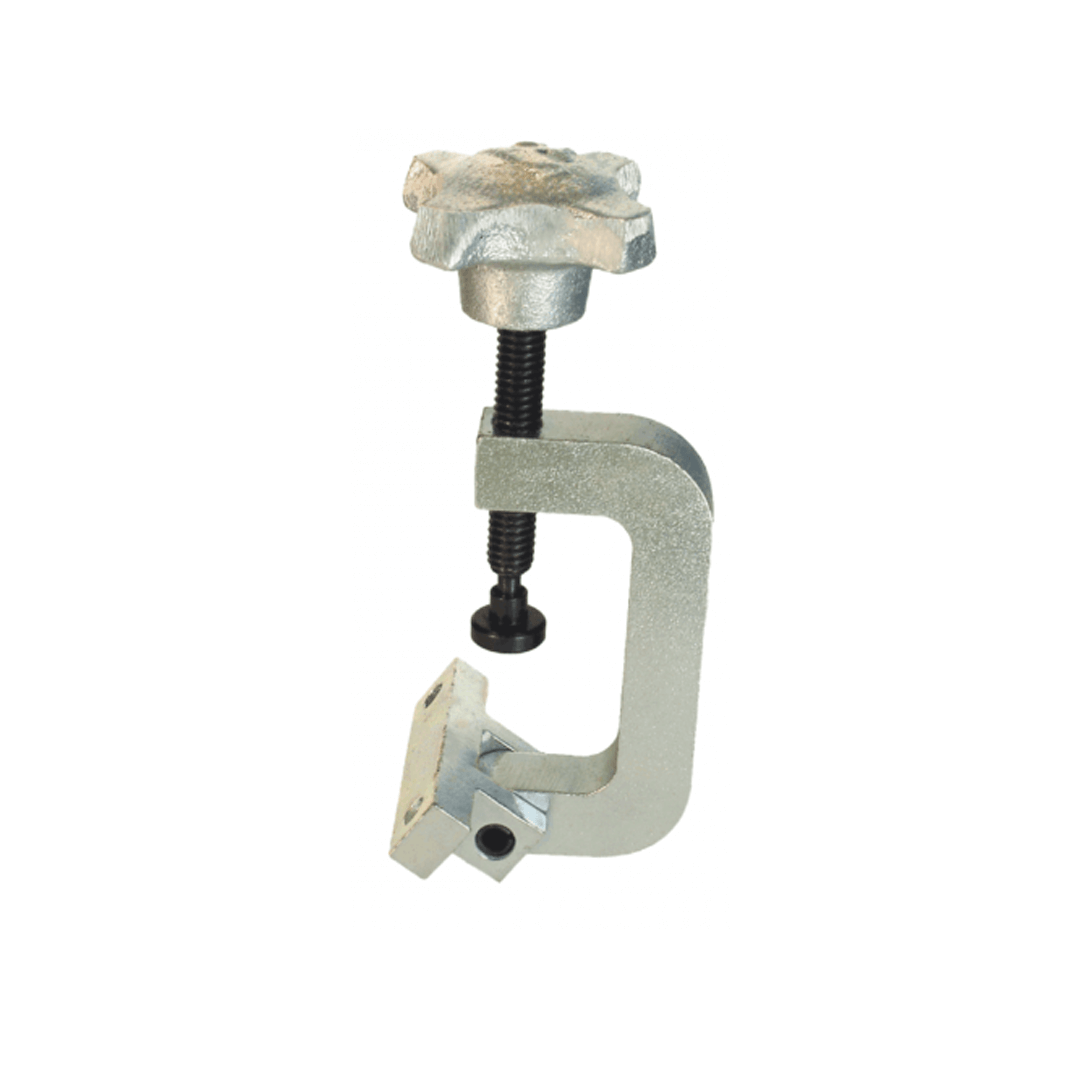

These specialized C-clamps feature a hinged pad designed to be permanently attached to a fixture, enabling them to swing out of the way for easy loading of workpieces. The hinged mounting pad is securely fastened to the fixture using two socket-head cap screws. A four-prong knob offers a solid grip for tasks that demand rapid tightening and high torque. The clamping screw is firmly cast into the knob and includes a removable swivel foot. These clamps are offered in four different sizes

Carr lanes clamp rests offer rear support for slotted heel clamp straps. The steel variants are equipped with a hex head to allow adjustment and is furnished with a jam nut. The stainless-steel variant is manufactured with a drilled to accommodate a rod to allow turning. Each of these variants are  available in various sizes. Carr lane clamp rest screws available in thread sizes 3/8-16 and 1/2-13, each in a choice of three lengths.

• Clamp Rests and Clamp Rest Screws
• Steel and Stainless Steel
• Metric and Imperial sizes available

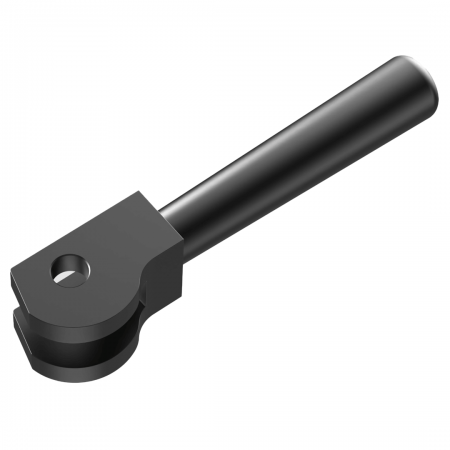

Carr Lane cam handles are designed for use with an Eye Bolt or a custom-made drawbar. The continuous-rise spiral cam locks firmly in place at any position. It is available to fit Eye Bolt sizes ranging from 1/4-20 to 3/4-10 (M6 to M20 in metric).

• Available inmetric and imperial
• Sizes ranging from 1/4-20 to 3/4-10 (M6 to M20 in metric).

Carr Lane one-touch quick acting swing clamps are available in three variations including vertical cam handle, hex drive and horizontal cam lever. One-Touch Swing Clamps are manually operated clamps that first rotate exactly 70° clockwise into position then clamp straight down in one continuous motion. Each variant has different clamp sizes that apply a range of different maximum clamping forces.

• All clamp types available in four sizes
• Available in hex drive, vertical cam handle , horizontal cam lever variants

Carr lane cam edge clamps are offered with either a fixed base or slotted base. Option between counter clockwise or clockwise movement to the clamp. These are Available in two sizes, with 5/16-18 or 1/2-13 mounting screws (M8 or M12 in metric). These are available in both metric and imperial sizing.

• Clockwise and Counter Clockwise working Cam Edge Clamps
• Both available with fixed and slotted bases
• Imperial and Metric sizes available

Carr Lane forged clamp straps are high strength tapped heel clamp straps that are available with either a locator nose or plain radius nose. These clamp straps have a tapped heel that accepts an adjustable rear support, such as a Stud levelling Foot. The items are available to accommodate stud sizes of fit 5/8-11, 3/4-10, and 7/8-9.

• Plain and Locator Noses
• Range of threads and lengths
• Available with Straight Neck or Gooseneck

Carr Lane offer various types of washers including flat washers, spherical washers and knurled face washers. Flat washers have a serrated surface designed to stop two parts from slipping relative to one another. Spherical Washers are robust two-piece washers designed to adjust when a stud and clamping surface are not perfectly perpendicular. These items are available in metric and imperial sizing as well as steel and stainless-steel options for selected products.

• Available in metric and imperial
• Available in steel and stainless steel

Carr Lanes shoulder screws are a type of fastener that are manufactured with a cylindrical body and a shoulder between the threaded portion and the head of the screw. The shoulder is larger in diameter in comparison to the threaded area and is a bearing surface or precise reference point. This item is available in both metric and imperial sizing and in thread diameters from 1/4" to 3/4" (8 to 20mm). These shoulder screws are best used for critical applications where precision and performance are vital.

• Metric and Imperial sizes available
• Shoulder Dia - 1/4 - 3/4 or 8mm - 20mm

Carr Lanes Hex and jam nuts are available in various thread sizes in both metric and imperial sizing to fit the needs of your application. They are also available in steel and stainless teel variants.

• Imperial, Imperial Fine and Metric
• Steel and Stainless Steel
• A Thread - #8-32 - 1-1/4"7  #10-32 - 3/4-16  M4 - M30

 Carr Lane replacement pads are offered as a replacement or optional pads for clamp straps. These replacement pads are available in 3 different materials including steel, reinforced plastic and brass.

• Thread - #5-40 - 1/4-20
• Stud Size - 1/4-20 - 1/2-13
• Available in steel, reinforced plastic and brass
