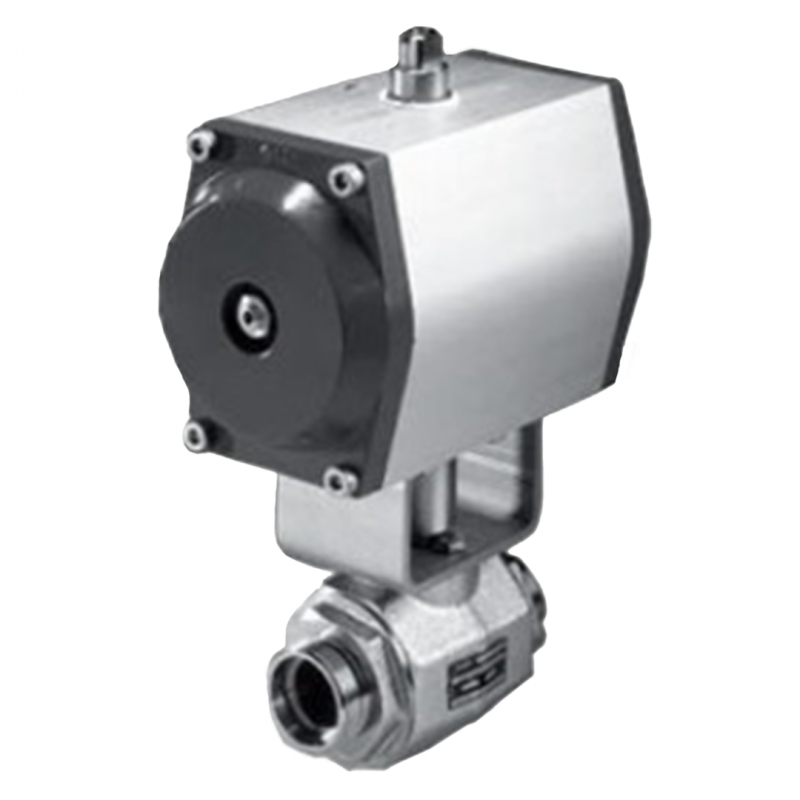

Hydac Ball Valves with Pneumatic Actuator

New

Hydac ball valves with pneumatic actuator PN up to 500

More details

Download Data Sheet Hydac Ball Valves with Pneumatic Actuator

Hydac Ball Valves with Pneumatic Actuator

  • PN up to 500
  • DN 04 - 50
  • Mounting position Optional
  • Ambient temperature -10 °C to +80 °C
  • Operating fluids Mineral oil to DIN 51524 part 1 and part 2
    (other fluids on request)
  • Temperature of operating fluid -10 °C to +80 °C

Seal kits available on request

Note:

We recommend using an adapter plate when fitting a pneumatic actuator to block-type, sleeve-type and 3-way change-over ball valves. For flanged, manifold and 3-way and 4-way ball valves, a separate coupling is required for installation

On request other versions are available to suit almost all applications
