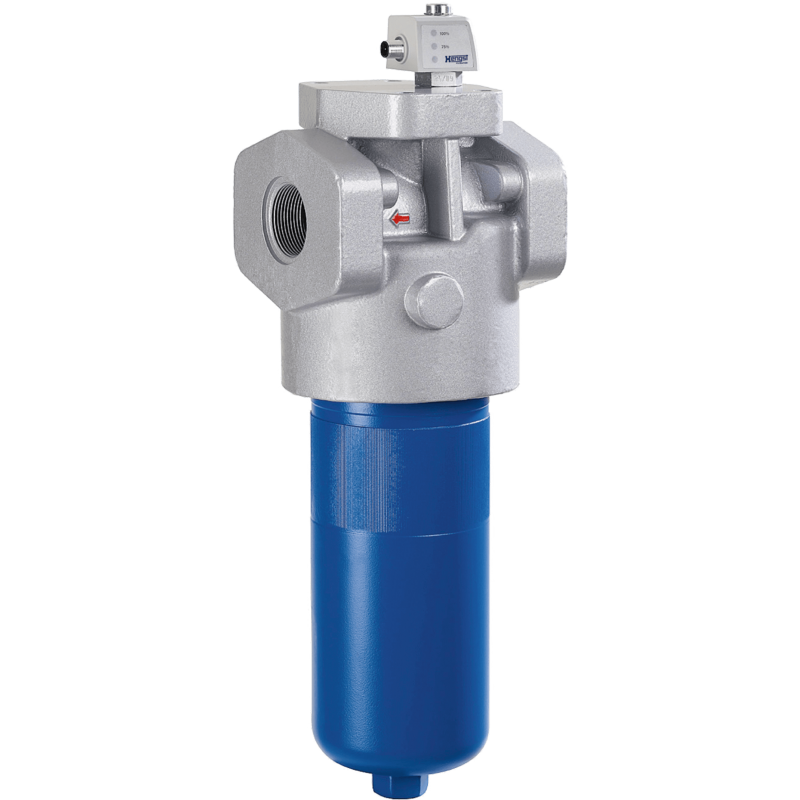

Hengst inline filter with filter element Type 445 LE(N)

Hengst inline filter with filter element Type 445 LE(N)

• Sizes according to DIN 24550: 0040 to 1000
• Nominal pressure 450 bar [6527 psi]
• Connection up to 2”, SAE 2 1/2”, SAE 24
• Operating temperature: –10 °C … +100 °C [+14 °F … +212 °F]

Features:

Inline filters are used in hydraulic systems for separating solid materials from fluids and lubricating oils. They are intended for attachment in pipelines.

They distinguish themselves by the following:

• Filters for inline installation
• Size 1000 with divided filter bowl
• Special highly efficient filter materials
• Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
• High collapse resistance of the filter elements
• By default equipped with mechanical optical maintenance indicator with memory function
• Available as an option with different electronic switching elements, modular design
• Optional bypass valve integrated in the filter housing
• Optional measuring port
• High filtration performance due to the tangential cyclone-effect flow path
