4/4 High-response Directional Valves, Direct Operated, Electrical Position Feedback and Integrated Electronics (OBE) 4WRPEH 10

Bosch Rexroth 4/4 direct operated directional control valves with electrical position feedback and integrated electronics (OBE) for subplate mounting 4WRPEH 10 (size 10)

  • Component series: 2X
  • Max. operating pressure: 315 bar
  • Nominal flow: 50 l/min, 100 l/min
Print page

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
4WRPEH 10 C4 B100L-2X/G24K0/A1M 4WRPEH10C4B100L-2X/G24K0/A1M 0811404803 0 £4,846.82
£5,816.18 Inc. VAT
4WRPEH 10 C B100L-2X/G24K0/A1M 4WRPEH10CB100L-2X/G24K0/A1M 0811404809 0 £4,846.82
£5,816.18 Inc. VAT
4WRPEH 10 C3 B100L-2X/G24K0/F1M 4WRPEH10C3B100L-2X/G24K0/F1M 0811404817 0 £4,622.10
£5,546.52 Inc. VAT
4WRPEH 10 C3 B100L-2X/G24K0/A1M 4WRPEH10C3B100L-2X/G24K0/A1M 0811404801 0 £4,846.82
£5,816.18 Inc. VAT
4WRPEH 10 C1 B100L-2X/G24K0/A1M 4WRPEH10C1B100L-2X/G24K0/A1M 0811404821 0 £4,846.82
£5,816.18 Inc. VAT
4WRPEH 10 C3 B50L-2X/G24K0/A1M 4WRPEH10C3B50L-2X/G24K0/A1M 0811404800 0 £4,846.82
£5,816.18 Inc. VAT
4WRPEH 10 C4 B100P-2X/G24K0/A1M 4WRPEH10C4B100P-2X/G24K0/A1M 0811404825 0 £5,175.39
£6,210.47 Inc. VAT
4WRPEH 10 C1 B50L-2X/G24K0/A1M 4WRPEH10C1B50L-2X/G24K0/A1M 0811404820 0 £4,846.82
£5,816.18 Inc. VAT

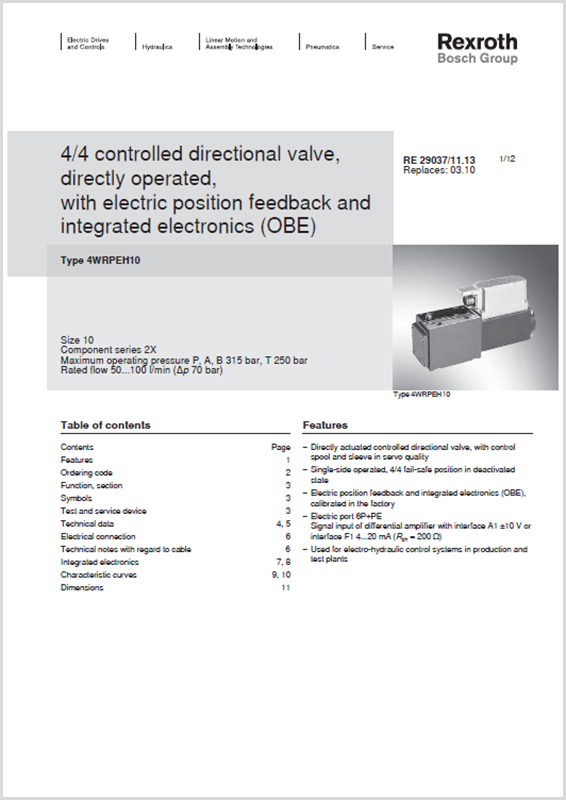

re29037 2013-11
re29037_2013-11

Bosch Rexroth 4/4 High-response Directional Valves, Direct Operated, with Electrical Position Feedback and Integrated Electronics (OBE) 4WRPEH 10

  • Size: 10
  • Component series: 2X
  • Max. operating pressure: 315 bar
  • Nominal flow: 50 l/min, 100 l/min
  • For subplate mounting

Features:

  • High-response directional valve, direct operated, with control spool and sleeve in servo quality
  • Operated on one side, 4/4 fail-safe position in switched-off condition
  • Electric position feedback and integrated electronics (OBE), calibrated in the factory
  • Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
  • Use for electro-hydraulic controls in production and test systems

General Function:

In the integrated electronics, the specified command value is compared with the position actual value. In case of control deviations, the stroke solenoid will be activated which - due to the changed magnetic force - adjusts the control spool against the spring.

Stroke/control cross-section is controlled proportionally to the command value. In case of a command value presetting of 0 V, the electronics adjusts the control spool against the spring to central position. In deactivated condition, the spring is untensioned to a maximum and the valve is in fail-safe position.
