Spring Plungers

Short Spring Plungers with Extended Travel feature the same body length as a Short Spring Plunger but offer the longer stroke of a standard Spring Plunger. This self-contained plunger and spring device comes in various sizes and includes a locking element to ensure the unit stays securely in place after installation. It can be installed and adjusted from either side.

• Standard and Delrin®
• Steel and Stainless Steel
• Available in Imperial and Metric
• A Diameter .1676 - 5/8-11 (M5-M1)

Carr Lane Spring Plungers are self-contained devices that combine a plunger and spring to deliver force across a wide range of movement. Featuring a sliding plunger nose with an extended bearing length, these plungers ensure smooth, consistent operation. Available in various options, including steel, stainless steel, and combinations of stainless steel or steel with a Delrin nose.

• Light and Heavy Force
• Metric and Imperial sizes available
• Thread - #6-32 - 1"-8 or M6 - M12
• Standard and Delrin® with Steel and Stainless Steel options

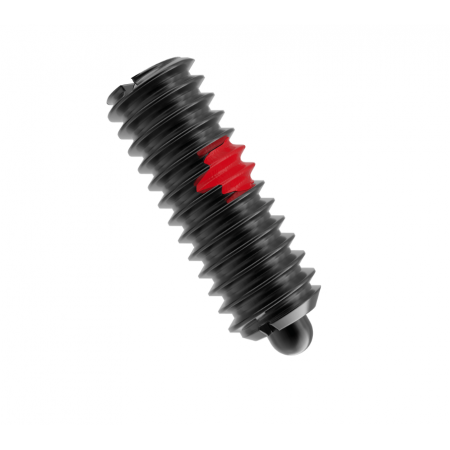

Carr Lane short spring plungers are self-contained plungers that have a shorter overall length and shorter stroke than the standard plungers. These are available in many different sixes and forced. Short plungers are available In both stainless steel and steel as well as both metric and imperial sizes. Various types of nose are available across Carr Lanes range of short spring plungers.

• Steel and stainless steel available
• Metric and Imperial sizes available
• Thread sizes ranging from #8-32 to 5/8-11
