Bell Housings

The HYDAC PTK Series Bell Housings combine flexible pump mounting with integrated oil/air cooling for efficient hydraulic system operation. Designed for IEC standard motors (1000–3000 rpm), they support both horizontal and vertical installation and are compatible with mineral oil and other fluids. Cooling is provided via a fan-driven oil/air cooler with a pressure rating up to 16 bar and a max oil temperature of +100°C.

Key Features:

• VDMA 24561 Form C design allows easy interchange with Forms A and B
• Integrated oil/air cooler with fan for effective temperature control
• Suitable for a wide range of motor sizes and hydraulic pump configurations

HYDAC Bell Housings Type PTS & PT provide a secure and efficient connection between electric motors and hydraulic pumps. Available in both rigid and flexible mounting options, these housings are designed to meet VDMA 24561 standards and offer easy installation with pre-machined connecting flanges. Constructed from high-quality aluminum cast alloy, they are ideal for a wide range of industrial applications.

Key Features:

• Mounting position: Optional
• Operating temperature: -20 °C to +100 °C
• Mineral oil resistance (Special models on request)

HYDAC Bell Housing Sets offer a complete solution for connecting HYDAC pumps to drive motors quickly and reliably. Each set includes a precisely machined bell housing and a matching coupling, ensuring easy installation without the need for costly alignment. Optional foot brackets and damping rails are available to enhance performance and reduce vibration.

• Rigid bell housing (PTS)
• Flexible bell housing (PT)
• Flexible bell housing with oil-air cooler (PTK)

HYDAC Damping Rails are engineered to reduce vibration and noise levels in hydraulic systems by isolating bell housing foot brackets from structural surfaces. Made from durable NBR rubber, these rails are resistant to mineral oil and designed for horizontal installations in both light- and heavy-duty applications according to VDMA 24561 standards.

• FDS.../3 for bell housing foot brackets of the light-duty range
• FDS.../4 for bell housing foot bracket of the heavy-duty range

HYDAC Damping Rings provide an effective and economical solution for reducing noise and vibration by decoupling the hydraulic pump-motor assembly from the tank. Designed with a vulcanized seal lip, they eliminate the need for additional sealing components. Suitable for both vertical and horizontal mounting, these rings offer high stress resistance and are built from durable, mineral oil-resistant NBR rubber.

Key Features:

• Available in sizes 200 to 600, with NBR rubber for oil resistance
• Handles radial, angular, and axial loads in any mounting position
• Integrated seal lip for simplified, leak-free installation

HYDAC bell housing mounting plate for bell housings types PT, PTK and PTS enables the complete motor-pump unit to be fitted and removed from outside the tank.

Key Features:

• Pump support plates size 200 to size 350
• Round seals between pump support and plate size 140 to size 660
• Oval seals between plate and container cover size 200 to 350

HYDAC Spider Couplings provide reliable, torsionally flexible connections with excellent vibration damping, thanks to a precision-molded polyurethane elastomer insert (98° Shore A). Designed for compression-only loading, these couplings are failsafe, maintenance-free, and accommodate axial, radial, and angular misalignment with ease.

Temperature Range:

• -30 °C to +90 °C for continuous operation
• -40 °C to +120 °C for short-term operation

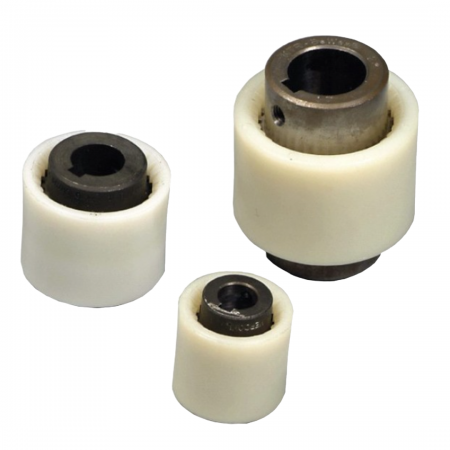

HYDAC Gear Couplings offer a flexible and durable shaft connection, ideal for applications requiring precise torque transmission without radial stress. Featuring a double Cardan design, they effectively compensate for axial, radial, and angular misalignments. The coupling hub is made of robust steel, while the sleeve is lightweight, wear-resistant polyamide.

Temperature Range:

• Temperature range: -25 °C to +80 °C for continuous operation
