Stainless Boosters

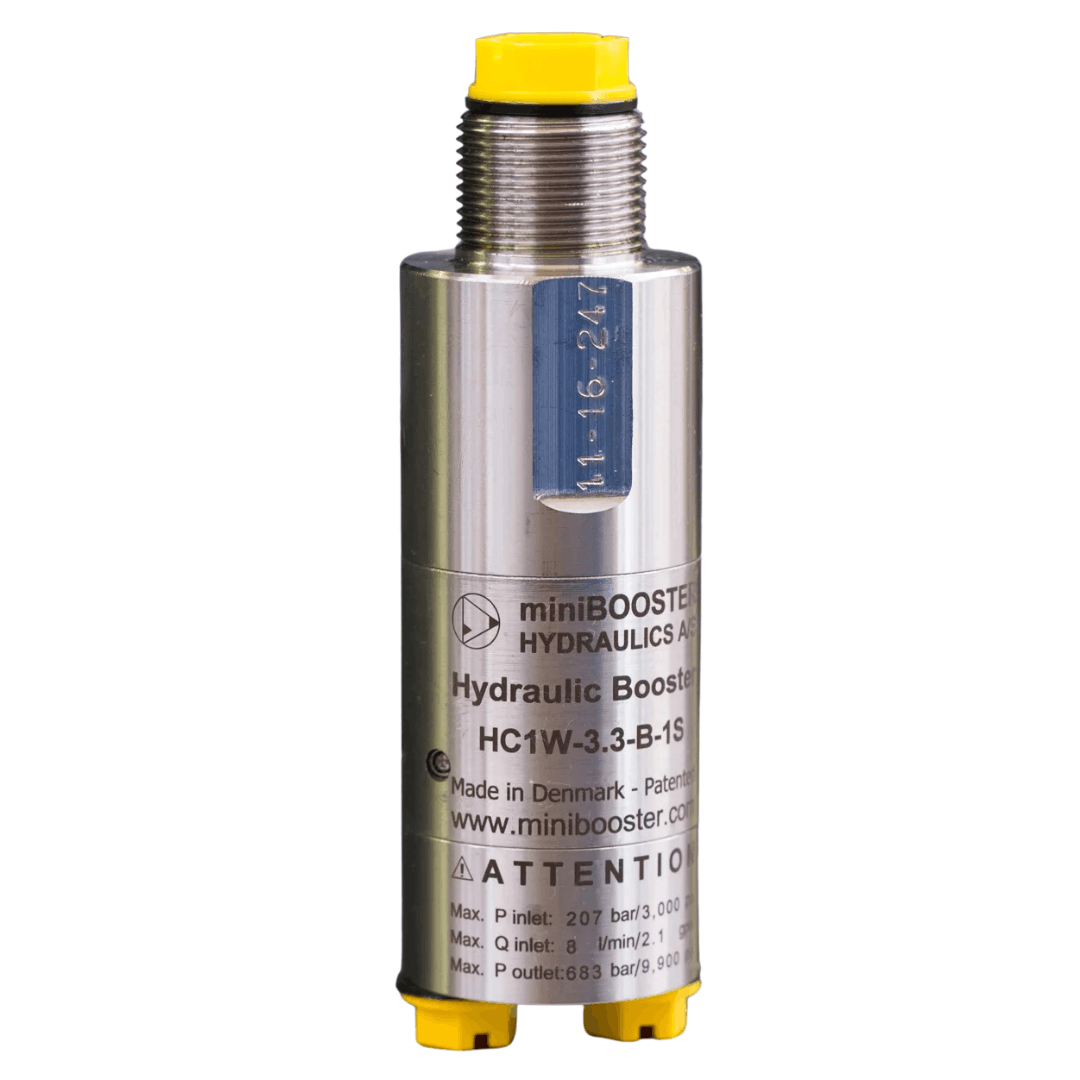

HC1W: 9 different intensification factors

• P_IN: 20 – 207 bar (inlet pressure)
• P_RETURN: As low as possible (return pressure to tank)
• P_H: 800 bar maximum (outlet pressure)
• P_OUTLET: P_H = (P_IN – P_Return) x I (intensification)
• Mounting: Inline tube

HC2W: 11 different intensification factors

• P_IN: Inlet pressure 20-207 bar
• P_H: 800 bar maximum (outlet pressure)
• P_RETURN: As low as possible (Return pressure to tank)
• Intensification ratios: P_H = (P_IN - P_Return) i (Intensification)
• Mounting: Inline tube

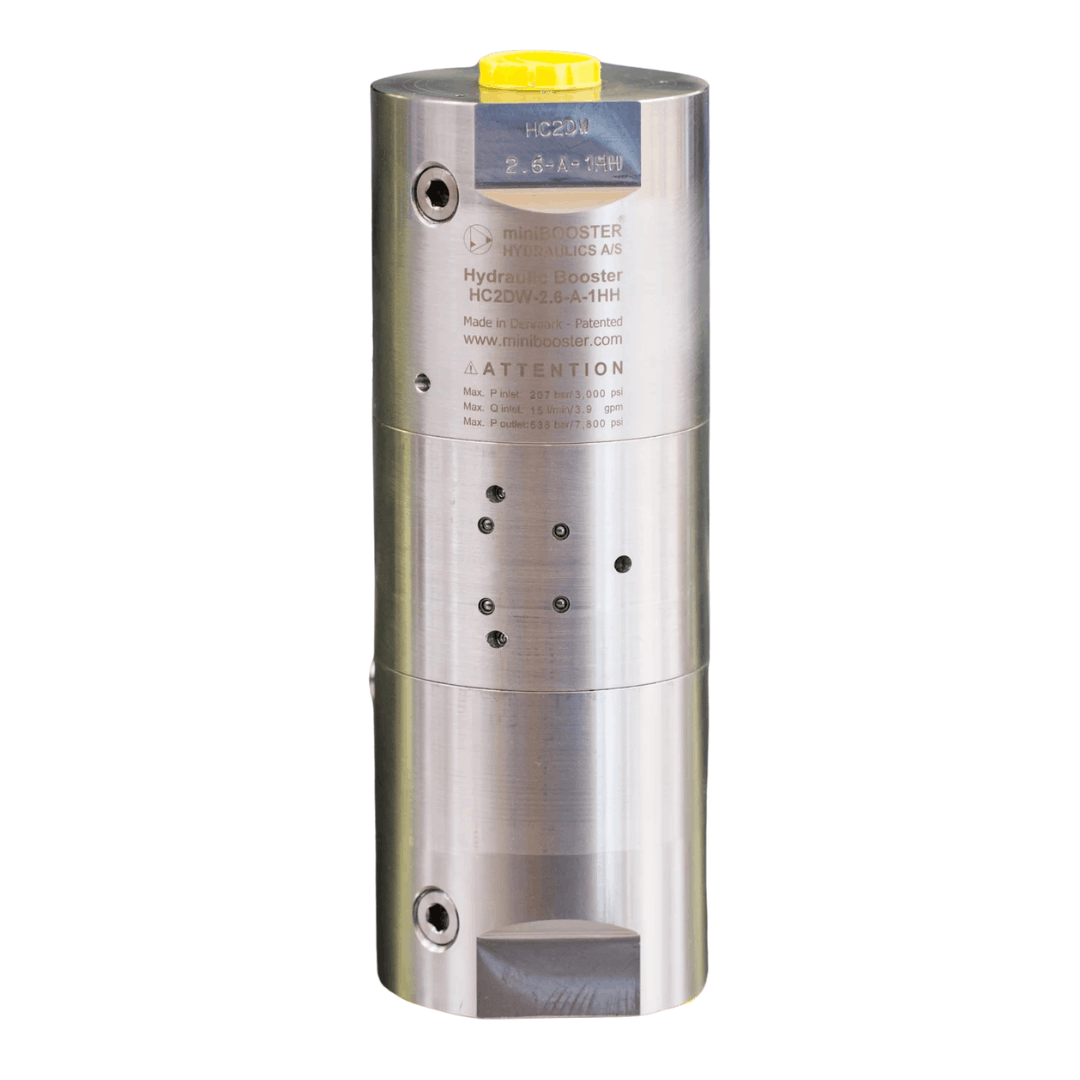

HC2DW: 8 different intensification factors

• P_IN: Inlet pressure 20-207 bar
• P_H: 800 bar maximum (outlet pressure)
• P_RETURN: As low as possible (return pressure to tank)
• P_OUTLET: P_H = (P_IN – P_Return) I (intensification)
• Mounting: Inline tube

HC2DHW versions: 5 different intensification factors

• P_IN: Inlet pressure 20-207 bar
• P_H: 1,380 bar maximum (outlet pressure)
• P_RETURN: As low as possible (return pressure to tank)
• P_OUTLET: P_H = (P_IN – P_Return) I (intensification)
• Mounting: Inline tube

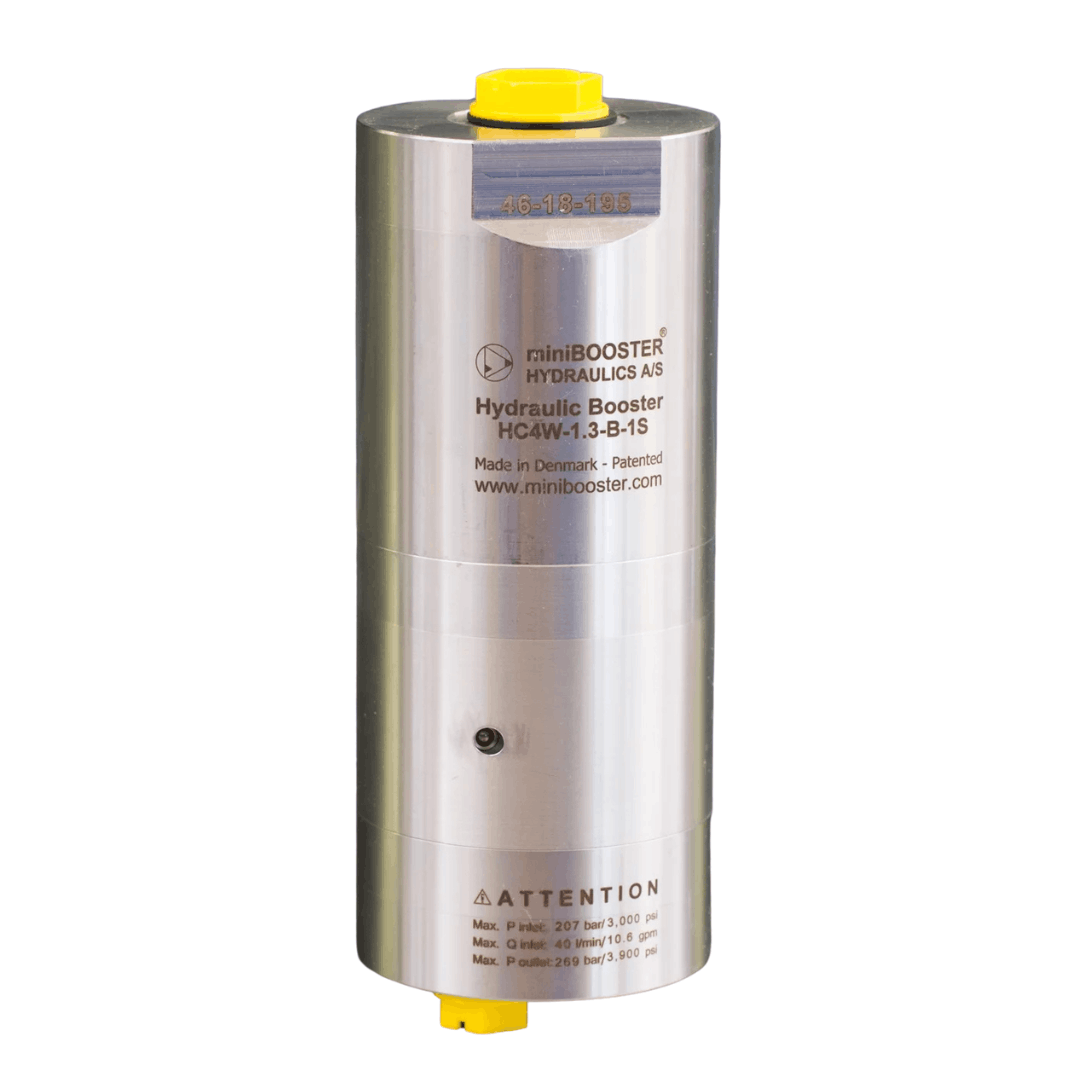

HC4W: 9 different intensification factors

• P_IN: Inlet pressure 20-207 bar
• P_H: 800 bar maximum (outlet pressure)
• P_RETURN: As low as possible (Return pressure to tank)
• Intensification ratios: P_H = (P_IN - P_Return) i (Intensification)
• Mounting: Inline tube

HC6DW: 14 different intensification factors

• P_IN: Inlet pressure 20-207 bar
• P_H: 800 bar maximum (outlet pressure)
• P_RETURN: As low as possible (return pressure to tank)
• P_OUTLET: P_H = (P_IN – P_Return) I (intensification)
• Mounting: Inline tube

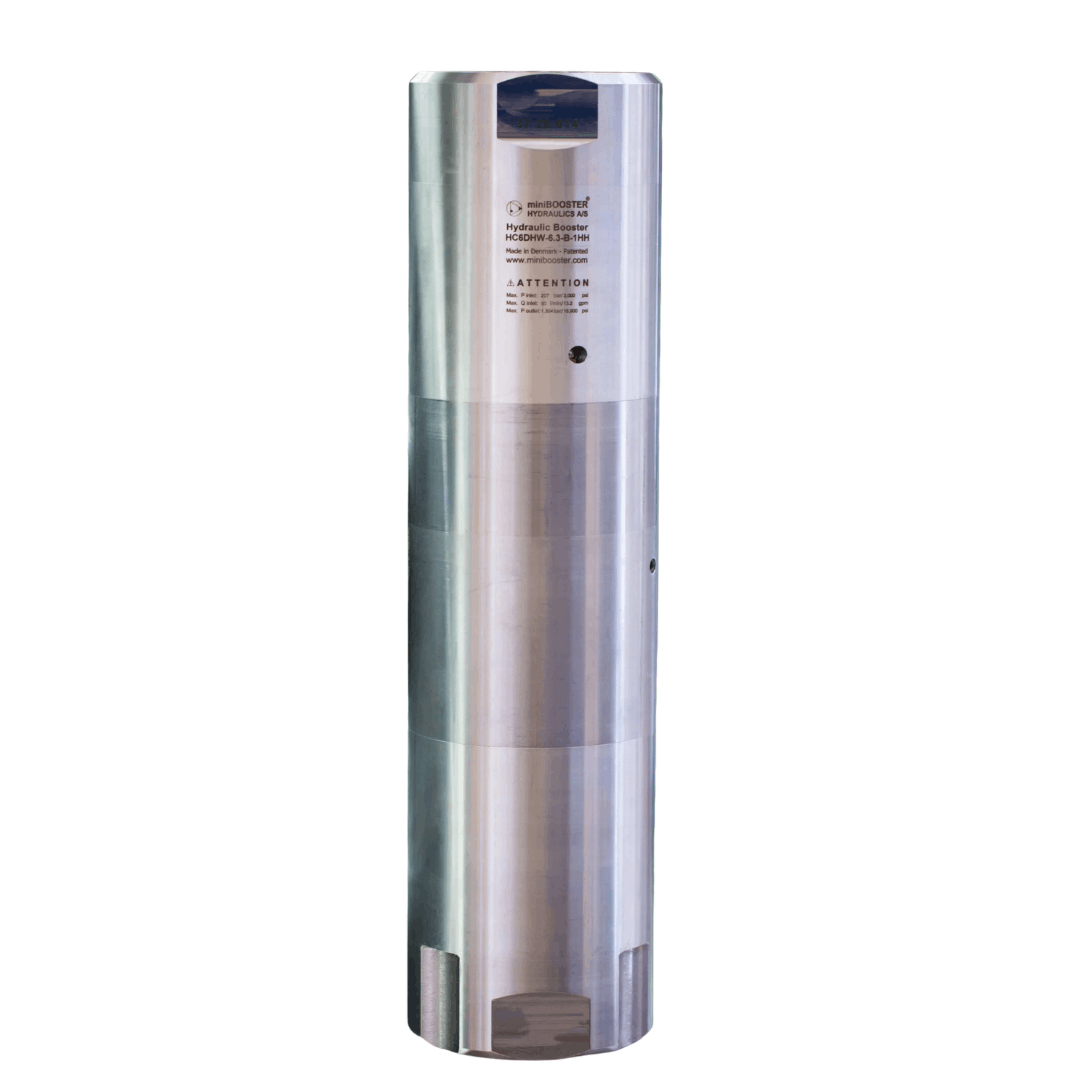

HC6DHW: 7 different intensification factors

• P_IN: Inlet pressure 20-207 bar
• P_H: 1,380 bar maximum (outlet pressure)
• P_RETURN: As low as possible (return pressure to tank)
• P_OUTLET: P_H = (P_IN – P_Return) I (intensification)
• Mounting: Inline tube

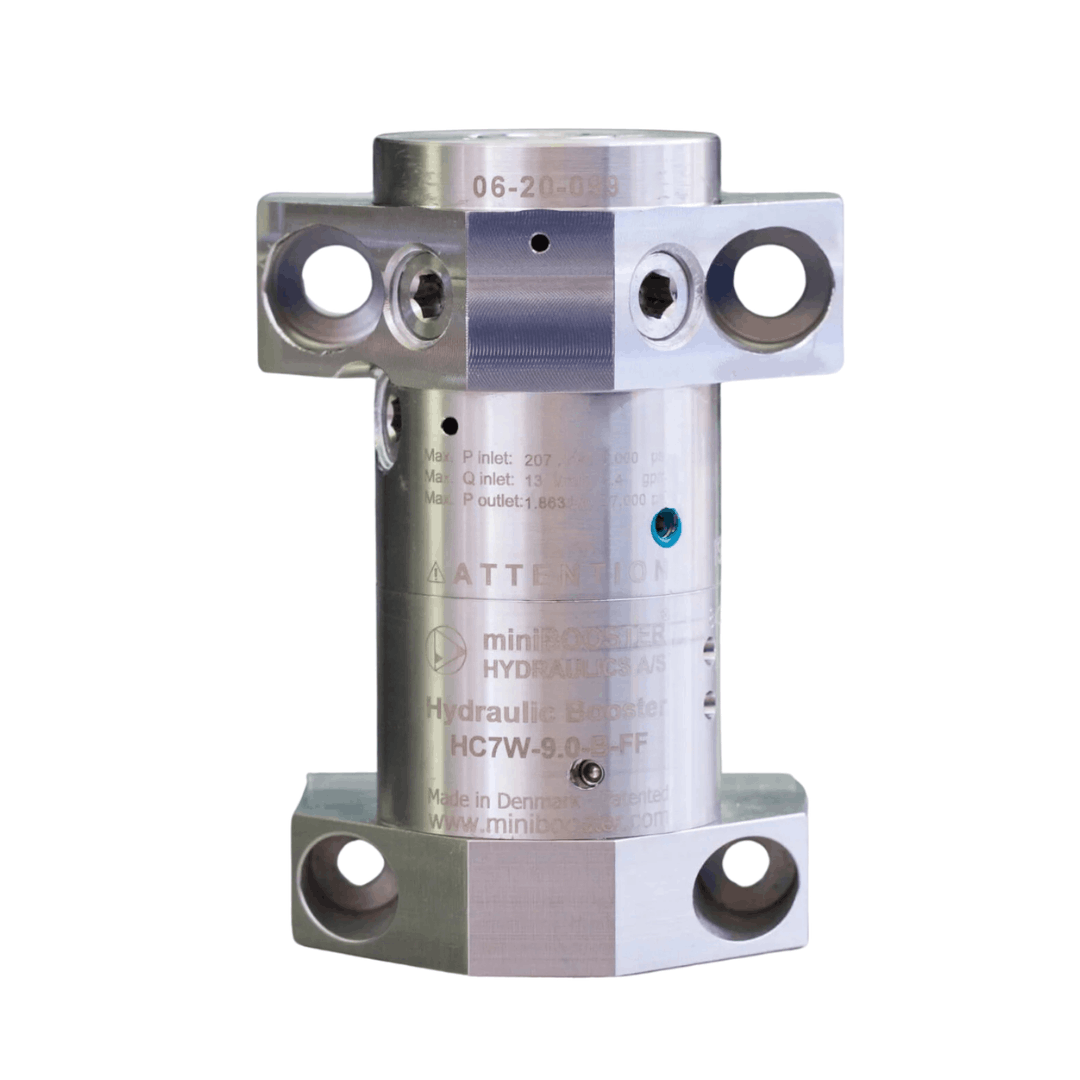

HC7W: 5 different intensification factors

• P_IN: 20 - 207 bar (inlet pressure)
• P_H: 2,000 bar maximum for media > 5 cSt (mm²/s)
• P_H: 1,000 bar maximum for media < 5 cSt (mm²/s)
• P_RETURN: As low as possible (Return pressure to tank)
• Intensification ratios: P_H = (P_IN - P_Return) i (Intensification)
• Mounting: Inline tube

HC8W versions: 5 different intensification factors

• P_IN: Inlet pressure 20-200 bar
• P_H: 2,000 bar maximum (outlet pressure)
• P_RETURN: As low as possible (Return pressure to tank)
• Intensification ratios: P_H = (P_IN - P_Return) i (Intensification)
• Mounting: Inline tube
