Clamp Straps

Carr Lane forged clamp straps are high strength tapped heel clamp straps that are available with either a locator nose or plain radius nose. These clamp straps have a tapped heel that accepts an adjustable rear support, such as a Stud levelling Foot. The items are available to accommodate stud sizes of fit 5/8-11, 3/4-10, and 7/8-9.

• Plain and Locator Noses
• Range of threads and lengths
• Available with Straight Neck or Gooseneck

 Carr Lane replacement pads are offered as a replacement or optional pads for clamp straps. These replacement pads are available in 3 different materials including steel, reinforced plastic and brass.

• Thread - #5-40 - 1/4-20
• Stud Size - 1/4-20 - 1/2-13
• Available in steel, reinforced plastic and brass

Carr Lane double end clamp straps are heavy duty clamp straps with two clamping ends that are identical. Strap can be turned 90° to allow for clear loading. These are available to accommodate stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), each in a range of strap lengths. These clamp straps can be ordered individually or as part of a complete clamp assembly. The assemblies available including assembly with spherical nut & washer, assembly with flange nut, assembly with hand knob & spherical washer, assembly with acorn nut & spherical washer, assembly with bar knob & spherical washer and assembly with cam handle & spherical washer.

• Straps and six different types of assembly
• Metric and Imperial sizes available
• Thread - 1/4-20 - 3/4-10 or M6 - M20

Carr Lane double-end gooseneck clamp straps have two identical clamping ends, for holding two workpieces simultaneously. Strap turned 90º to allow for clear loading. These clamps are available in one clamp size that accommodates stud sizes 1/2-13 and 5/8-11 (M12 and M16 in metric). This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are assembly with spherical nut & washer, assembly with flange nut and assembly with acorn nut & spherical washer.

• Straps and four types of assembly
• Metric and imperial sizes available
• Thread -  1/2-13 and 5/8-11 or M12 and M16

Heavy-duty clamp strap that swings 90° out of the way for clear loading

Carr Lane Tapped-Heel Padded Clamp Straps include a replaceable clamping pad secured with two screws. They also fit to custom pads or other attachments. The straps are available to accommodate stud sizes ranging from 1/4-20 to 1/2-13, with various strap length options. Each side has a tapped hole at the rear for installing a Finger Pin. This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are assembly with hex-head clamping screw, assembly with hand-knob clamping screw, assembly with levelling foot and assembly with clamp rest.

Mini-size stainless steel version of our Tapped-Heel Clamp Straps. Extra-wide nose can be used to distribute clamping force evenly, or to clamp two parts simultaneously. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot. These are available in one size, to fit 1/4-20 studs

Carr Lane tapped-heel miniature clamp straps with a radius nose to provide firm workpiece contact. These clamp straps are available to accommodate stud sizes #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot.

Carr Lane Tapped-Heel Clamp Straps feature a radius nose for secure workpiece contact. These clamp straps are designed with a tapped heel that accommodates a clamping screw or adjustable rear support. To clamp using the clamping screw, simply tighten the screw. To clamp with the rear support, tighten the centre nut. Available to accommodate stud sizes ranging from #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot.

• Available in Steel and Stainless Steel
• Metric and Imperial sizes
• Range of threads and threads

The Slotted-Heel Clamp Strap includes a replaceable clamping pad secured with two screws. The padded straps also accommodate custom pads or other attachments. These straps feature a slot underneath, enabling them to slide back easily for straightforward loading. Additionally, each side has a tapped hole at the rear for installing a Finger Pin. These available to accommodate stud sizes ranging from1/4-20 to 1/2-13 (M6 to M12 in metric), each in a choice of strap lengths. This clamp strap can be ordered individually or in a complete clamp assembly. The available assemblies are assembly with spherical nut & washer, assembly with flange nut, assembly with hand knob & spherical washer, assembly with acorn nut & spherical washer, assembly with bar knob & spherical washer and assembly with cam handle & spherical washer.

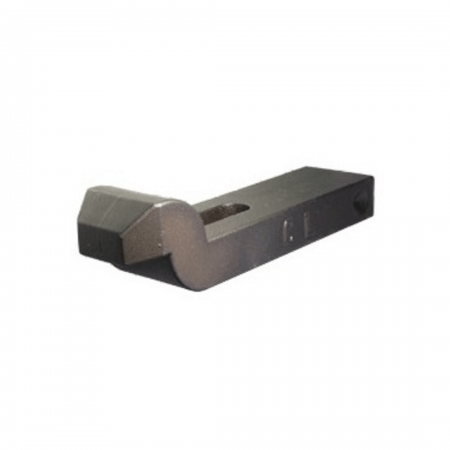

Carr Lane Slotted-Heel Gooseneck Clamp Straps are engineered to recess the clamping nut, offering a compact overall profile. These clamp straps feature a slot underneath, allowing them to slide straight back for easy loading. Each side has a rear indentation for a secure grip when retracting the clamp. The Slotted-Heel Gooseneck Clamp Straps displayed here are designed for the Standard System MF40 (1/2-13 stud size). They can be assembled into either a low or tall clamp assembly by selecting the appropriate short or long Clamping Studs and Clamp Rests.

• Metric and Imperial sizes available
• Thread - 1/2 or M12
• Length - 4.92 - 5.91

Carr lane miniature stainless steel slotted-heel clamp straps are equipped with a radius nose to provide firm workpiece contact. These clamp straps feature a slot underneath to slide straight back for easy loading. These are available to accommodate stud sizes ranging from #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually or in a complete clamp assembly. The available assemblies are assembly with flange nut, assembly with spherical nut & washer, assembly with knurled knob and assembly with knurled knob & spherical washer.

• Thread - #10-32 - 3/8-16
• Length - 1-1/2 - 4
• Internal Diameter - 21/32 - 1-13/16
• Available with four assembly options to chose from
