Rest Buttons & Pads

The precision height locator features a tightly fitting shank, designed for installation in a reamed hole. Rest buttons serve as versatile supports, side locator pads, and jig feet. They are offered in head diameters ranging from 3/8" to 1-1/4" (10mm to 20mm in metric), with various height options available. These rest buttons are available in both steel and stainless steel options.

•  Metric and Imperial sizes
• Available in Steel and Stainless steel

The threaded rest button features a hex head and is precision-machined to be .005 to .010" over the nominal height, allowing for finish grinding after installation. Screw rest buttons are ideal for use as supports and jig feet. They are available in thread sizes ranging from 1/4-20 to 1/2-13 (M6 to M12 in metric), with various height options to choose from.

• Thread: 1/4-20 - 1/2-13 or M6 - M12
• Metric and Imperial sizes
• Steel Black Oxide Finish

The precision height locator features a counterbored hole for mounting with a socket-head cap screw (sold separately). Jig Rest Buttons are ideal for use as supports, side locator pads, and jig feet. These buttons can also be stacked to reach greater heights. They are available in outside diameters ranging from 1/2 to 1-1/4", with various height options to choose from.

• Metric and Imperial sizes
• Steel Black Oxide Finish

The precision height locator features a spherical-radius head designed to reduce the contact area with the workpiece. Its close-tolerance shank ensures a secure press-fit installation in a reamed hole. Spherical-radius locator buttons are ideal for use as supports, side locator pads, and jig feet. They are available with head diameters ranging from 3/16" to 3/8".

This precision height locator features a threaded shank for easy installation into a tapped hole. Its cone shape offers a minimal contact area while ensuring a large, stable base. Screw Rest Pads are highly versatile, serving as supports, side locator pads, and jig feet. They are available in thread sizes ranging from 5/16-18 to 5/8-11 (M8 to M16 metric) and come in various support heights up to 2" (50mm metric).

• Thread: 5/16-18 - 5/8-11 or M8 - M16
• Metric and Imperial sizes
• Steel Black Oxide Finish

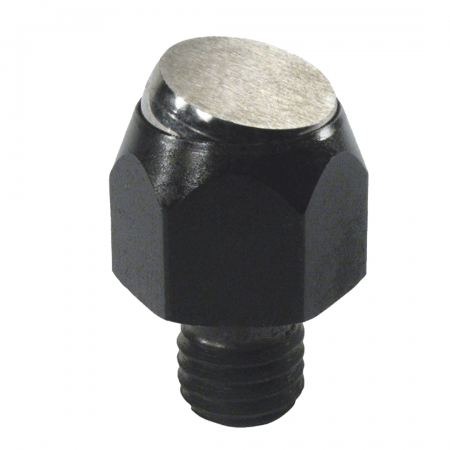

A precision swivel ball that functions as both a contact bolt and a rest pad. When used as contact bolts, these swivel-ball units are perfect for distributing clamping pressure evenly on sloped or uneven surfaces. As rest pads, they are precision-ground on both the top and bottom for precise height positioning, even on sloped surfaces. Featuring a 20° total swivel angle, these are available in thread sizes ranging from 5/16-18 to 5/8-11.

The precision rest pad features a wide contact surface, precisely ground for accurate height positioning. It can be mounted using two socket-head cap screws (not included). Jig Leg Plates serve as versatile supports, side locator pads, and feet for jigs. They are offered in three different sizes.

Large, precision rest pad suited for heavy-duty applications. These hardened pads have a larger and more durable contact surface to support heavier workpieces. These are offered in one size with a square pad, and three sizes with a rectangular pad.

• Square and Rectangular
• Choice of four sizes

A precision side locator that can be securely doweled after adjustment. Ideal for vertical levelling or horizontal positioning. Offered in both hardened and soft versions, allowing for drilling and reaming post-installation. Available in two thickness options: 1/4" and 3/8".

• Available in hardened and soft
• Made from Steel, Black Oxide Finish

This spring-loaded work support features an extra low profile, making it perfect for use in tight, hard-to-reach spaces, with the handle adjustable for easy access. Turning the handle counterclockwise unlocks the plunger, allowing it to float, while turning it clockwise locks the plunger in place. For easier loading of lighter parts, the plunger can be locked in the retracted position before loading. The adjustable handle can be repositioned to any angle for optimal leverage. Manual work supports are offered in three sizes, with options for either inch or metric threaded plungers.

• Imperial and Metric sizes available
• Thread - 5/16-18 - 5/8-11 or M8 - M16
