Mounting Technology

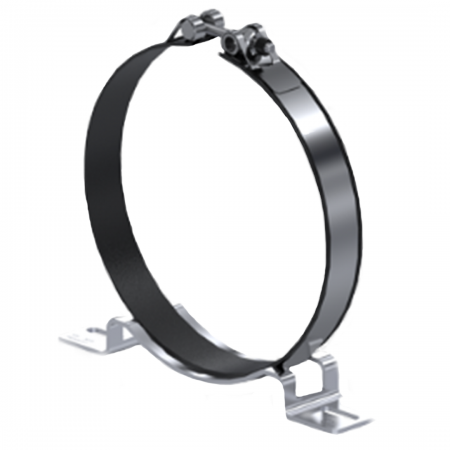

The HYDAC Swivel Bolt Clamps with Quick Release System offer a flexible, secure, and noise-insulated solution for mounting containers of virtually any shape or size. Designed for easy installation even in hard-to-reach areas, these clamps accommodate a wide diameter range and feature customizable supports for optimal fit and function.

Key Features:

• Quick release system enables fast and simple installation
• Flexible steel bands and rubber/PE layers ensure vibration damping and electrostatic insulation
• Broad diameter range (54–619 mm) with options for custom shapes, materials, and supports

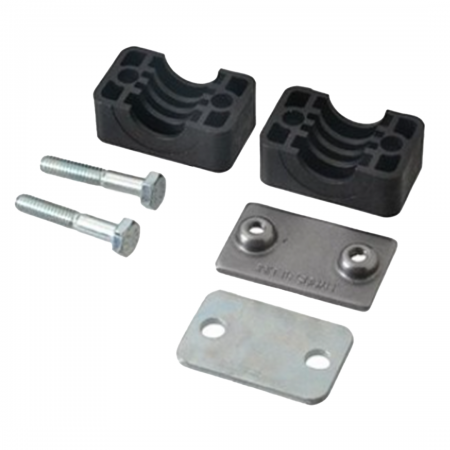

HYDAC Mounting Technology Clamps to DIN 3015 offer a highly versatile and modular solution for securely mounting pipes under both static and dynamic loads. Designed for durability and performance, these clamps provide excellent vibration damping, corrosion resistance, and easy installation across light, heavy, and twin clamp configurations.

Key Features:

• Shock-absorbing and vibration-damping with thermoplastic rubber clamp bodies
• Wide diameter range: 6–406.4 mm depending on clamp type (Light, Heavy, Twin)
• Corrosion-resistant materials and economical bayonet nut assembly system

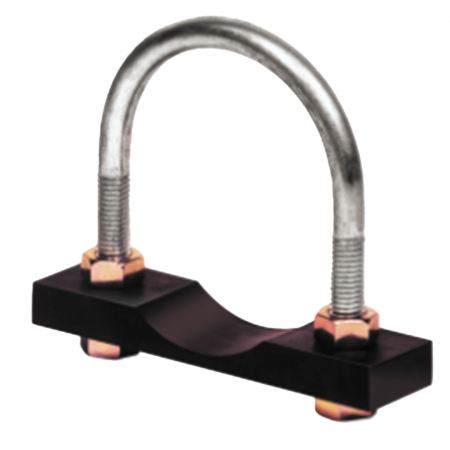

HYDAC Mounting Technology U-bolt Clamps, similar to DIN 3570, provide a reliable and robust solution for securing pipes subject to thermal expansion. Designed for a wide diameter range and available in various materials, they ensure stable pipe fixation in both industrial and commercial applications.

Key Features:

• Diameter range from 17.1 to 762 mm for versatile pipe sizes
• U-bolt materials include zinc-plated steel, A2, and A4 stainless steel
• Optional short and long pipe supports made from PA and PP for tailored installation

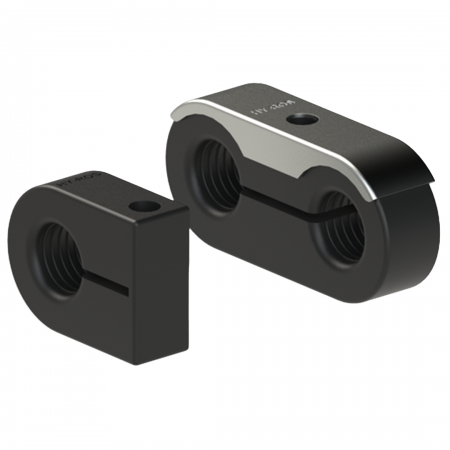

HYDAC Mounting Technology Oval Clamps offer a cost-effective and compact solution for fastening pipes, hoses, and cables in tight spaces. With simple and dual versions available, they enable quick installation and secure clamping even in demanding environments.

Key Features:

• Clamping range from 6 to 25.4 mm in sizes 0a–4
• Made from PP and PA with temperature resistance from -40°C to +140°C
• Space-saving design with fast assembly and film-hinged clamp halves

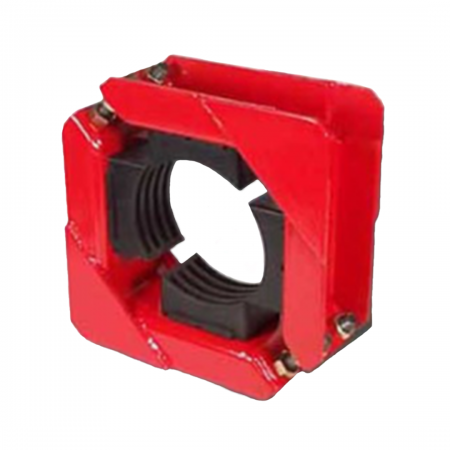

HYDAC Mounting Technology Diagonal Clamps are specially designed for securely fastening dynamically loaded pipelines. With a robust design and support for large diameters, these clamps ensure reliable performance in demanding industrial environments.

Key Features:

• Suitable for pipe diameters from 170 to 840 mm across 10 sizes
• Ideal for high-vibration, dynamic load applications
• Heavy-duty construction ensures secure and long-lasting fixation

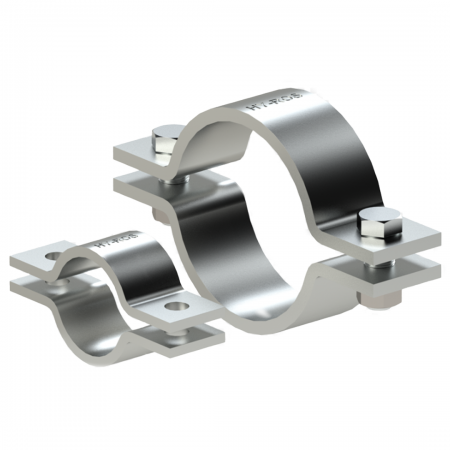

HYDAC Mounting Technology Flat Steel Bolt Clamps to DIN 3567 are built for secure and durable pipe fixation in non-hydraulic pipeline systems. Designed to withstand high temperatures, these clamps are ideal for industrial environments requiring reliable support and stability.

Key Features:

• Diameter range from 25 to 500 mm
• Suitable for applications up to +300°C
• Designed for general-purpose pipeline systems beyond hydraulics

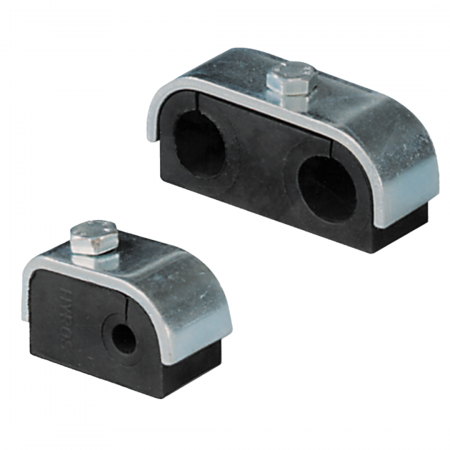

HYDAC Mounting Technology Clamps with Rubber Body provide protective, low-vibration fastening for pipes, hoses, cables, and sensors. Engineered with durable rubber elements, they ensure a long-lasting, noise-dampening hold even in demanding environments.

Key Features:

• Vibration and noise dampening with thermoplastic elastomer clamping bodies
• Available in single and double versions for diameters from 6 to 60.5 mm
• Twist-proof design allows stacking and rail mounting for space-efficient installation

HYDAC HY-ROS Mounting Technology offers a universal and flexible solution for securing components quickly, safely, and reliably across a wide range of industrial applications. Designed for versatility, HY-ROS ensures fast installation and stable mounting in virtually any environment.

Key Features:

• Quick and secure fastening for diverse components and systems
• Flexible mounting solutions adaptable to various installation needs
• Engineered for safety, speed, and long-term reliability in all environments
