Tie Rod Cylinders There are 14 products.

Tie rod single rod cylinder CDT3...Z-3X

• Series T3
• Component series 3X
• Nominal pressure 160 bar
• Piston Ø 25 … 200 mm
• Piston rod Ø 12 … 140 mm
• Stroke length up to 3000 mm

Tie rod single rod cylinder CD70

• Component series 1X
• Nominal pressure 70 bar
• Piston Ø 25 up to 200 mm
• Piston rod Ø 12 up to 140 mm
• Maximum stroke length 3000 mm

Tie rod single rod cylinder CD210

• Component series 1X
• Nominal pressure 210 bar [21 MPa]
• 16 types of mounting
• Piston Ø 40 up to 200 mm
• Piston rod Ø 16 up to 140 mm
• Maximum stroke length 3000 mm
• Hydraulic fluid temperature range: –20 °C to +80 °C

Tie rod single rod cylinder CDT1

• Component series 1X
• Nominal pressure up to max. 1500 psi
• Piston Ø 1.50 up to 8.00 inch
• Piston rod Ø 0.625 up to 5.50 inch
• Maximum stroke length 120 inch

Tie rod single rod cylinder CDT4

• Component series 1X
• Nominal pressure up to max. 3000 psi
• Piston Ø 1.50 up to 8.00 inch
• Piston rod Ø 0.63 up to 5.50 inch
• Maximum stroke length 120 inch

Tie rod double rod cylinder CGT3...Z-3X

• Series T3
• Component series 3X
• Nominal pressure 160 bar
• Piston Ø 25 … 200 mm
• Piston rod Ø 12 … 140 mm
• Stroke length up to 3000 mm

Tie rod double rod cylinder CG70

• Component series 1X
• Nominal pressure 70 bar
• Piston Ø 25 up to 200 mm
• Piston rod Ø 12 up to 140 mm
• Maximum stroke length 3000 mm

Tie rod double rod cylinder CG210

• Component series 1X
• Nominal pressure 210 bar
• Piston Ø 40 up to 200 mm
• Piston rod Ø 16 up to 140 mm
• Maximum stroke length 3000 mm

Tie rod double rod cylinder CGT1

• Component series 1X
• Nominal pressure up to max. 1500 psi
• Piston Ø 1.00 up to 8.00 inch
• Piston rod Ø 0.50 up to 5.50 inch
• Maximum stroke length 120 inch

Tie rod double rod cylinder CGT4

• Component series 1X
• Nominal pressure up to max. 3000 psi
• Piston Ø 1.50 up to 8.00 inch
• Piston rod Ø 0.63 up to 5.50 inch
• Maximum stroke length 120 inch

Tie rod single rod cylinder with position measurement system CST3

• Component series 3X
• Nominal pressure 160 bar
• Piston Ø 40 up to 200 mm
• Piston rod Ø 28 up to 140 mm
• Maximum stroke length 3000 mm

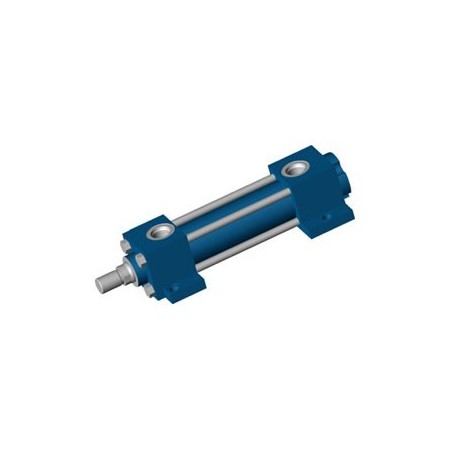

Tie rod single rod cylinder with position measurement system CST4

• Component series 1X
• Nominal pressure up to max. 3000 psi
• Piston Ø 1.50 up to 6.00 inch
• Piston rod Ø 1.00 up to 4.00 inch
• Maximum stroke length 60 inch
