Fluid Service Products

The HYDAC OF 5 is a stationary fluid conditioning unit designed for bypass flow filtration. It is ideal for filling, repumping, and emptying hydraulic and lubrication systems — whether filtered or unfiltered. Suitable for use across various industries, it enhances system cleanliness and reliability

Key Features:

• Flow rate: max. 30 l/min / 40 l/min
• Operating pressure: 4.5 bar
• Convenient filtration in bypass flow

Testing and analysis systems include:

• Instruments for detecting the water content of fluids
• Testing and analysis equipment for detecting solid particle
• contaminants in fluids
• Sampling systems
• Services and accessories
• Component analysis systems

HYQUIP offers a comprehensive range of easy-to-use HYDAC measurement and analysis equipment for this purpose. It is ideal for dealing with solid particle or liquid contaminants, no matter whether sporadic checks or a permanent installation is required, whether in the laboratory or in the field.

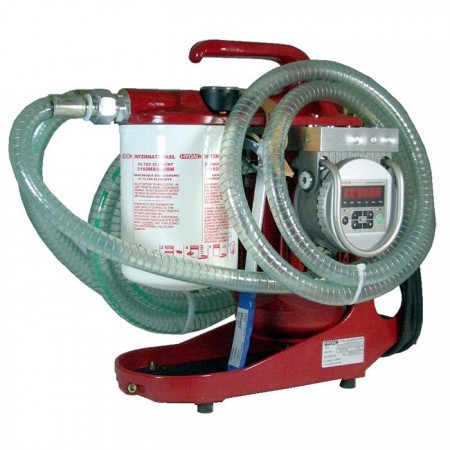

The OF 7 is a portable filtration unit for filling, flushing, and bypass cleaning of hydraulic systems. Optional integration of the CS 1000 sensor enables real-time monitoring of fluid cleanliness according to ISO, SAE, and NAS standards.

Key Features:

• Filter fineness: 3 µm to 20 µm
• Flow rate: OF7S 15 l/min - OF7K/OF7CM 10 l/min
• Operating pressure: 3.5 bar max.

The HYDAC FluidControl Unit FCU 2000 Series is a portable, high-precision particle counter designed for monitoring contamination levels in hydraulic and lubrication systems. With infrared measurement technology and multi-standard cleanliness reporting, it ensures reliable diagnostics for maintenance and system health checks.

Key Features:

• Measures contamination levels in accordance with ISO 4406, SAE 4059, and NAS 1638 standards
• Wide flow range (50–800 ml/min) and robust construction for demanding environments
• Total flow rate: 50 ... 800 ml/min (depending on the pressure)

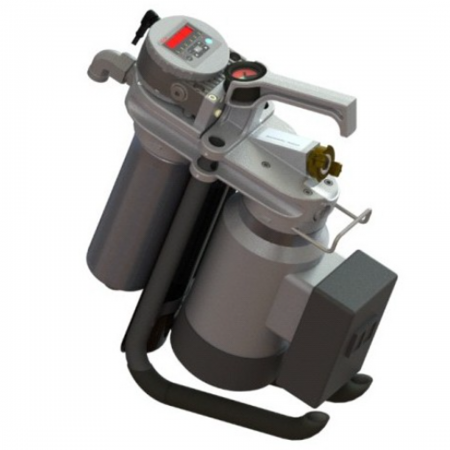

• Maximum flow rate:
  -MFU-E / MFU-S: 15 l/min
  -MFU-P: 10 l/min
• Pump type: Vane pump
• Maximum operating pressure: 4.0 bar

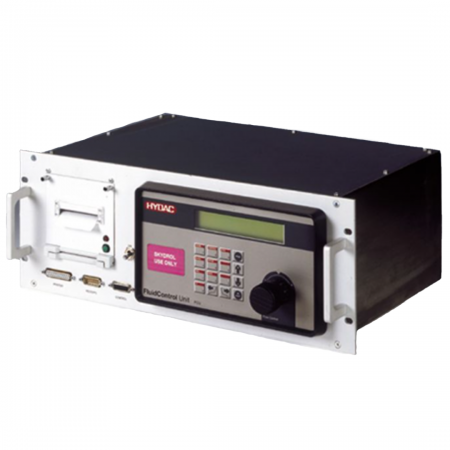

The HYDAC FCU 2000 Series 19" Fluid Control Unit is a panel-mounted particle counter designed to monitor contamination levels in hydraulic and lubrication systems. Utilizing infrared technology, it provides precise cleanliness readings in accordance with ISO 4406, SAE 4059, and NAS 1638 standards, with easy data output via display or PC connection.

Key Features:

• Accurate particle contamination measurement using infrared technology
• Real-time data output with integrated graphics-capable printer and PC interface (RS232/RS485)
• Robust design with total flow rates from 50 to 800 ml/min (pressure-dependent)

The HYDAC FCU 8000 Series Fluid Control Unit is a portable laser particle counter designed for accurate contamination monitoring in hydraulic and lubrication systems. Ideal for field use, laboratories, and service centers, it offers high-precision measurement and data evaluation with easy handling and comprehensive connectivity.

Key Features:

• Wide viscosity range compatibility: 5–800 mm²/s with ISO, SAE, and NAS cleanliness standards
• Integrated printer and RS232 interface for on-site data output and storage
• Versatile use for field service, lab analysis, and oil sample investigations

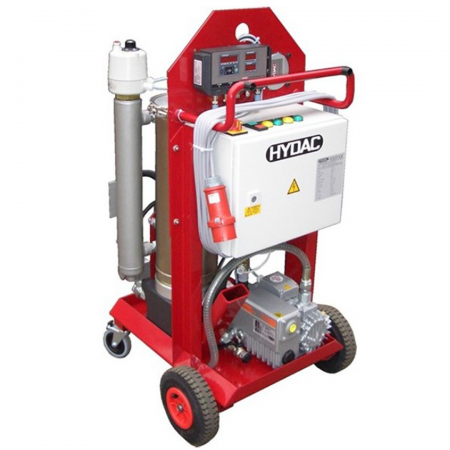

The HYDAC FluidAqua Mobil FAM 5 is a compact, mobile unit designed for efficient dewatering, degassing, and filtration of hydraulic and lubrication fluids. With a flow rate of 5 l/min and optional integrated measurement and heating systems, it ensures optimal fluid conditioning even in demanding environments. Ideal for both service operations and fixed installations, the FAM 5 helps extend oil life, reduce maintenance costs, and improve overall system reliability.

Key Features:

• Flow rate at 50 Hz: 5 l/min
• Operating pressure: 0 … 8 bar
• Voltage: 415v

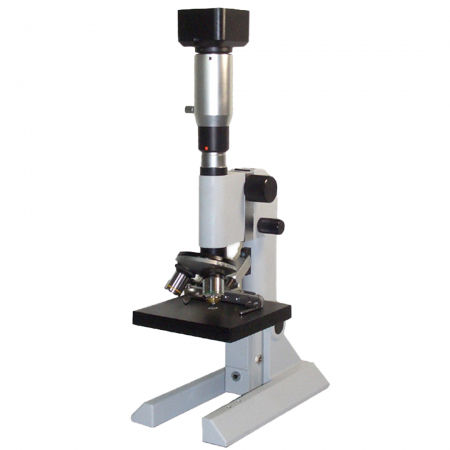

The HYDAC Measuring Microscope MM-S5-M/M and M-S5-M-U is a robust and user-friendly optical microscope designed for precise particle analysis on filter membranes, particularly in oil sample inspections. Ideal for laboratory and on-site use, it offers high-resolution magnification and stable performance, ensuring accurate measurement and easy operation.

Key Features:

• Clear Imaging: Achromatic lenses and 10x eyepiece for 40x–200x magnification
• Easy Adjustment: Coarse/fine focus and LED illumination for sharp viewing
• Complete Kit: Includes USB camera, software, and transport case

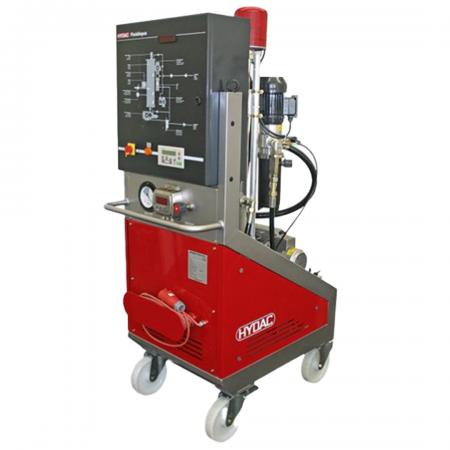

The units of the FluidAqua Mobil FAM 10 series work in accordance with the principle of vacuum dewatering for the separation of free and released water and of free and dissolved gases from hydraulic and lubrication fluids.

Key Features:

• Viscosity range: 15 ... 800 mm²/s
• Flow rates at 50 Hz ≈ 10 l/min (FAM-10), ≈ 15 l/min (FAM-10/15)
• Flow rates at 60 Hz ≈ 12 l/min (FAM-10), ≈ 18 l/min (FAM-10/15)

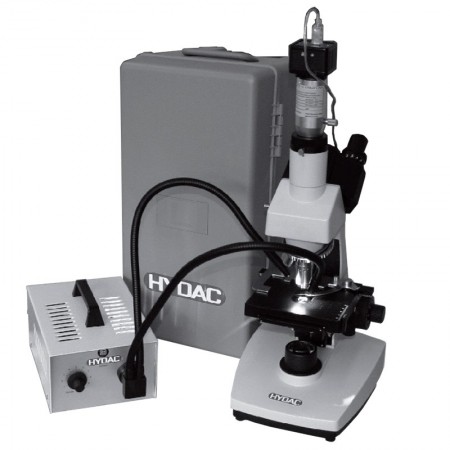

The HYDAC MM-KKE-M-C-U is a precision measuring microscope designed for accurate inspection and measurement of particles on filter membranes, particularly from oil samples. Built for both laboratory and onsite use, it features a robust design, micrometre accuracy, and integrated USB camera for digital documentation.

Key Features:

• Precise focus and bright LED lighting
• Up to 200x magnification with achromatic lenses
• Includes USB camera, software, and case

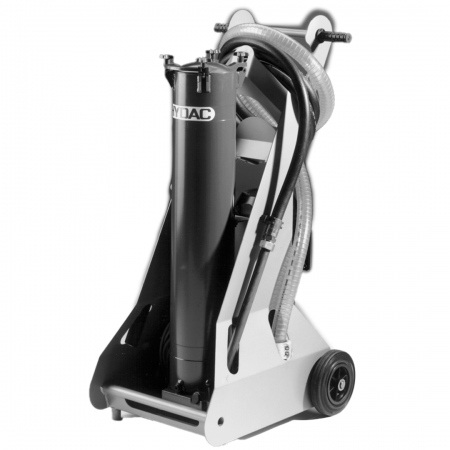

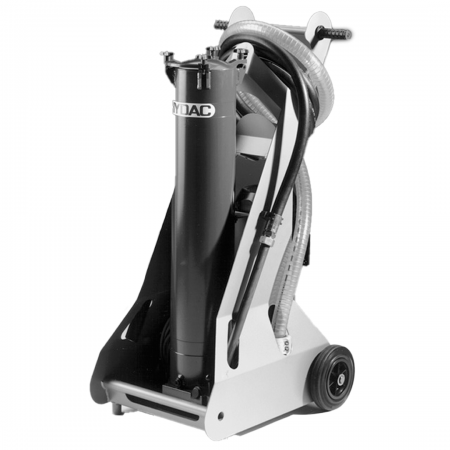

The Hydac FluidCleaner Mobil FCM series is a mobile oil service unit and is used for offline filtration

• Max. flow rate: FCM 60 = 60 l/min FCM 100 = 100 l/min (others on request)
• Version: Vane or Gear pump versions available
