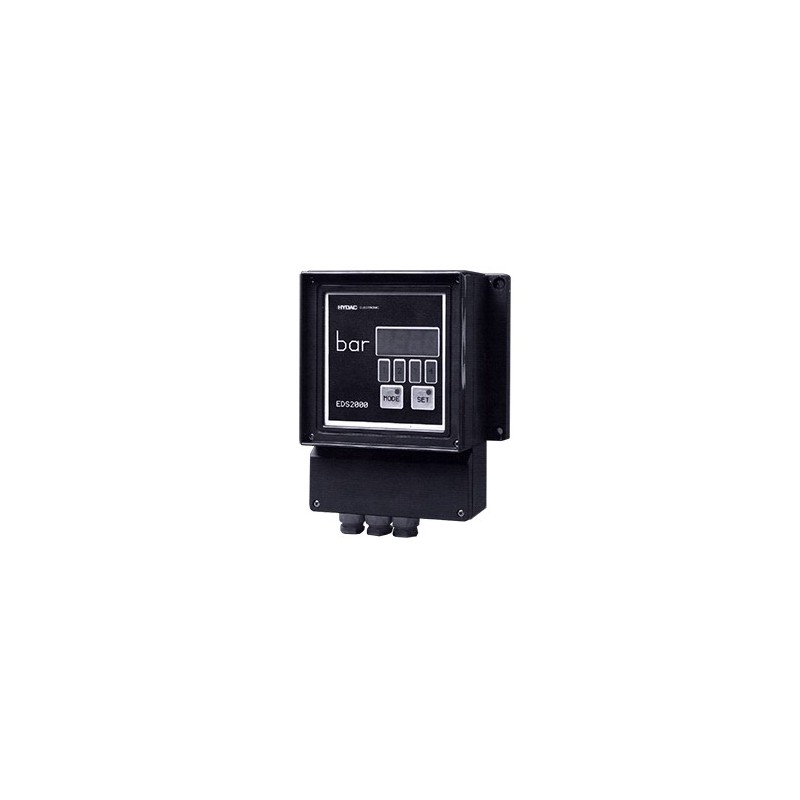

Hydac Intelligent Electronic Pressure Switch EDS 2000

Hydac Intelligent Electronic Pressure Switch Type EDS 2000

• The EDS 2000 housing is made of ABS plastic and is to safety type IP 65
• The connection cables are attached via PG 11 glands
• Differential pressure measurement possible

Features:

• Accuracy class 0.5
• 4-digit display4 switching points with relay output(cross-over contact)
• Switch-on and switch-off point infinitely adjustable as required, apart from a small hysteresis
• Analogue output 0 ... +5 V
• Menu driven programming using only 2 keys
• Programmable switch-on and switch-off delay to suppress pressure peaks
• Relay functions individually programmable on or off
• Programme disable facility
• Two peak pressure memories, one of which can be re-set as a measuring device
• Comprehensive safety function incorporated
• IP 65 housing with separate terminal box

General Function:

The EDS 2000 is a four-channel pressure switch with display and microprocessor control.
The use of the microprocessor enables greater flexibility with regard to adapting the unit to individual applications and, more importantly for a pressure switch, a greater level of operating safety.
