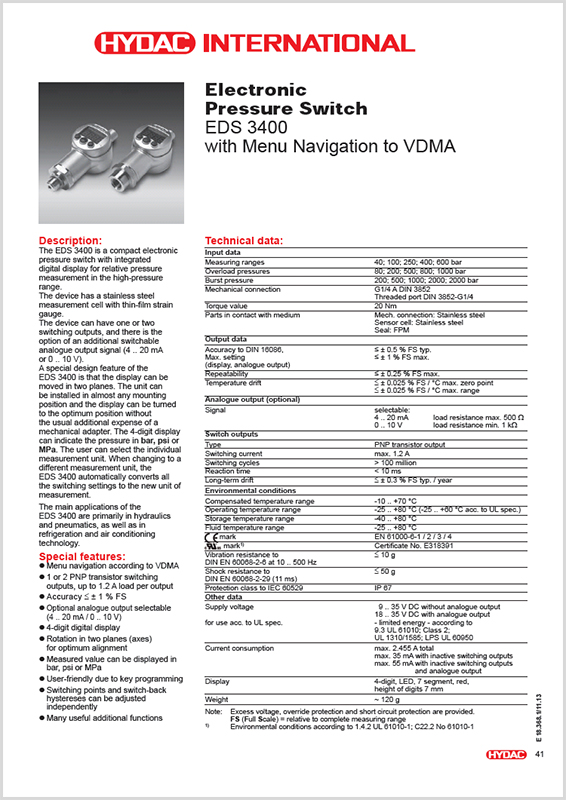

Hydac Electronic Pressure Switch EDS 3400 - with Menu Navigation to VDMA

Hydac Electronic Pressure Switch Type EDS 3400 - with Menu Navigation to VDMA

• Compensated temperature range -10 .. +70 °C
• Operating temperature range -25 .. +80 °C (-25 .. +60 °C acc. to UL spec.)
• Storage temperature range -40 .. +80 °C
• Fluid temperature range -25 .. +80 °C

Features:

• Menu navigation according to VDMA
• 1 or 2 PNP transistor switching outputs, up to 1.2 A load per output
• Accuracy ≤ ± 1 % FS
• Optional analogue output selectable (4 .. 20 mA / 0 .. 10 V)
• 4-digit display
• Optimum alignment - can be rotated in two planes (axes)
• Many useful additional functions
• Measured value can be displayed in bar, psi or MPa
• Easy operation due to key programming
• Switching points and switch-back hystereses can be adjusted independently

General Function:

The EDS 3400 is a compact, electronic pressure switch with an integral digital display for measuring relative pressure in the high pressure range.
The instrument has a stainless steel measurement cell with thin-film strain gauge. The instrument can have one or two switching outputs, and there is the option of an additional analogue output signal (4 .. 20 mA or 0 .. 10 V)
A special feature of the EDS 3400 is the option of rotating the display in 2 axes. The device can be optimally aligned in practically any random installation position, which means that additional costs for the mechanical alignment adapter which is usually required are dispensed with.
