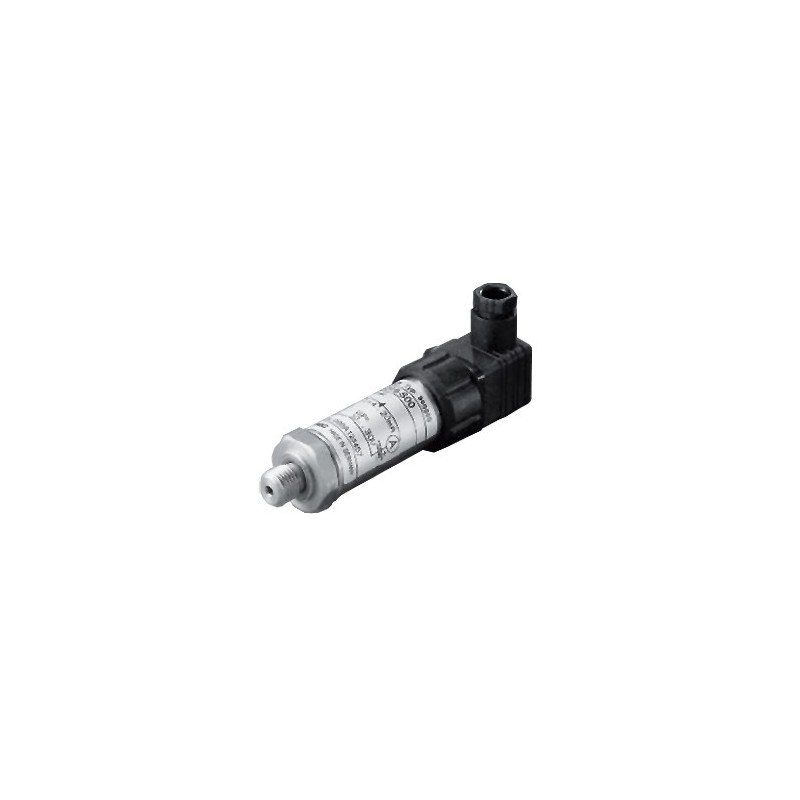

Hydac Electronic Pressure Transmitter for Shipbuilding and Offshore HDA 3400

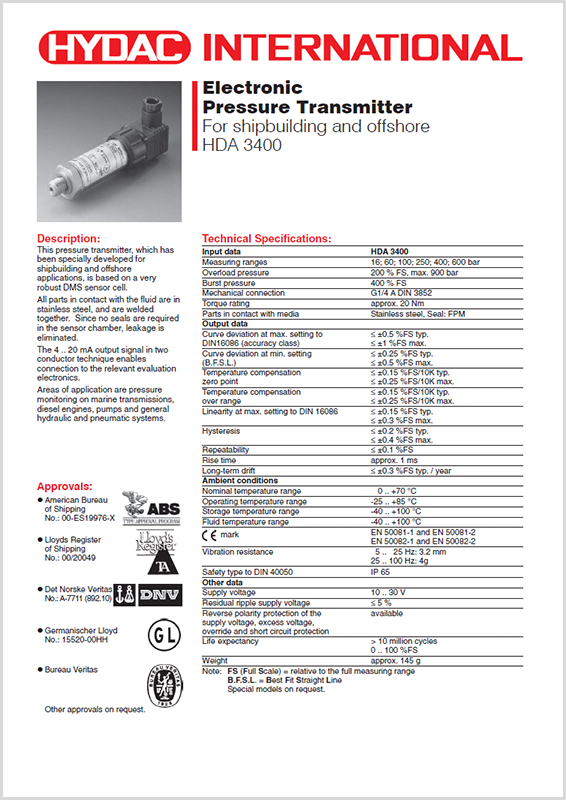

Hydac Electronic Pressure Transmitter for Shipbuilding and Offshore Type HDA 3400

• Measuring ranges: 16; 60; 100; 250; 400; 600 bar
• Overload pressure: 200 % FS, max. 900 bar
• Burst pressure: 400 % FS
• Mechanical connection: G1/4 A DIN 3852
• Electrical connection: 2-conductor technique 4 .. 20 mA
• Torque rating: approx. 20 Nm

Approvals:

• American Bureau of Shipping No.: 00-ES19976-X
• Lloyds Register of Shipping No.: 00/20049
• Det Norske Veritas No.: A-7711 (892.10)
• Germanischer Lloyd No.: 15520-00HH
• Bureau Veritas
• Other approvals on request

General Function:

This pressure transmitter, which has been specially developed for shipbuilding and offshore applications, is based on a very robust DMS sensor cell

Areas of application are pressure monitoring on marine transmissions, diesel engines, pumps and general hydraulic and pneumatic systems
