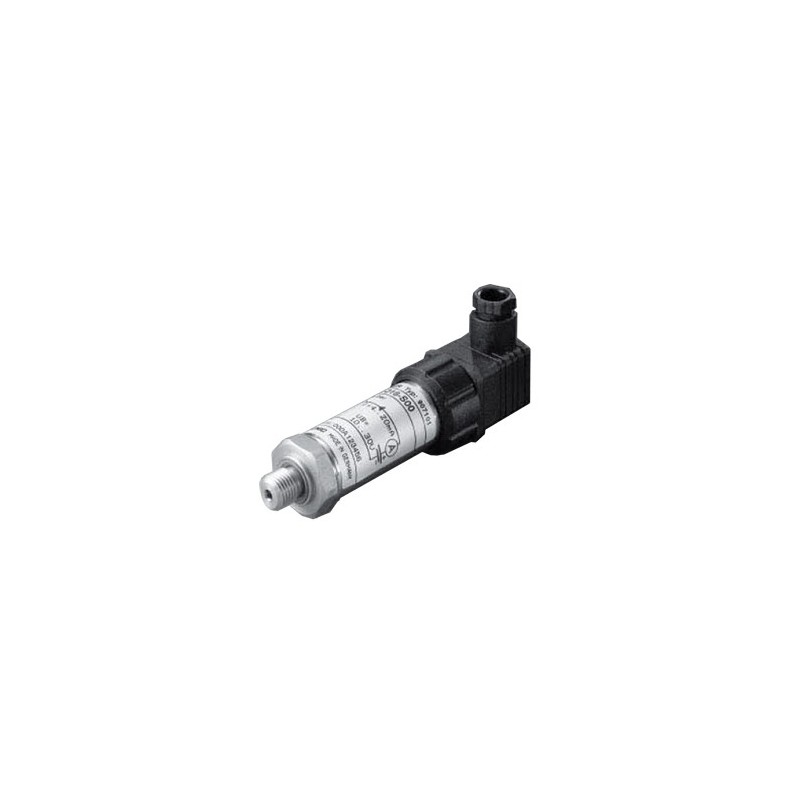

Hydac Electronic Pressure Transmitter for Shipbuilding and Offshore HDA 3700

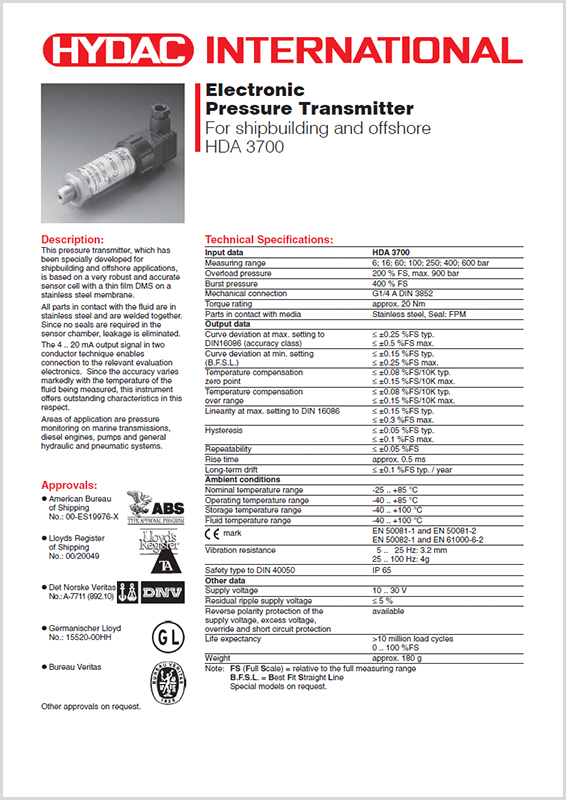

Hydac Electronic Pressure Transmitter for Shipbuilding and Offshore Type HDA 3700

• Measuring range: 6; 16; 60; 100; 250; 400; 600 bar
• Overload pressure: 200 % FS, max. 900 bar
• Burst pressure: 400 % FS
• Mechanical connection: G1/4 A DIN 3852
• Torque rating: approx. 20 Nm
• Parts in contact with media: Stainless steel, Seal: FPM

Areas of application:

• Pressure monitoring on marine transmissions, diesel engines, pumps and general hydraulic and pneumatic systems

Approvals:

• American Bureau of Shipping
  No.: 00-ES19976-X
• Lloyds Register of Shipping
  No.: 00/20049
• Det Norske Veritas
  No.: A-7711 (892.10)
• Germanischer Lloyd
  No.: 15520-00HH
• Bureau Veritas
• Other approvals on request

General Function:

This pressure transmitter, which has been specially developed for shipbuilding and offshore applications, is based on a very robust and accurate sensor cell with a thin film DMS on a stainless steel membrane.
All parts in contact with the fluid are instainless steel and are welded together. Since no seals are required in the sensor chamber, leakage is eliminated.
The 4 .. 20 mA output signal in two conductor technique enables connection to the relevant evaluation electronics. Since the accuracy varies markedly with the temperature of the fluid being measured, this instrument offers outstanding characteristics in this respect
