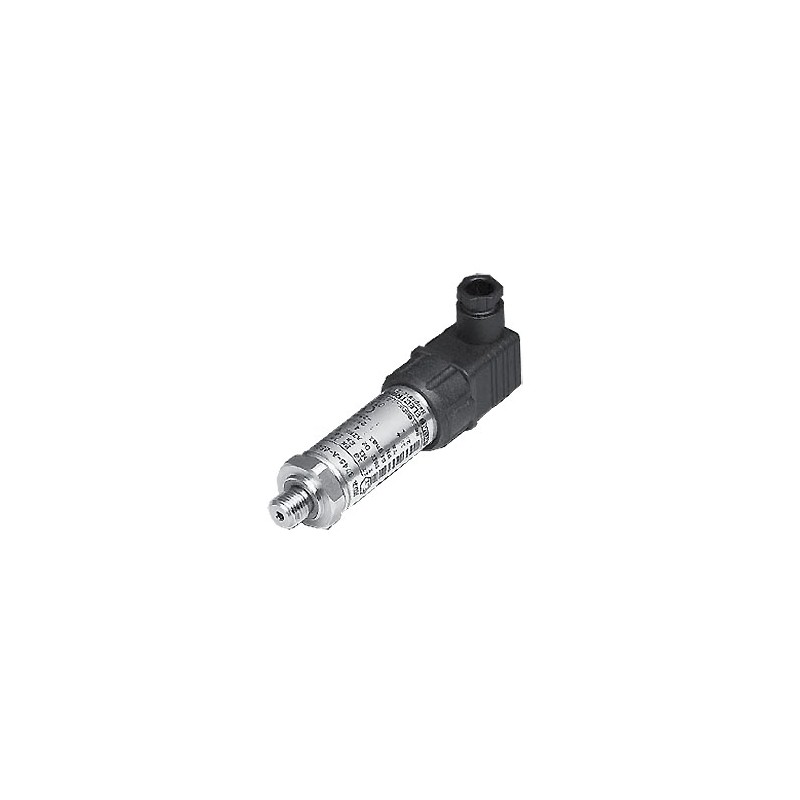

Hydac Electronic Pressure Transmitter Type HDA 3700 ATEX Version

Hydac Electronic Pressure Transmitter Type HDA 3700 ATEX Version

• Measuring ranges: 6, 16, 60, 100, 250, 400, 600 bar
• Overload pressures: 15, 32, 200, 200, 400, 800, 900 bar
• Burst pressures: 100, 200, 500, 500, 1000, 2000, 2000 bar
• Mechanical connection: G1/4 A DIN 3852
• Torque rating: approx. 20 Nm
• Parts in contact with media: Stainless steel 1.4542, FPM seal

Special Features

• Accuracy ≤±0.25 %FS typically
  Optionally ≤±0.15 %FS
• Certificate number:
  02 ATEX E 257 X
• Output signal 4 .. 20 mA
• Very low temperature error
• Excellent EMC characteristics
• Good long term stability

Protection classes and applications:

• I M1 EEx ia I
• II 1G EEx ia IIC T6
• II 1/2 G EEx ia IIC T6

General Function:

For pressure measurement in potentially explosive locations, the pressure transmitter series HDA 3700 is also available in a version for intrinsically safe circuits.
Like the industrial version of the HDA 3700, the ATEX version is also based on a very accurate and robust pressure sensor. With an accuracy level of typically ≤± 0.25% FS and outstanding data in relation to temperature effect, this series of instruments is very well suited to use in potentially explosive atmospheres
