Hydac Pressure Transmitter Type HDA 3800

Hydac Pressure Transmitter HDA 3800

Pressure transmitters type HDA 3800

  • Measuring ranges: 6, 16, 60, 100, 250, 400, 600 bar
  • Overload pressures: 15, 32, 200, 400, 800, 900 bar
  • Burst pressures: 100, 200, 500, 1000, 2000 bar

Print page

Description
Downloads

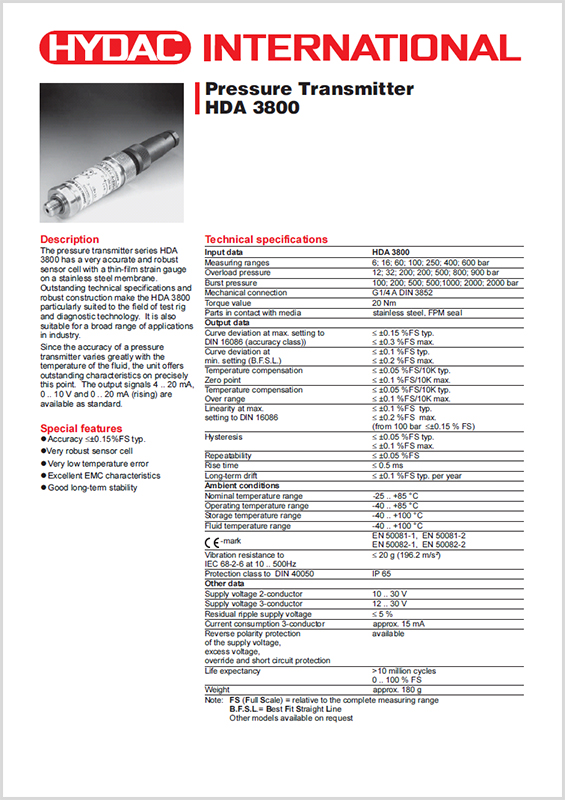

e18311-0-09-03
e18311-0-09-03

Hydac Pressure Transmitter Type HDA 3800

  • Measuring ranges: 6, 16, 60, 100, 250, 400, 600 bar
  • Overload pressures: 15, 32, 200, 400, 800, 900 bar
  • Burst pressures: 100, 200, 500, 1000, 2000 bar
  • Mechanical connection: G1/4 A DIN 3852
  • Torque rating: approx. 20 Nm
  • Parts in contact with media: Stainless steel 1.4542, FPM seal

Special features:

  • Accuracy ±0.15% FS type
  • Very robust sensor cell
  • Very low temperature errors
  • Outstanding EMC properties
  • Excellent long-term stability

General Function:

The Pressure Series HDA 3800 has a very accurate and robust sensor cell with a thin-film strain gauge on a stainless steel membrane

Outstanding technical specifications and robust construction make the HDA 3800 particularly suited to the field of test rig and diagnostic technology. It is also suitable for a broad range of applications in industry

Since the accuracy of a pressure transmitter varies greatly with the tempareture of the fluid, the unit offers outstanding characteristics on precisely this point
