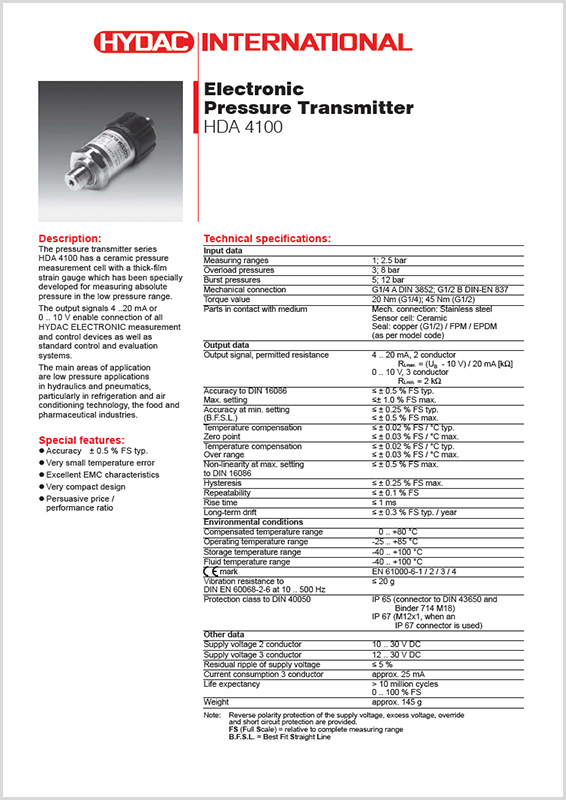

Hydac Electronic Pressure Transmitter HDA 4100 for Low Pressure Applications
Electronic pressure transmitter HDA 4100 for low pressure applications has a ceramic pressure measurement cell with a thick-film strain gauge which has been specially developed for measuring absolute pressure in the low pressure range.
Description
Downloads
Hydac Electronic Pressure Transmitter HDA 4100 for Low Pressure Applications
The pressure transmitter series HDA 4100 has a ceramic pressure measurement cell with a thick-film strain gauge which has been specially developed for measuring absolute pressure in the low pressure range.
The output signals 4 ..20 mA or 0 .. 10 V enable connection of all HYDAC ELECTRONIC measurement and control devices as well as standard control and evaluation systems.
The main areas of application are low pressure applications in hydraulics and pneumatics, particularly in refrigeration and air conditioning technology, the food and pharmaceutical industries.
Special features:
- Accuracy ± 0.5 % FS typ.
- Very small temperature error.
- Excellent EMC characteristics.
- Very compact design.
- Persuasive price /
performance ratio
