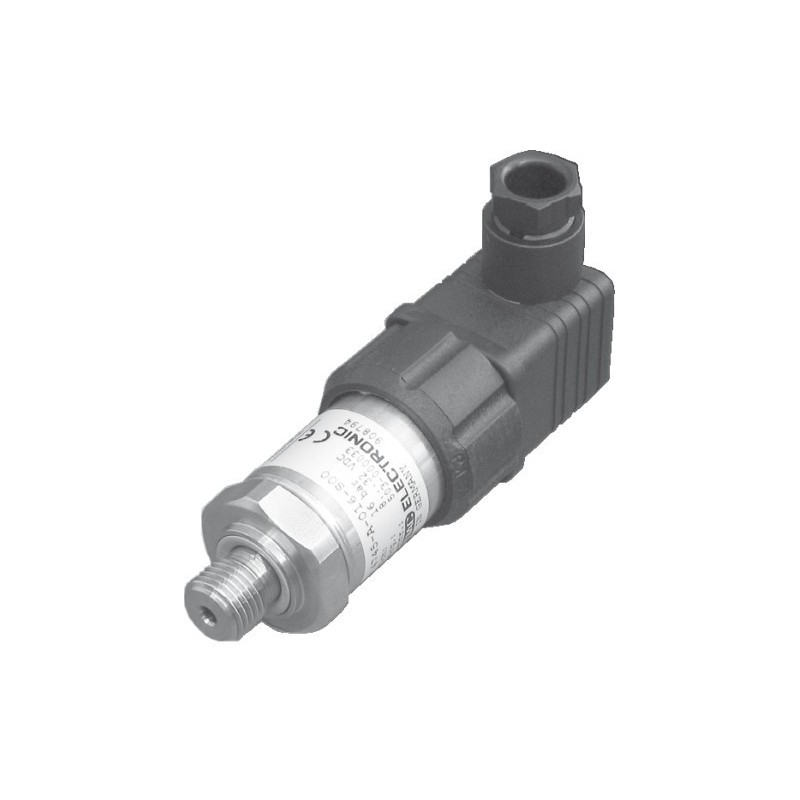

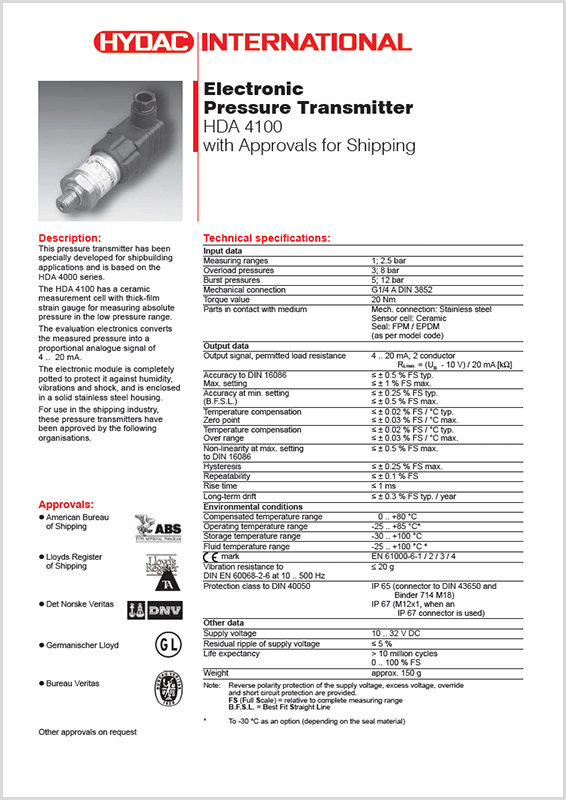

Hydac Pressure Electronic Transmitter HDA 4100 with Approvals for Shipping
Pressure electronic transmitter HDA 4100 has been specially developed for shipbuilding applications and is based on the HDA 4000 series.
Hydac Pressure Electronic Transmitter HDA 4100 with Approvals for Shipping
This pressure transmitter has been specially developed for shipbuilding applications and is based on the HDA 4000 series.
The HDA 4100 has a ceramic measurement cell with thick-film strain gauge for measuring absolute pressure in the low pressure range.
The evaluation electronics converts the measured pressure into a proportional analogue signal of 4 .. 20 mA.
The electronic module is completely potted to protect it against humidity, vibrations and shock, and is enclosed in a solid stainless steel housing.
For use in the shipping industry, these pressure transmitters have been approved by the following organisations.
Approvals:
- American Bureau of Shipping.
- Lloyds Register of Shipping.
- Det Norske Veritas.
- Germanischer Lloyd.
- Bureau Veritas.
- Other approvals on request
