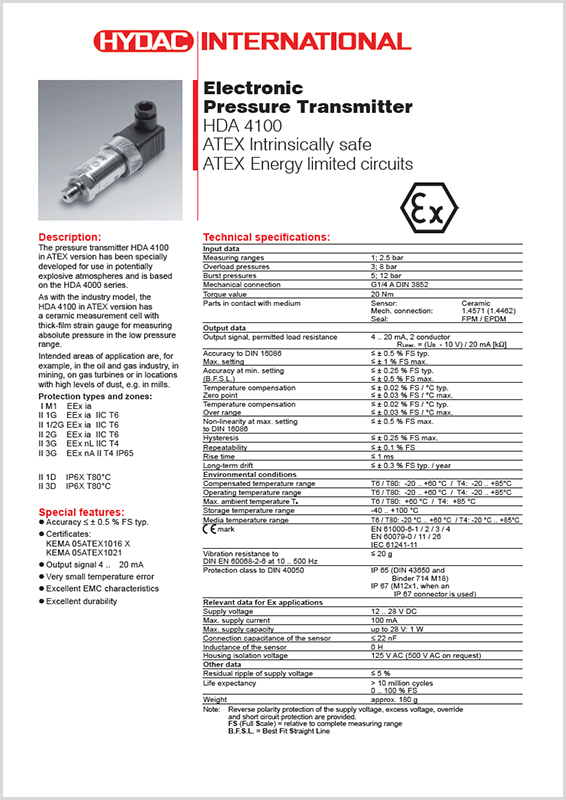

Hydac Electronic Pressure Transmitter HDA 4100 - ATEX Intrinsically safe - ATEX Energy limited circuits

Hydac Electronic Pressure Transmitter HDA 4100 - ATEX Intrinsically safe - ATEX Energy limited circuits

The pressure transmitter HDA 4100 in ATEX version has been specially developed for use in potentially explosive atmospheres and is based on the HDA 4000 series.

As with the industry model, the HDA 4100 in ATEX version has a ceramic measurement cell with thick-film strain gauge for measuring absolute pressure in the low pressure range.

Intended areas of application are, for example, in the oil and gas industry, in mining, on gas turbines or in locations with high levels of dust, e.g. in mills.

Protection types and zones:

I M1 EEx ia
II 1G EEx ia IIC T6
II 1/2G EEx ia IIC T6
II 2G EEx ia IIC T6
II 3G EEx nL IIC T4
II 3G EEx nA II T4 IP65

II 1D IP6X T80°C
II 3D IP6X T80°C

Special features:

• Accuracy ≤ ± 0.5 % FS typ.
• Certificates:
  KEMA 05ATEX1016 X
  KEMA 05ATEX1021
• Output signal 4 .. 20 mA
• Very small temperature error.
• Excellent EMC characteristics.
• Excellent durability.
