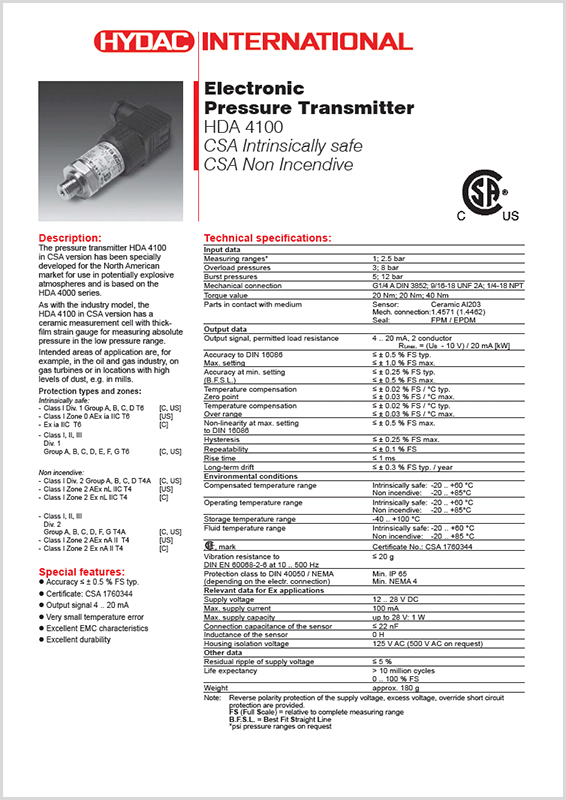

Hydac Electronic Pressure Transmitter HDA 4100 - CSA Intrinsically Safe - CSA Non Incendive

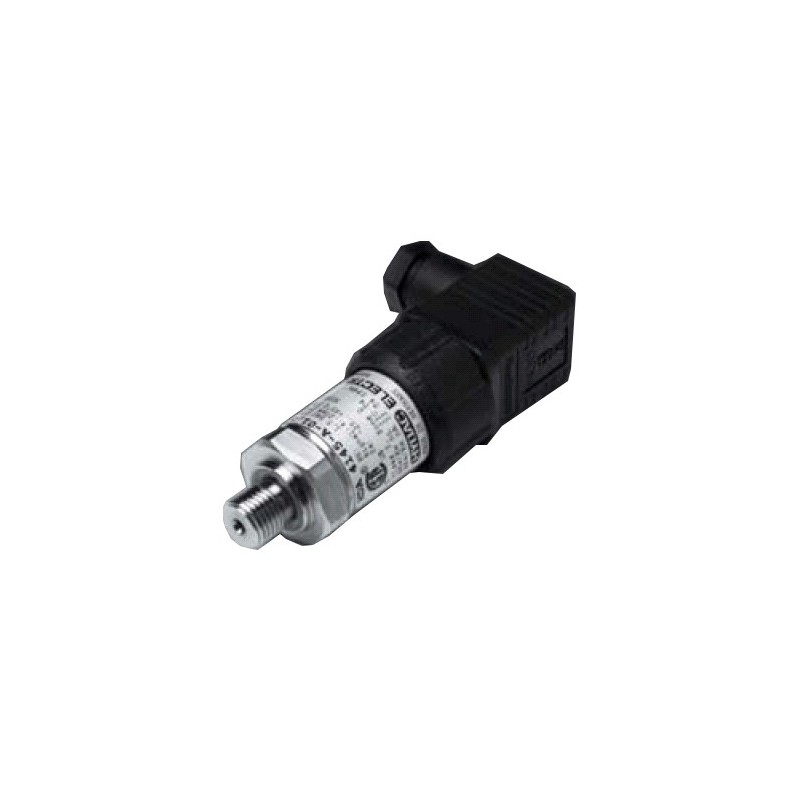

The pressure transmitter HDA 4100 in CSA version has been specially developed for the North American market for use in potentially explosive atmospheres and is based on the HDA 4000 series
Hydac Electronic Pressure Transmitter HDA 4100 - CSA Intrinsically Safe - CSA Non Incendive
The pressure transmitter HDA 4100 in CSA version has been specially developed for the North American market for use in potentially explosive atmospheres and is based on the HDA 4000 series.
As with the industry model, the HDA 4100 in CSA version has a ceramic measurement cell with thick-film strain gauge for measuring absolute pressure in the low pressure range.
Intended areas of application are, for example, in the oil and gas industry, on gas turbines or in locations with high levels of dust, e.g. in mills.
Special features:
- Accuracy ≤ ± 0.5 % FS typ
- Certificate: CSA 1760344
- Output signal 4 .. 20 mA
- Very small temperature error
- Excellent EMC characteristics
- Excellent durability
