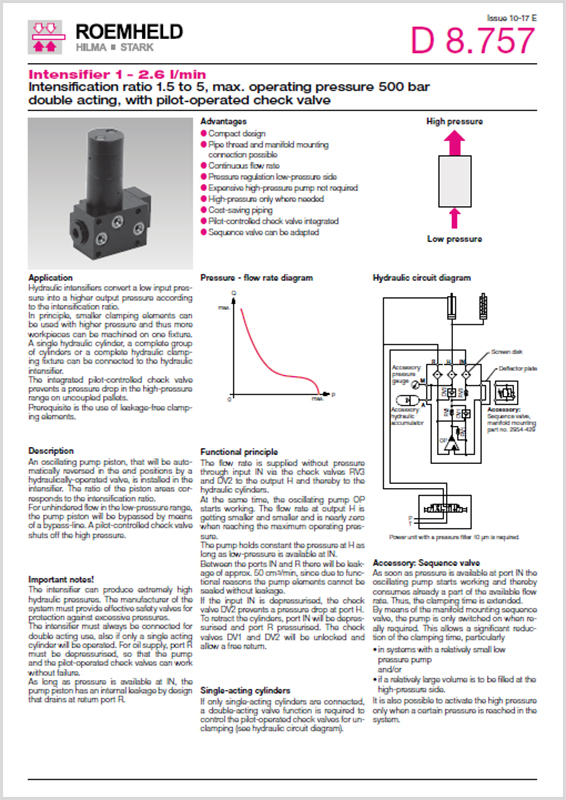

Intensifer with Pilot-operated Check Valve

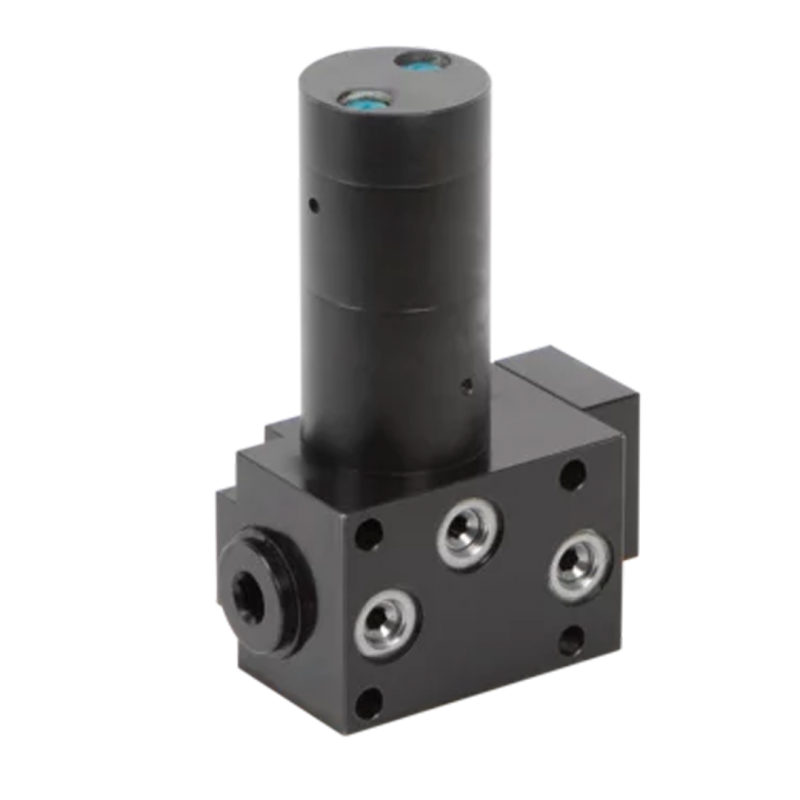

Intensifer with Pilot-operated Check Valve - ROEMHELD D8.757

• Intensification ratio 1.5 to 5
• Intensification ratio: 1:1.5 - 5.0
• Max. flow rate: 8 - 15 l/min (low-pressure side)
• Max. operating pressure 100 - 200 bar (low-pressure side)

Advantages:

• Compact design
• Pipe thread and manifold mounting connection possible
• Continuous flow rate
• Pressure regulation low-pressure side
• Expensive high-pressure pump not required
• High-pressure only where needed
• Cost-saving piping
• Pilot-controlled check valve integrated
• Sequence valve can be adapted
