Position Flexible Clamping Claw with Optional Position Monitoring
ROEMHELD B1.733 Position Flexible Clamping Claw double acting, separate locking port, with optional position monitoring, max. operating pressure 250 bar
OBSOLETE ITEM - CONTACT HYQUIP
- Operating pressure 250 bar maximum
- Maximum clamping force is 7.5 kN
- Maximum retention force is 10 kN
- Pendulum range: ±4 mm

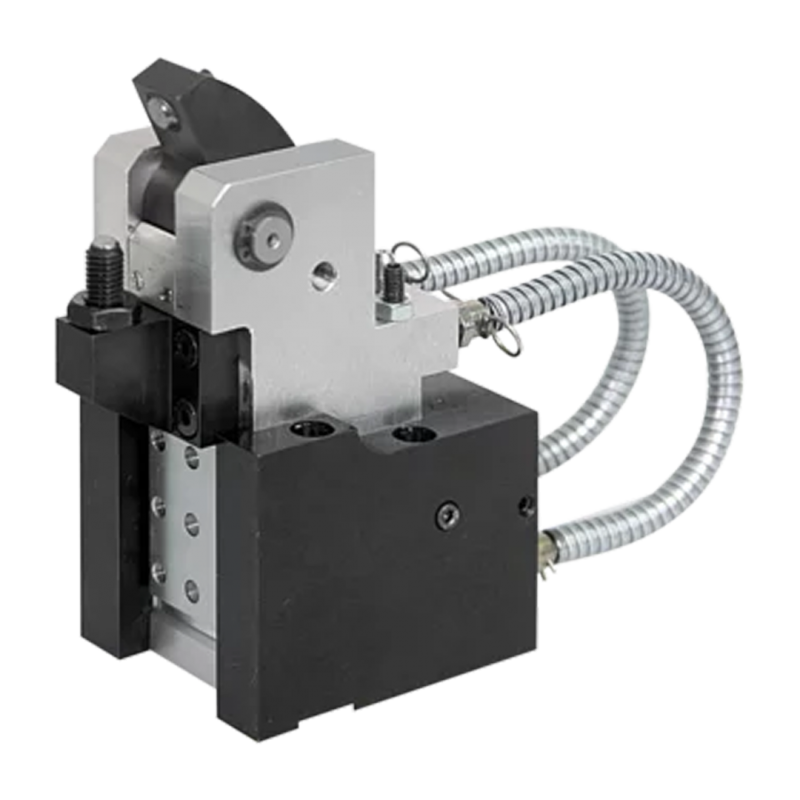

The position flexible clamping claw consists of an U-shaped mounting body and the displacably embedded clamping unit with oil supply by two short high-pressure hoses with swarf protection.

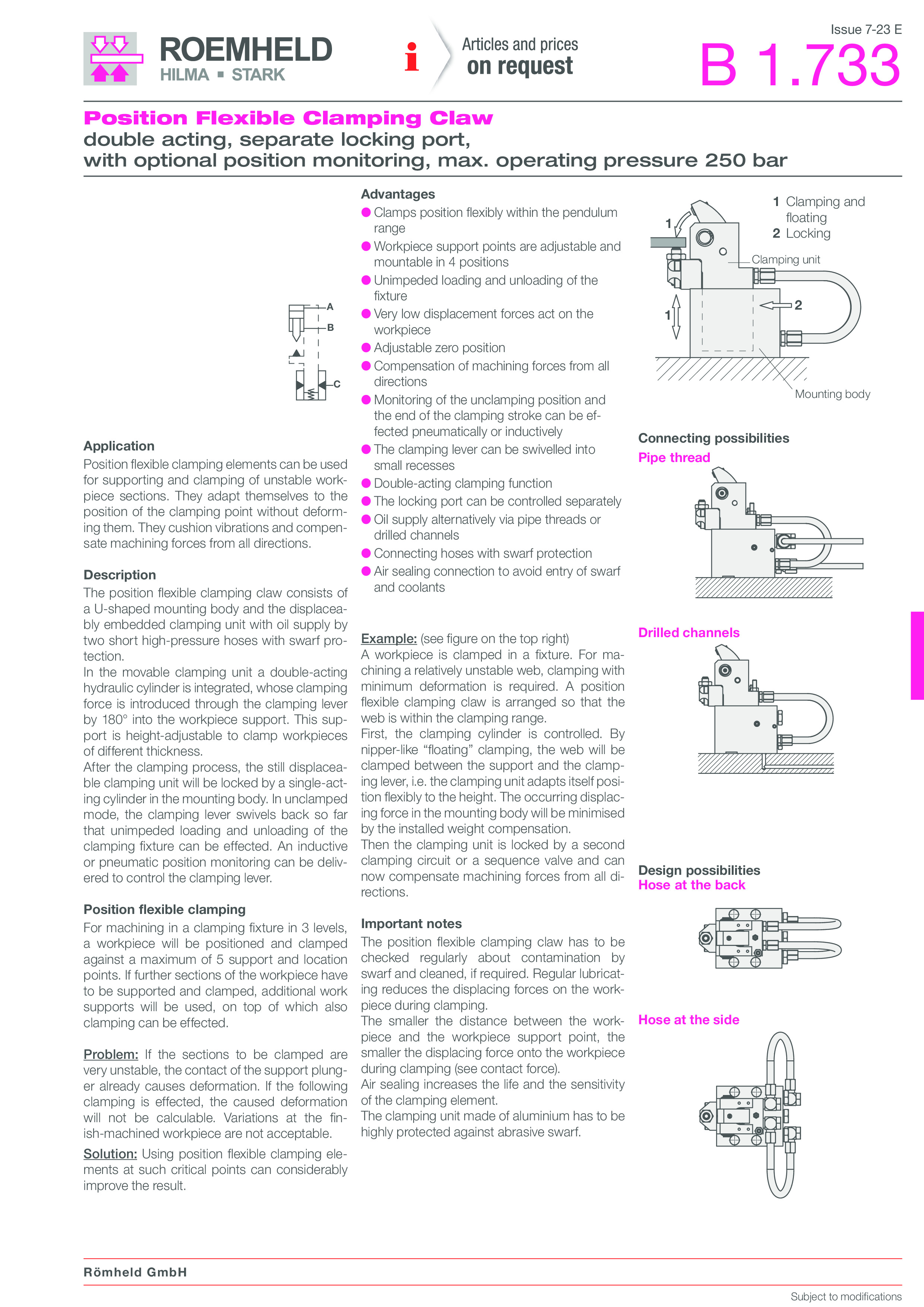

Position Flexible Clamping Claw with Optional Position Monitoring - ROEMHELD B1.733
- Max. operating pressure: 250 bar
- Max. clamping force: 7.5 kN
- Max. retention force: 10 kN
- Pendulum range: ±4 mm
Advantages:
- Clamps position flexible within the pendulum range
- Workpiece support points adjustable and mountable in 4 positions
- Uninmpeded loading and unloading of the fixture
- Very low displacing forces act on the workpiece
- Adjustable zero position
- Compensation of machining forces from all directions
- Monitoring of the unclamping position and the end of the clamping stroke can be effected pneumatically or inductively
- Clamping lever can be swivelled into small recesses
- Double-acting clamping function
- Locking port can be controlled separately
- Oil supply optionnally by connecting threads or drilled channels
- Connecting hoses with swarf protection
- Air sealing connection to avoid entry of swarf and coolants
Description:
The position flexible clamping claw consists of an U-shaped mounting body and the displacably embedded clamping unit with oil supply by two short high-pressure hoses with swarf protection. In the movable clamping unit a double-acting hydraulic cylinder is integrated, whose clamping force is introduced through the clamping lever by 180° into the workpiece support. This support is height-adjustable to clamp workpieces of different thickness. After the clamping process the still displaceable clamping unit will be locked by a singleacting cylinder in the mounting body. In unclamped mode the clamping lever swivels back so far that unimpeded loading and unloading of the clamping fixture can be effected. To control the clamping lever an inductive or pneumatic position monitoring can be delivered.
Application:
Position flexible clamping elements can be used for supporting and clamping of unstable workpiece sections. They adapt themselves to the position of the clamping point without deforming them. They cushion vibrations and compensate machining forces from all directions.
