Carr Lane Forged Adjustable Clamps

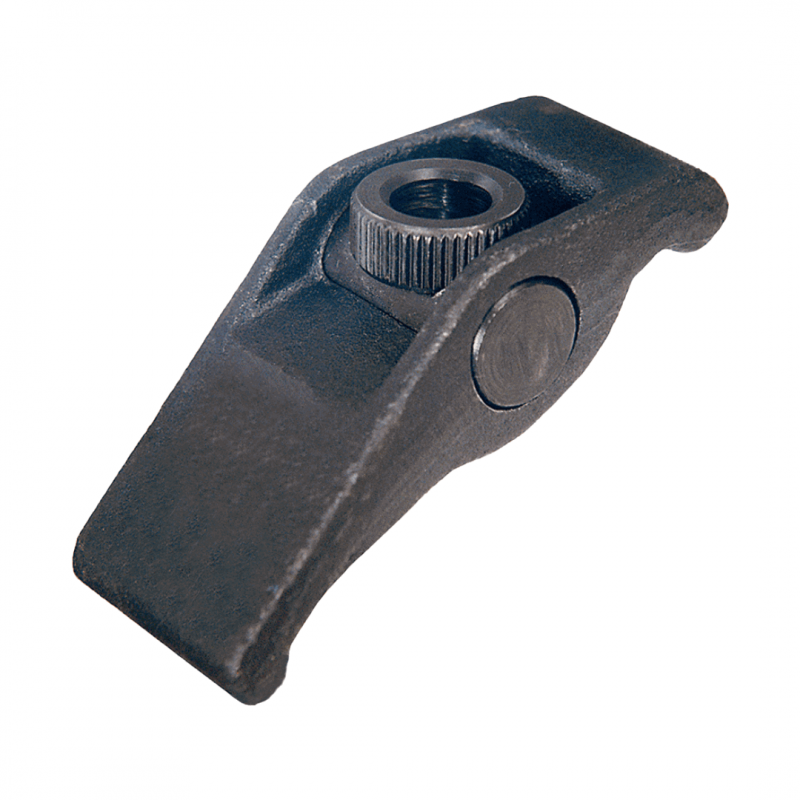

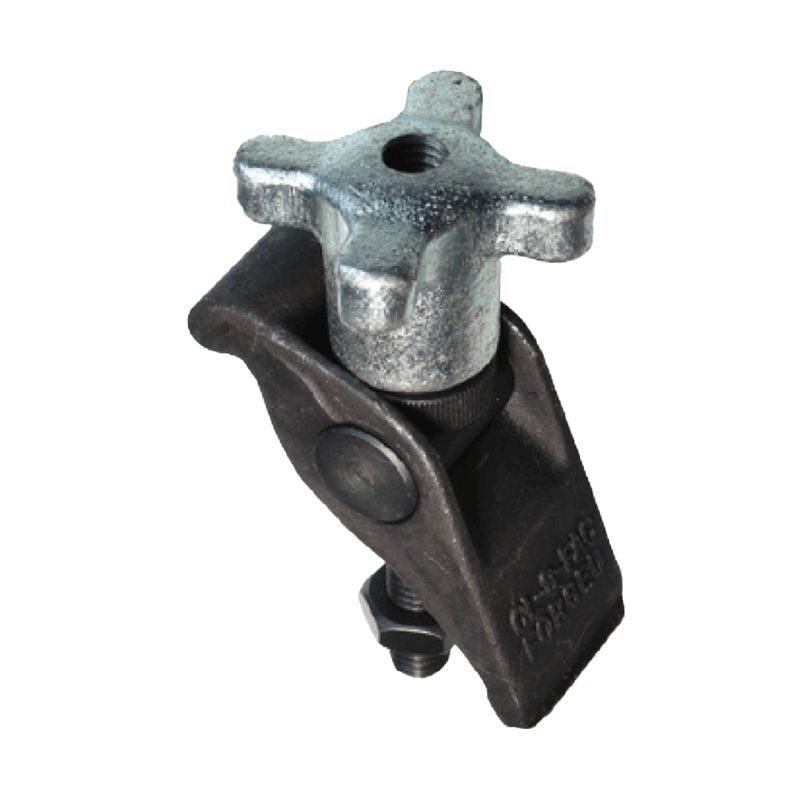

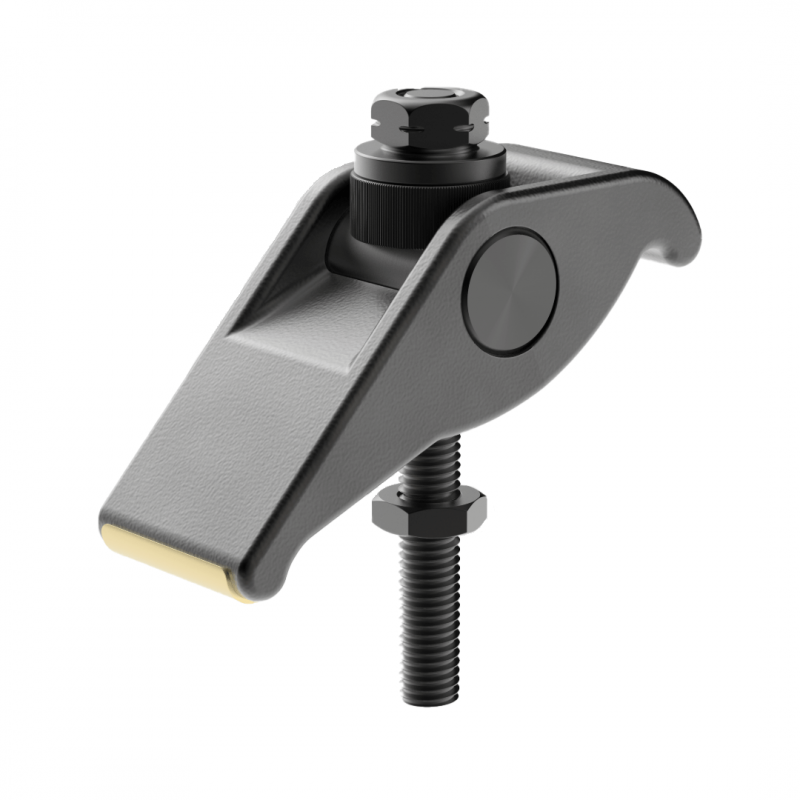

Carr Lane forged adjustable clamps are available in several variations. Thes include standard, flange nut assembly and hand knob assembly. These clamps deliver quick height adjustment without the need for blocks or shims. Its integrated design ensures fast setup and prevents the loss of clamp components. The clamp can be rotated 90° in either direction for added loading clearance. A removable brass heel protects the machine table. Available for stud sizes from 5/16-18 to 1"-8 (M8 to M24 in metric).

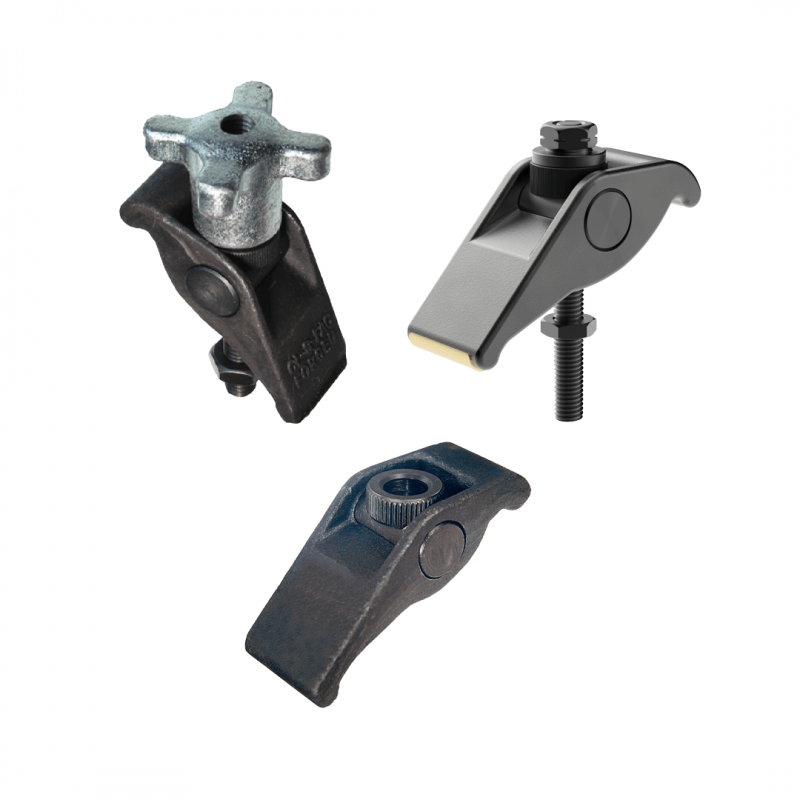

  • Clamp Straps, Assemblies with Flange Nuts and Hand Knobs
  • Available in Metric and Imperial
  • Stud sizes ranging from 5/16-18 - 1"-8 or M8 - M24
Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial Stud Size Clamp Type Price Add to Parts List
CLM-8-FACA-HK CLM-8-FACA-HK Metric M12 Assembly with Hand Knob £57.10
£68.52 Inc. VAT
CLM-16-FACA-FN CLM-16-FACA-FN Metric M24 Assembly with Flange Nut £181.09
£217.31 Inc. VAT
CLM-10-FACA-HK CLM-10-FACA-HK Metric M16 Assembly with Hand Knob £78.86
£94.63 Inc. VAT
CLM-12-FACA-HK CLM-12-FACA-HK Metric M20 Assembly with Hand Knob £119.86
£143.83 Inc. VAT
CLM-5-FACA-FN CLM-5-FACA-FN Metric M8 Assembly with Flange Nut £46.20
£55.44 Inc. VAT
CLM-6-FACA-FN CLM-6-FACA-FN Metric M10 Assembly with Flange Nut £47.29
£56.75 Inc. VAT
CLM-8-FACA-FN CLM-8-FACA-FN Metric M12 Assembly with Flange Nut £58.56
£70.27 Inc. VAT
CLM-10-FACA-FN CLM-10-FACA-FN Metric M16 Assembly with Flange Nut £73.10
£87.72 Inc. VAT
CLM-5-FACA-HK CLM-5-FACA-HK Metric M8 Assembly with Hand Knob £48.71
£58.45 Inc. VAT
CLM-6-FACA-HK CLM-6-FACA-HK Metric M10 Assembly with Hand Knob £49.74
£59.69 Inc. VAT
CLM-12-FACA-FN CLM-12-FACA-FN Metric M20 Assembly with Flange Nut £117.01
£140.41 Inc. VAT
CL-8-FAC CL-8-FAC Imperial 1/2 or M12 Clamp Strap £46.30
£55.56 Inc. VAT
CL-12-FACA-FN CL-12-FACA-FN Imperial 3/4-10 Assembly with Flange Nut £108.55
£130.26 Inc. VAT
CL-5-FACA-HK CL-5-FACA-HK Imperial 5/16-18 Assembly with Hand Knob £47.68
£57.22 Inc. VAT
CL-10-FAC CL-10-FAC Imperial 5/8 or M16 Clamp Strap £64.61
£77.53 Inc. VAT
CL-14-FACA-FN CL-14-FACA-FN Imperial 7/8-9 Assembly with Flange Nut £165.65
£198.78 Inc. VAT
CL-16-FACA-FN CL-16-FACA-FN Imperial 1"-8 Assembly with Flange Nut £206.99
£248.39 Inc. VAT
CL-6-FACA-HK CL-6-FACA-HK Imperial 3/8-16 Assembly with Hand Knob £48.58
£58.30 Inc. VAT
CL-12-FAC CL-12-FAC Imperial 3/4 or M20 Clamp Strap £98.09
£117.71 Inc. VAT
CL-16-FAC CL-16-FAC Imperial 7/8, 1 or M24 Clamp Strap £180.11
£216.13 Inc. VAT
CL-8-FACA-HK CL-8-FACA-HK Imperial 1/2-13 Assembly with Hand Knob £61.91
£74.29 Inc. VAT
CL-8-VAC CL-8-VAC Imperial 3/8 or M10 Aluminium Adjustable £16.62
£19.94 Inc. VAT
CL-5-FACA-FN CL-5-FACA-FN Imperial 5/16-18 Assembly with Flange Nut £44.38
£53.26 Inc. VAT
CL-10-FACA-HK CL-10-FACA-HK Imperial 5/8-11 Assembly with Hand Knob £76.26
£91.51 Inc. VAT
CL-10-VAC CL-10-VAC Imperial 1/2 or M12 Aluminium Adjustable £20.10
£24.12 Inc. VAT
CL-6-FACA-FN CL-6-FACA-FN Imperial 3/8-16 Assembly with Flange Nut £45.17
£54.20 Inc. VAT
CL-12-FACA-HK CL-12-FACA-HK Imperial 3/4-10 Assembly with Hand Knob £111.23
£133.48 Inc. VAT
CL-8-FACA-FN CL-8-FACA-FN Imperial 1/2-13 Assembly with Flange Nut £56.74
£68.09 Inc. VAT
CL-6-FAC CL-6-FAC Imperial 5/16, 3/8, M8 or M10 Clamp Strap £41.50
£49.80 Inc. VAT
CL-10-FACA-FN CL-10-FACA-FN Imperial 5/8-11 Assembly with Flange Nut £70.12
£84.14 Inc. VAT

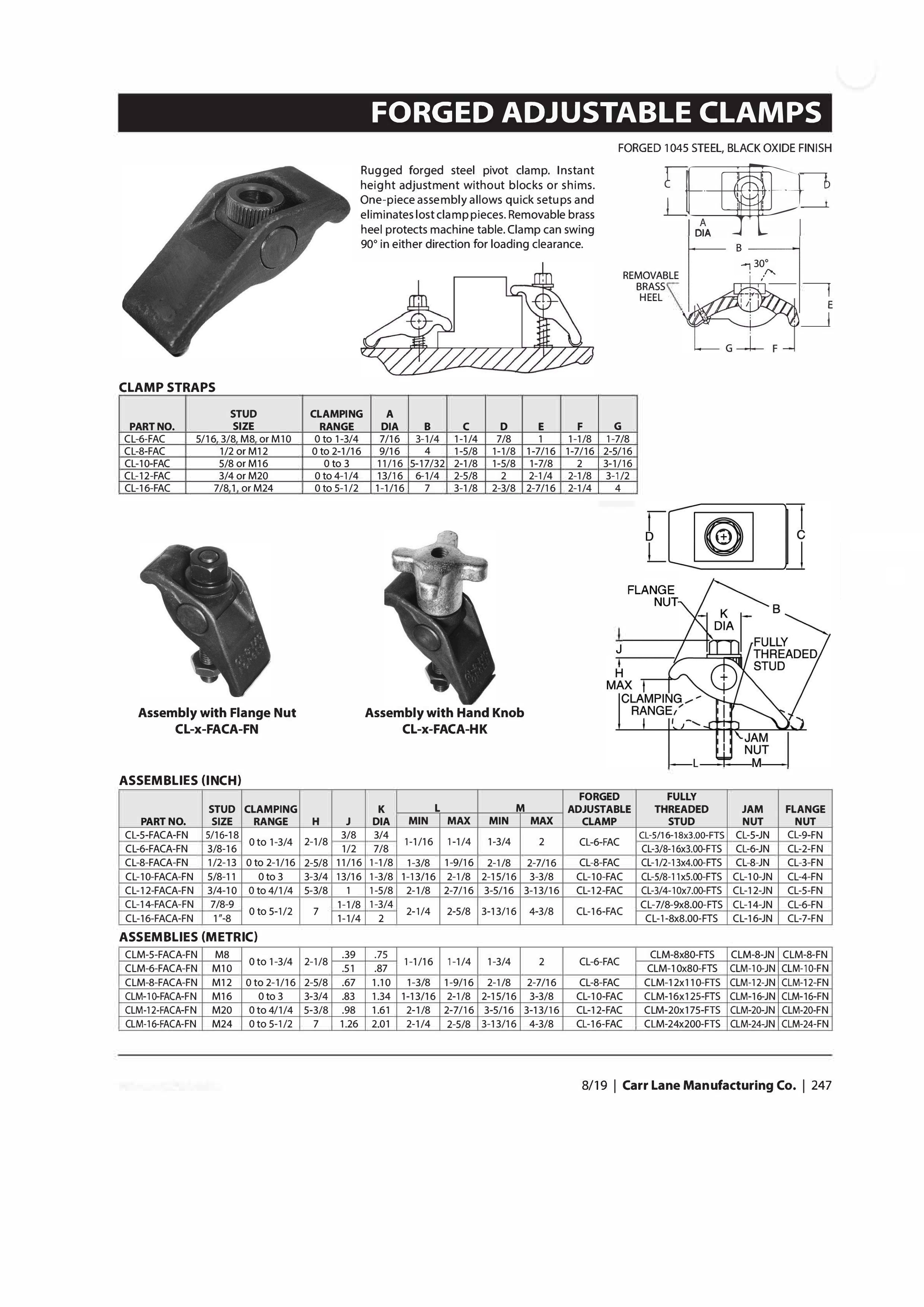

Carr Lane Forged Adjustable Clamps datasheet

Carr Lane Forged Adjustable Clamps

Carr Lane forged adjustable clamps are available in several variations. Thes include standard, flange nut assembly and hand knob assembly. These clamps deliver quick height adjustment without the need for blocks or shims. Its integrated design ensures fast setup and prevents the loss of clamp components. The clamp can be rotated 90° in either direction for added loading clearance. A removable brass heel protects the machine table. Available for stud sizes from 5/16-18 to 1"-8 (M8 to M24 in metric).

  • Clamp Straps, Assemblies with Flange Nuts and Hand Knobs
  • Available in Metric and Imperial
  • Stud sizes ranging from 5/16-18 - 1"-8 or M8 - M24

Quantity Unit discount You Save
