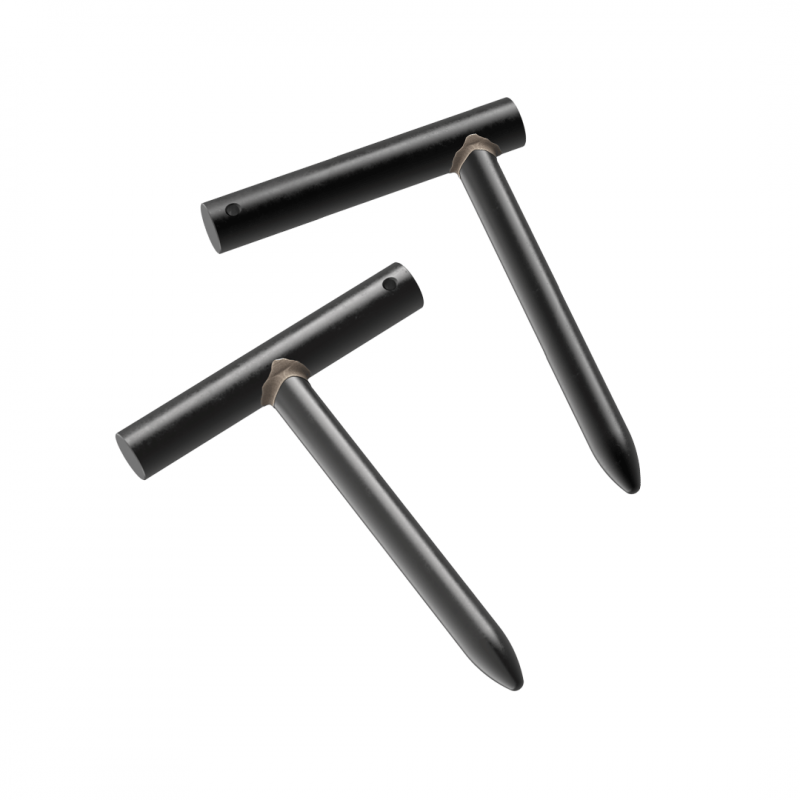

L Pins and T Pins have precision-ground pin diameter to ensure accurate hole alignment. L Pins and T Pins are removable locating pins with a durable construction, each featuring a handle end with a small hole for attaching an optional cable. These pins come in a variety of diameters and lengths. Jig Pins, similar to L and T Pins, incorporate an integral shoulder to keep the handle raised. Also available from the Carr Lane range, locking L Pins and T Pins with a lock screw that securely holds bushings in place. These pins are available in both imperial and metric sizes.
| Part Number | Material Number | Metric or Imperial | Pin Type | Actual Diameter | Length in Inches | Cable Assembly | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CLM-16-TP-C | Metric | T Pin | .6299 | 6 | Yes | £19.61 £23.53 Inc. VAT |
|
|
| CLM-12-TP-C | Metric | T Pin | .4724 | 4 | Yes | £15.13 £18.16 Inc. VAT |
|
|
| CLM-10-TP-C | Metric | T Pin | .3937 | 3 | Yes | £12.65 £15.18 Inc. VAT |
|
|
| CLM-8-TP-C | Metric | T Pin | .3150 | 3-1/2 | Yes | £10.55 £12.66 Inc. VAT |
|
|
| CLM-6-TP-C | Metric | T Pin | .2362 | 3 | Yes | £10.78 £12.94 Inc. VAT |
|
|
| CLM-5-TP-C | Metric | T Pin | .1969 | 3 | Yes | £10.78 £12.94 Inc. VAT |
|
|
| CLM-20-TP-C | Metric | T Pin | .7874 | 6 | Yes | £22.82 £27.38 Inc. VAT |
|
|
| CLM-6-TP | Metric | T Pin | .2362 | 3 | No | £9.10 £10.92 Inc. VAT |
|
|
| CLM-5-TP | Metric | T Pin | .1969 | 3 | No | £9.10 £10.92 Inc. VAT |
|
|
| CLM-20-TP | Metric | T Pin | .7874 | 6 | No | £21.25 £25.50 Inc. VAT |
|
|
| CLM-16-TP | Metric | T Pin | .6299 | 6 | No | £17.94 £21.53 Inc. VAT |
|
|
| CLM-12-TP | Metric | T Pin | .4724 | 4 | No | £13.55 £16.26 Inc. VAT |
|
|
| CLM-10-TP | Metric | T Pin | .3937 | 3 | No | £10.84 £13.01 Inc. VAT |
|
|
| CLM-8-TP | Metric | T Pin | .3150 | 3-1/2 | No | £8.99 £10.79 Inc. VAT |
|
|
| CLM-20-LP-C | Metric | L Pin | .7874 | 6 | Yes | £22.27 £26.72 Inc. VAT |
|
|
| CLM-16-LP-C | Metric | L Pin | .6299 | 6 | Yes | £17.94 £21.53 Inc. VAT |
|
|
| CLM-12-LP-C | Metric | L Pin | .4724 | 4 | Yes | £14.50 £17.40 Inc. VAT |
|
|
| CLM-10-LP-C | Metric | L Pin | .3937 | 3 | Yes | £10.60 £12.72 Inc. VAT |
|
|
| CLM-8-LP-C | Metric | L Pin | .3150 | 3-1/2 | Yes | £10.31 £12.37 Inc. VAT |
|
|
| CLM-6-LP-C | Metric | L Pin | .2362 | 3 | Yes | £9.84 £11.81 Inc. VAT |
|
|
| CLM-5-LP-C | Metric | L Pin | .1969 | 3 | Yes | £9.84 £11.81 Inc. VAT |
|
|
| CLM-4-TP-C | Metric | T Pin | .1575 | 3-1/2 | Yes | £10.08 £12.10 Inc. VAT |
|
|
| CLM-4-LP-C | Metric | L Pin | .1575 | 3-1/2 | Yes | £9.84 £11.81 Inc. VAT |
|
|
| CLM-20-LP | Metric | L Pin | .7874 | 6 | No | £20.75 £24.90 Inc. VAT |
|
|
| CLM-16-LP | Metric | L Pin | .6299 | 6 | No | £16.39 £19.67 Inc. VAT |
|
|
| CLM-12-LP | Metric | L Pin | .4724 | 4 | No | £12.96 £15.55 Inc. VAT |
|
|
| CLM-10-LP | Metric | L Pin | .3937 | 3 | No | £9.07 £10.88 Inc. VAT |
|
|
| CLM-8-LP | Metric | L Pin | .3150 | 3-1/2 | No | £8.77 £10.52 Inc. VAT |
|
|
| CLM-6-LP | Metric | L Pin | .2362 | 3 | No | £8.32 £9.98 Inc. VAT |
|
|
| CLM-5-LP | Metric | L Pin | .1969 | 3 | No | £9.71 £11.65 Inc. VAT |
|
|
| CLM-120-TP-C | Metric | T Pin | .4724 | 6 | Yes | £16.73 £20.08 Inc. VAT |
|
|
| CLM-100-TP-C | Metric | T Pin | .3937 | 6 | Yes | £13.79 £16.55 Inc. VAT |
|
|
| CLM-80-TP-C | Metric | T Pin | .3150 | 6 | Yes | £13.21 £15.85 Inc. VAT |
|
|
| CLM-60-TP-C | Metric | T Pin | .2362 | 6 | Yes | £12.65 £15.18 Inc. VAT |
|
|
| CLM-50-TP-C | Metric | T Pin | .1969 | 6 | Yes | £10.31 £12.37 Inc. VAT |
|
|
| CLM-4-TP | Metric | T Pin | .1575 | 3-1/2 | No | £8.52 £10.22 Inc. VAT |
|
|
| CLM-200-TP-C | Metric | T Pin | .7874 | 8 | Yes | £32.69 £39.23 Inc. VAT |
|
|
| CLM-160-TP-C | Metric | T Pin | .6299 | 8 | Yes | £22.74 £27.29 Inc. VAT |
|
|
| CLM-60-TP | Metric | T Pin | .2362 | 6 | No | £10.84 £13.01 Inc. VAT |
|
|
| CLM-50-TP | Metric | T Pin | .1969 | 6 | No | £8.75 £10.50 Inc. VAT |
|
|
| CLM-4-LP | Metric | L Pin | .1575 | 3-1/2 | No | £8.32 £9.98 Inc. VAT |
|
|
| CLM-200-TP | Metric | T Pin | .7874 | 8 | No | £31.10 £37.32 Inc. VAT |
|
|
| CLM-160-TP | Metric | T Pin | .6299 | 8 | No | £20.94 £25.13 Inc. VAT |
|
|
| CLM-120-TP | Metric | T Pin | .4724 | 6 | No | £15.13 £18.16 Inc. VAT |
|
|
| CLM-100-TP | Metric | T Pin | .3937 | 6 | No | £12.18 £14.62 Inc. VAT |
|
|
| CLM-80-TP | Metric | T Pin | .3150 | 6 | No | £11.64 £13.97 Inc. VAT |
|
|
| CLM-200-LP-C | Metric | L Pin | .7874 | 8 | Yes | £31.91 £38.29 Inc. VAT |
|
|
| CLM-160-LP-C | Metric | L Pin | .6299 | 8 | Yes | £19.45 £23.34 Inc. VAT |
|
|
| CLM-120-LP-C | Metric | L Pin | .4724 | 6 | Yes | £16.04 £19.25 Inc. VAT |
|
|
| CLM-100-LP-C | Metric | L Pin | .3937 | 6 | Yes | £13.21 £15.85 Inc. VAT |
|
|
| CLM-80-LP-C | Metric | L Pin | .3150 | 6 | Yes | £12.89 £15.47 Inc. VAT |
|
|
| CLM-60-LP-C | Metric | L Pin | .2362 | 6 | Yes | £10.60 £12.72 Inc. VAT |
|
|
| CLM-50-LP-C | Metric | L Pin | .1969 | 6 | Yes | £10.06 £12.07 Inc. VAT |
|
|
| CLM-200-LP | Metric | L Pin | .7874 | 8 | No | £30.35 £36.42 Inc. VAT |
|
|
| CLM-160-LP | Metric | L Pin | .6299 | 8 | No | £17.88 £21.46 Inc. VAT |
|
|
| CLM-120-LP | Metric | L Pin | .4724 | 6 | No | £14.50 £17.40 Inc. VAT |
|
|
| CLM-100-LP | Metric | L Pin | .3937 | 6 | No | £11.66 £13.99 Inc. VAT |
|
|
| CLM-80-LP | Metric | L Pin | .3150 | 6 | No | £11.38 £13.66 Inc. VAT |
|
|
| CLM-60-LP | Metric | L Pin | .2362 | 6 | No | £9.07 £10.88 Inc. VAT |
|
|
| CLM-50-LP | Metric | L Pin | .1969 | 6 | No | £8.54 £10.25 Inc. VAT |
|
|
| CL-33-TP-C | Imperial | T Pin | .5000 | 7 | Yes | £12.90 £15.48 Inc. VAT |
|
|
| CL-13-TP-C | Imperial | T Pin | .5000 | 4 | Yes | £11.95 £14.34 Inc. VAT |
|
|
| CL-12-TP-C | Imperial | T Pin | .4375 | 6 | Yes | £11.82 £14.18 Inc. VAT |
|
|
| CL-11-TP-C | Imperial | T Pin | .4375 | 4 | Yes | £11.08 £13.30 Inc. VAT |
|
|
| CL-10-TP-C | Imperial | T Pin | .3750 | 6 | Yes | £10.87 £13.04 Inc. VAT |
|
|
| CL-9-TP-C | Imperial | T Pin | .3750 | 4 | Yes | £10.14 £12.17 Inc. VAT |
|
|
| CL-17-TP | Imperial | T Pin | .2570 | 3 | No | £7.74 £9.29 Inc. VAT |
|
|
| CL-8-TP-C | Imperial | T Pin | .3125 | 6 | Yes | £9.78 £11.74 Inc. VAT |
|
|
| CL-25-TP | Imperial | T Pin | .2500 | 4 | No | £6.49 £7.79 Inc. VAT |
|
|
| CL-7-TP-C | Imperial | T Pin | .3125 | 3-1/2 | Yes | £9.30 £11.16 Inc. VAT |
|
|
| CL-38-TP | Imperial | T Pin | .2500 | 2 | No | £6.10 £7.32 Inc. VAT |
|
|
| CL-45-TP-C | Imperial | T Pin | .2812 | 4 | Yes | £12.53 £15.04 Inc. VAT |
|
|
| CL-20-TP | Imperial | T Pin | .1960 | 3 | No | £8.75 £10.50 Inc. VAT |
|
|
| CL-4-TP | Imperial | T Pin | .1910 | 6 | No | £7.42 £8.90 Inc. VAT |
|
|
| CL-3-TP | Imperial | T Pin | .1910 | 3 | No | £6.62 £7.94 Inc. VAT |
|
|
| CL-21-TP | Imperial | T Pin | .1875 | 4 | No | £6.10 £7.32 Inc. VAT |
|
|
| CL-16-TP-C | Imperial | T Pin | .7500 | 6 | Yes | £21.11 £25.33 Inc. VAT |
|
|
| CL-00-TP | Imperial | T Pin | .1562 | 3-1/2 | No | £8.70 £10.44 Inc. VAT |
|
|
| CL-15-TP-C | Imperial | T Pin | .6250 | 6 | Yes | £17.12 £20.54 Inc. VAT |
|
|
| CL-0-TP | Imperial | T Pin | .1250 | 2-1/2 | No | £6.40 £7.68 Inc. VAT |
|
|
| CL-18-TP-C | Imperial | T Pin | .5625 | 4 | Yes | £15.54 £18.65 Inc. VAT |
|
|
| CL-10-TP | Imperial | T Pin | .3750 | 6 | No | £9.30 £11.16 Inc. VAT |
|
|
| CL-9-TP | Imperial | T Pin | .3750 | 4 | No | £8.60 £10.32 Inc. VAT |
|
|
| CL-17-LP-C | Imperial | L Pin | .2570 | 3 | Yes | £9.07 £10.88 Inc. VAT |
|
|
| CL-8-TP | Imperial | T Pin | .3125 | 6 | No | £8.22 £9.86 Inc. VAT |
|
|
| CL-25-LP-C | Imperial | L Pin | .2500 | 4 | Yes | £7.85 £9.42 Inc. VAT |
|
|
| CL-7-TP | Imperial | T Pin | .3125 | 3-1/2 | No | £7.74 £9.29 Inc. VAT |
|
|
| CL-38-LP-C | Imperial | L Pin | .2500 | 2 | Yes | £7.49 £8.99 Inc. VAT |
|
|
| CL-45-TP | Imperial | T Pin | .2812 | 4 | No | £10.84 £13.01 Inc. VAT |
|
|
| CL-20-LP-C | Imperial | L Pin | .1960 | 3 | Yes | £10.06 £12.07 Inc. VAT |
|
|
| CL-4-LP-C | Imperial | L Pin | .1910 | 6 | Yes | £8.77 £10.52 Inc. VAT |
|
|
| CL-3-LP-C | Imperial | L Pin | .1910 | 3 | Yes | £8.02 £9.62 Inc. VAT |
|
|
| CL-21-LP-C | Imperial | L Pin | .1875 | 4 | Yes | £7.49 £8.99 Inc. VAT |
|
|
| CL-16-TP | Imperial | T Pin | .7500 | 6 | No | £19.55 £23.46 Inc. VAT |
|
|
| CL-00-LP-C | Imperial | L Pin | .1562 | 3-1/2 | Yes | £9.84 £11.81 Inc. VAT |
|
|
| CL-15-TP | Imperial | T Pin | .6250 | 6 | No | £15.54 £18.65 Inc. VAT |
|
|
| CL-0-LP-C | Imperial | L Pin | .1250 | 2-1/2 | Yes | £7.78 £9.34 Inc. VAT |
|
|
| CL-18-TP | Imperial | T Pin | .5625 | 4 | No | £13.99 £16.79 Inc. VAT |
|
|
| CL-33-TP | Imperial | T Pin | .5000 | 7 | No | £11.35 £13.62 Inc. VAT |
|
|
| CL-13-TP | Imperial | T Pin | .5000 | 4 | No | £10.34 £12.41 Inc. VAT |
|
|
| CL-12-TP | Imperial | T Pin | .4375 | 6 | No | £10.25 £12.30 Inc. VAT |
|
|
| CL-11-TP | Imperial | T Pin | .4375 | 4 | No | £9.49 £11.39 Inc. VAT |
|
|
| CL-7-LP-C | Imperial | L Pin | .3125 | 3-1/2 | Yes | £9.07 £10.88 Inc. VAT |
|
|
| CL-38-LP | Imperial | L Pin | .2500 | 2 | No | £5.94 £7.13 Inc. VAT |
|
|
| CL-45-LP-C | Imperial | L Pin | .2812 | 4 | Yes | £12.23 £14.68 Inc. VAT |
|
|
| CL-20-LP | Imperial | L Pin | .1960 | 3 | No | £8.54 £10.25 Inc. VAT |
|
|
| CL-4-LP | Imperial | L Pin | .1910 | 6 | No | £7.24 £8.69 Inc. VAT |
|
|
| CL-3-LP | Imperial | L Pin | .1910 | 3 | No | £6.49 £7.79 Inc. VAT |
|
|
| CL-21-LP | Imperial | L Pin | .1875 | 4 | No | £5.94 £7.13 Inc. VAT |
|
|
| CL-16-LP-C | Imperial | L Pin | .7500 | 6 | Yes | £20.59 £24.71 Inc. VAT |
|
|
| CL-00-LP | Imperial | L Pin | .1562 | 3-1/2 | No | £8.32 £9.98 Inc. VAT |
|
|
| CL-15-LP-C | Imperial | L Pin | .6250 | 6 | Yes | £16.69 £20.03 Inc. VAT |
|
|
| CL-0-LP | Imperial | L Pin | .1250 | 2-1/2 | No | £6.26 £7.51 Inc. VAT |
|
|
| CL-18-LP-C | Imperial | L Pin | .5625 | 4 | Yes | £15.18 £18.22 Inc. VAT |
|
|
| CL-33-LP-C | Imperial | L Pin | .5000 | 7 | Yes | £12.59 £15.11 Inc. VAT |
|
|
| CL-13-LP-C | Imperial | L Pin | .5000 | 4 | Yes | £11.44 £13.73 Inc. VAT |
|
|
| CL-12-LP-C | Imperial | L Pin | .4375 | 6 | Yes | £11.52 £13.82 Inc. VAT |
|
|
| CL-11-LP-C | Imperial | L Pin | .4375 | 4 | Yes | £10.60 £12.72 Inc. VAT |
|
|
| CL-10-LP-C | Imperial | L Pin | .3750 | 6 | Yes | £10.60 £12.72 Inc. VAT |
|
|
| CL-45-LP | Imperial | L Pin | .2812 | 4 | No | £10.58 £12.70 Inc. VAT |
|
|
| CL-9-LP-C | Imperial | L Pin | .3750 | 4 | Yes | £9.92 £11.90 Inc. VAT |
|
|
| CL-17-LP | Imperial | L Pin | .2570 | 3 | No | £7.56 £9.07 Inc. VAT |
|
|
| CL-8-LP-C | Imperial | L Pin | .3125 | 6 | Yes | £9.54 £11.45 Inc. VAT |
|
|
| CL-25-LP | Imperial | L Pin | .2500 | 4 | No | £6.34 £7.61 Inc. VAT |
|
|
| CL-1-TP-C | Imperial | T Pin | .1875 | 3 | Yes | £7.10 £8.52 Inc. VAT |
|
|
| CL-16-LP | Imperial | L Pin | .7500 | 6 | No | £19.08 £22.90 Inc. VAT |
|
|
| CL-41-TP-C | Imperial | T Pin | .1285 | 3 | Yes | £11.29 £13.55 Inc. VAT |
|
|
| CL-15-LP | Imperial | L Pin | .6250 | 6 | No | £15.18 £18.22 Inc. VAT |
|
|
| CL-18-LP | Imperial | L Pin | .5625 | 4 | No | £13.66 £16.39 Inc. VAT |
|
|
| CL-33-LP | Imperial | L Pin | .5000 | 7 | No | £11.06 £13.27 Inc. VAT |
|
|
| CL-13-LP | Imperial | L Pin | .5000 | 4 | No | £9.92 £11.90 Inc. VAT |
|
|
| CL-12-LP | Imperial | L Pin | .4375 | 6 | No | £10.00 £12.00 Inc. VAT |
|
|
| CL-11-LP | Imperial | L Pin | .4375 | 4 | No | £9.07 £10.88 Inc. VAT |
|
|
| CL-10-LP | Imperial | L Pin | .3750 | 6 | No | £9.07 £10.88 Inc. VAT |
|
|
| CL-37-TP-C | Imperial | T Pin | .2570 | 4 | Yes | £11.35 £13.62 Inc. VAT |
|
|
| CL-9-LP | Imperial | L Pin | .3750 | 4 | No | £8.40 £10.08 Inc. VAT |
|
|
| CL-6-TP-C | Imperial | T Pin | .2500 | 6 | Yes | £9.30 £11.16 Inc. VAT |
|
|
| CL-8-LP | Imperial | L Pin | .3125 | 6 | No | £8.02 £9.62 Inc. VAT |
|
|
| CL-5-TP-C | Imperial | T Pin | .2500 | 3 | Yes | £7.74 £9.29 Inc. VAT |
|
|
| CL-7-LP | Imperial | L Pin | .3125 | 3-1/2 | No | £7.56 £9.07 Inc. VAT |
|
|
| CL-44-TP-C | Imperial | T Pin | .2188 | 3 | Yes | £12.53 £15.04 Inc. VAT |
|
|
| CL-43-TP-C | Imperial | T Pin | .1935 | 3 | Yes | £10.52 £12.62 Inc. VAT |
|
|
| CL-23-TP-C | Imperial | T Pin | .1910 | 4 | Yes | £8.83 £10.60 Inc. VAT |
|
|
| CL-2-TP-C | Imperial | T Pin | .1875 | 6 | Yes | £7.74 £9.29 Inc. VAT |
|
|
| CL-14-TP-C | Imperial | T Pin | .5000 | 6 | Yes | £12.59 £15.11 Inc. VAT |
|
|
| CL-32-TP-C | Imperial | T Pin | .4375 | 7 | Yes | £12.42 £14.90 Inc. VAT |
|
|
| CL-31-TP-C | Imperial | T Pin | .4375 | 5 | Yes | £11.35 £13.62 Inc. VAT |
|
|
| CL-30-TP-C | Imperial | T Pin | .3750 | 7 | Yes | £11.35 £13.62 Inc. VAT |
|
|
| CL-29-TP-C | Imperial | T Pin | .3750 | 5 | Yes | £10.87 £13.04 Inc. VAT |
|
|
| CL-37-TP | Imperial | T Pin | .2570 | 4 | No | £9.78 £11.74 Inc. VAT |
|
|
| CL-40-TP-C | Imperial | T Pin | .3750 | 3 | Yes | £10.21 £12.25 Inc. VAT |
|
|
| CL-6-TP | Imperial | T Pin | .2500 | 6 | No | £7.74 £9.29 Inc. VAT |
|
|
| CL-27-TP-C | Imperial | T Pin | .3125 | 4 | Yes | £9.68 £11.62 Inc. VAT |
|
|
| CL-5-TP | Imperial | T Pin | .2500 | 3 | No | £6.16 £7.39 Inc. VAT |
|
|
| CL-39-TP-C | Imperial | T Pin | .3125 | 2 | Yes | £9.30 £11.16 Inc. VAT |
|
|
| CL-44-TP | Imperial | T Pin | .2188 | 3 | No | £10.62 £12.74 Inc. VAT |
|
|
| CL-43-TP | Imperial | T Pin | .1935 | 3 | No | £8.92 £10.70 Inc. VAT |
|
|
| CL-23-TP | Imperial | T Pin | .1910 | 4 | No | £7.26 £8.71 Inc. VAT |
|
|
| CL-2-TP | Imperial | T Pin | .1875 | 6 | No | £6.16 £7.39 Inc. VAT |
|
|
| CL-36-TP-C | Imperial | T Pin | .7500 | 8 | Yes | £26.18 £31.42 Inc. VAT |
|
|
| CL-1-TP | Imperial | T Pin | .1875 | 3 | No | £5.56 £6.67 Inc. VAT |
|
|
| CL-35-TP-C | Imperial | T Pin | .6250 | 8 | Yes | £20.24 £24.29 Inc. VAT |
|
|
| CL-41-TP | Imperial | T Pin | .1285 | 3 | No | £9.40 £11.28 Inc. VAT |
|
|
| CL-19-TP-C | Imperial | T Pin | .5625 | 6 | Yes | £18.29 £21.95 Inc. VAT |
|
|
| CL-34-TP-C | Imperial | T Pin | .5000 | 9 | Yes | £17.12 £20.54 Inc. VAT |
|
|
| CL-30-TP | Imperial | T Pin | .3750 | 7 | No | £9.78 £11.74 Inc. VAT |
|
|
| CL-29-TP | Imperial | T Pin | .3750 | 5 | No | £9.30 £11.16 Inc. VAT |
|
|
| CL-37-LP-C | Imperial | L Pin | .2570 | 4 | Yes | £11.06 £13.27 Inc. VAT |
|
|
| CL-40-TP | Imperial | T Pin | .3750 | 3 | No | £8.60 £10.32 Inc. VAT |
|
|
| CL-6-LP-C | Imperial | L Pin | .2500 | 6 | Yes | £9.07 £10.88 Inc. VAT |
|
|
| CL-27-TP | Imperial | T Pin | .3125 | 4 | No | £8.12 £9.74 Inc. VAT |
|
|
| CL-5-LP-C | Imperial | L Pin | .2500 | 3 | Yes | £7.56 £9.07 Inc. VAT |
|
|
| CL-39-TP | Imperial | T Pin | .3125 | 2 | No | £7.74 £9.29 Inc. VAT |
|
|
| CL-44-LP-C | Imperial | L Pin | .2188 | 3 | Yes | £11.72 £14.06 Inc. VAT |
|
|
| CL-43-LP-C | Imperial | L Pin | .1935 | 3 | Yes | £10.06 £12.07 Inc. VAT |
|
|
| CL-23-LP-C | Imperial | L Pin | .1910 | 4 | Yes | £8.63 £10.36 Inc. VAT |
|
|
| CL-2-LP-C | Imperial | L Pin | .1875 | 6 | Yes | £7.56 £9.07 Inc. VAT |
|
|
| CL-36-TP | Imperial | T Pin | .7500 | 8 | No | £24.62 £29.54 Inc. VAT |
|
|
| CL-1-LP-C | Imperial | L Pin | .1875 | 3 | Yes | £6.95 £8.34 Inc. VAT |
|
|
| CL-35-TP | Imperial | T Pin | .6250 | 8 | No | £18.68 £22.42 Inc. VAT |
|
|
| CL-41-LP-C | Imperial | L Pin | .1285 | 3 | Yes | £10.57 £12.68 Inc. VAT |
|
|
| CL-19-TP | Imperial | T Pin | .5625 | 6 | No | £16.61 £19.93 Inc. VAT |
|
|
| CL-34-TP | Imperial | T Pin | .5000 | 9 | No | £15.54 £18.65 Inc. VAT |
|
|
| CL-14-TP | Imperial | T Pin | .5000 | 6 | No | £11.03 £13.24 Inc. VAT |
|
|
| CL-32-TP | Imperial | T Pin | .4375 | 7 | No | £10.87 £13.04 Inc. VAT |
|
|
| CL-31-TP | Imperial | T Pin | .4375 | 5 | No | £9.78 £11.74 Inc. VAT |
|
|
| CL-39-LP-C | Imperial | L Pin | .3125 | 2 | Yes | £9.07 £10.88 Inc. VAT |
|
|
| CL-44-LP | Imperial | L Pin | .2188 | 3 | No | £9.96 £11.95 Inc. VAT |
|
|
| CL-43-LP | Imperial | L Pin | .1935 | 3 | No | £8.54 £10.25 Inc. VAT |
|
|
| CL-23-LP | Imperial | L Pin | .1910 | 4 | No | £7.09 £8.51 Inc. VAT |
|
|
| CL-2-LP | Imperial | L Pin | .1875 | 6 | No | £6.04 £7.25 Inc. VAT |
|
|
| CL-36-LP-C | Imperial | L Pin | .7500 | 8 | Yes | £25.56 £30.67 Inc. VAT |
|
|
| CL-1-LP | Imperial | L Pin | .1875 | 3 | No | £5.44 £6.53 Inc. VAT |
|
|
| CL-35-LP-C | Imperial | L Pin | .6250 | 8 | Yes | £19.74 £23.69 Inc. VAT |
|
|
| CL-41-LP | Imperial | L Pin | .1285 | 3 | No | £8.81 £10.57 Inc. VAT |
|
|
| CL-19-LP-C | Imperial | L Pin | .5625 | 6 | Yes | £17.02 £20.42 Inc. VAT |
|
|
| CL-34-LP-C | Imperial | L Pin | .5000 | 9 | Yes | £16.69 £20.03 Inc. VAT |
|
|
| CL-14-LP-C | Imperial | L Pin | .5000 | 6 | Yes | £12.29 £14.75 Inc. VAT |
|
|
| CL-32-LP-C | Imperial | L Pin | .4375 | 7 | Yes | £12.13 £14.56 Inc. VAT |
|
|
| CL-31-LP-C | Imperial | L Pin | .4375 | 5 | Yes | £11.06 £13.27 Inc. VAT |
|
|
| CL-30-LP-C | Imperial | L Pin | .3750 | 7 | Yes | £11.29 £13.55 Inc. VAT |
|
|
| CL-29-LP-C | Imperial | L Pin | .3750 | 5 | Yes | £10.60 £12.72 Inc. VAT |
|
|
| CL-37-LP | Imperial | L Pin | .2570 | 4 | No | £9.54 £11.45 Inc. VAT |
|
|
| CL-40-LP-C | Imperial | L Pin | .3750 | 3 | Yes | £9.76 £11.71 Inc. VAT |
|
|
| CL-6-LP | Imperial | L Pin | .2500 | 6 | No | £7.56 £9.07 Inc. VAT |
|
|
| CL-27-LP-C | Imperial | L Pin | .3125 | 4 | Yes | £9.47 £11.36 Inc. VAT |
|
|
| CL-5-LP | Imperial | L Pin | .2500 | 3 | No | £6.04 £7.25 Inc. VAT |
|
|
| CL-21-TP-C | Imperial | T Pin | .1875 | 4 | Yes | £7.66 £9.19 Inc. VAT |
|
|
| CL-36-LP | Imperial | L Pin | .7500 | 8 | No | £24.04 £28.85 Inc. VAT |
|
|
| CL-00-TP-C | Imperial | T Pin | .1562 | 3-1/2 | Yes | £10.28 £12.34 Inc. VAT |
|
|
| CL-35-LP | Imperial | L Pin | .6250 | 8 | No | £18.23 £21.88 Inc. VAT |
|
|
| CL-0-TP-C | Imperial | T Pin | .1250 | 2-1/2 | Yes | £7.98 £9.58 Inc. VAT |
|
|
| CL-19-LP | Imperial | L Pin | .5625 | 6 | No | £15.48 £18.58 Inc. VAT |
|
|
| CL-34-LP | Imperial | L Pin | .5000 | 9 | No | £15.18 £18.22 Inc. VAT |
|
|
| CL-14-LP | Imperial | L Pin | .5000 | 6 | No | £10.78 £12.94 Inc. VAT |
|
|
| CL-32-LP | Imperial | L Pin | .4375 | 7 | No | £10.60 £12.72 Inc. VAT |
|
|
| CL-31-LP | Imperial | L Pin | .4375 | 5 | No | £9.54 £11.45 Inc. VAT |
|
|
| CL-30-LP | Imperial | L Pin | .3750 | 7 | No | £9.73 £11.68 Inc. VAT |
|
|
| CL-29-LP | Imperial | L Pin | .3750 | 5 | No | £9.07 £10.88 Inc. VAT |
|
|
| CL-17-TP-C | Imperial | T Pin | .2570 | 3 | Yes | £9.30 £11.16 Inc. VAT |
|
|
| CL-40-LP | Imperial | L Pin | .3750 | 3 | No | £8.24 £9.89 Inc. VAT |
|
|
| CL-25-TP-C | Imperial | T Pin | .2500 | 4 | Yes | £8.04 £9.65 Inc. VAT |
|
|
| CL-27-LP | Imperial | L Pin | .3125 | 4 | No | £7.94 £9.53 Inc. VAT |
|
|
| CL-38-TP-C | Imperial | T Pin | .2500 | 2 | Yes | £7.66 £9.19 Inc. VAT |
|
|
| CL-39-LP | Imperial | L Pin | .3125 | 2 | No | £7.56 £9.07 Inc. VAT |
|
|
| CL-20-TP-C | Imperial | T Pin | .1960 | 3 | Yes | £10.31 £12.37 Inc. VAT |
|
|
| CL-4-TP-C | Imperial | T Pin | .1910 | 6 | Yes | £8.99 £10.79 Inc. VAT |
|
|
| CL-3-TP-C | Imperial | T Pin | .1910 | 3 | Yes | £8.22 £9.86 Inc. VAT |
|
L and T Pins are removable locating pins, precision ground for accurately aligning holes. The pin is inset in the handle and silver soldered to create a sturdy assembly while the handle is drilled for attaching a cable.
Options:
| Quantity | Unit discount | You Save |
|---|
Ferrules are for crimping on our nylon-coated cable to make a loop, available for all four standard cable sizes
Terminals are for crimping on our nylon-coated cable, to allow attaching the end with a screw
Cable Rings allow attaching Cable Assemblies to a diameter or radial groove and can be used with cable sizes #1, #2, and #3
Cable Tabs attach to our nylon-coated cable, to allow attaching the end with a screw, available in teardrop and rectangular shape
Plier-type cable crimping tool designed for manually crimping terminals and ferrules on cables. The standard crimping tool shown below can crimp #1 or #2 cables for ferrules CL-1-F, CL-2-F, and CL-4-F. All Carr Lane crimping tools are capable of bending, cutting, stripping, and crimping our nylon-coated cables and other electrical wiring. The handheld, manual crimpers provide enhanced mobility, making it easier to crimp cable and wiring in hard-to-reach areas. Additionally these Carr Lane crimping tools offer a user-friendly and effective solution to meet your specific application needs.
High-strength stranded wire cable with a green nylon coatin and a choice of four cable diameters
Index plungers are heavy-duty assemblies featuring a retractable, spring-loaded plunger and a corresponding locating bushing (sold separately). Tapered Index Plungers have a 15° taper on the plunger tip that matches the taper in the bushing, facilitating easier alignment and preventing binding during retraction. A straight plunger option is also available for slightly better positional accuracy. The plunger is fully retracted by a rotary-cam action when the handle is rotated 180°, with hardened steel cam surfaces for durability. The standard-mount configuration shown here includes a whistle notch on the Index Plunger to align with a setscrew. This configuration comes in three sizes, offering both inch and metric plunger diameters.
A precision locating pin is commonly used with a matching bushing to align two parts of a fixture. The pin’s head and shank diameters are concentric within .0005" TIR. Available in pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric). A precision bushing is used with a Bullet-Nose Dowel to align two components of a fixture. The bushing’s ID and OD are concentric within .0003" TIR. Available for pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric).
The threaded rest button features a hex head and is precision-machined to be .005 to .010" over the nominal height, allowing for finish grinding after installation. Screw rest buttons are ideal for use as supports and jig feet. They are available in thread sizes ranging from 1/4-20 to 1/2-13 (M6 to M12 in metric), with various height options to choose from.
Carr Lane Lock screws can be used on either the "slip" side or the "fixed" side of a slip/fixed renewable bushing. Lockscrews are the most popular locking device for renewable drill bushings. These Lockscrews are designed and manufactured to be simple, strong, compact, and economical. Carr Lane lockscrews are available in a wide variety of sizes to accommodate renewable bushings ranging from 3/16" to 5" body diameter. TW series also available for thin-wall bushings. These Lockscrews are now only available in packs of 5.
Slotted Locator Bushings are compatible with various alignment and locating pins to align two holes without binding. These precision bushings feature a tight tolerance in one direction and full relief in the perpendicular direction. . Available for pin diameters ranging from 3/16" to 1/2". An optional version in hardened 440C stainless steel is also available. These are available in knurled and press fit type.
Durable swivel head screw designed to accommodate various swivel feet. The knurled head ensures a secure grip, allowing for easy hand tightening in light clamping tasks. Knurled-head swivel-screw assemblies that combine the bodies and feet also in this category, available in multiple sizes and materials. Swivel head screws are available in four different variants, which includes small foot, large foot, ball foot, and bodies for swivel had screws. These are available in steel, stainless steel and steel with black oxide finish.
The precision height locator features a spherical-radius head designed to reduce the contact area with the workpiece. Its close-tolerance shank ensures a secure press-fit installation in a reamed hole. Spherical-radius locator buttons are ideal for use as supports, side locator pads, and jig feet. They are available with head diameters ranging from 3/16" to 3/8".
