CDT3...Z Series 3X

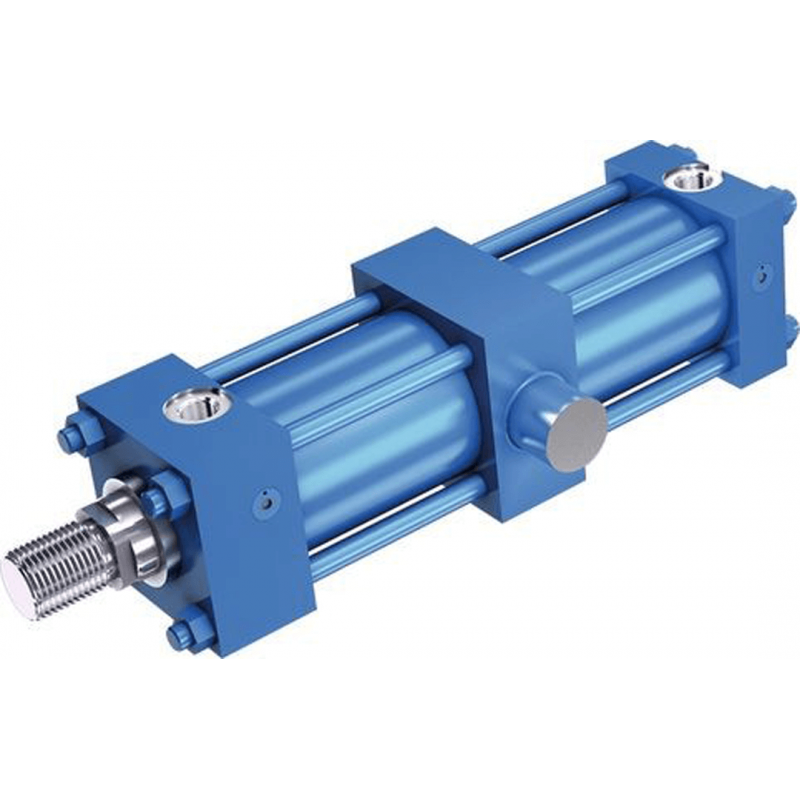

Bosch Rexroth Hydraulic Tie Rod Single Rod Cylinder CDT3...Z Series 3x

• Nominal pressure 160 bar
• Maximum operating pressure up to 210 bar
• Component series 3X

Features:

• Installation dimensions according to ISO 6020-2 and NF/ISO 6020-2
• 13 types of mounting
• Piston Ø (ØAL): 25 to 200 mm
• Piston rod Ø (ØMM): 12 to 140 mm
• Stroke lengths up to 3000 mm
• Integrated guide socket for fast and easy maintenance
• Self-adjusting or adjustable end position cushioning as option
• Patented safety vent for easy and safe bleeding
• Easy assembly thanks to freely selectable position of the line connections at head and base
