CST3...Z Series 3x
Tie rod single rod cylinder with position measurement system CST3
- Component series 3X
- Nominal pressure 160 bar
- Piston Ø 40 up to 200 mm
- Piston rod Ø 28 up to 140 mm
- Maximum stroke length 3000 mm
Description
Downloads

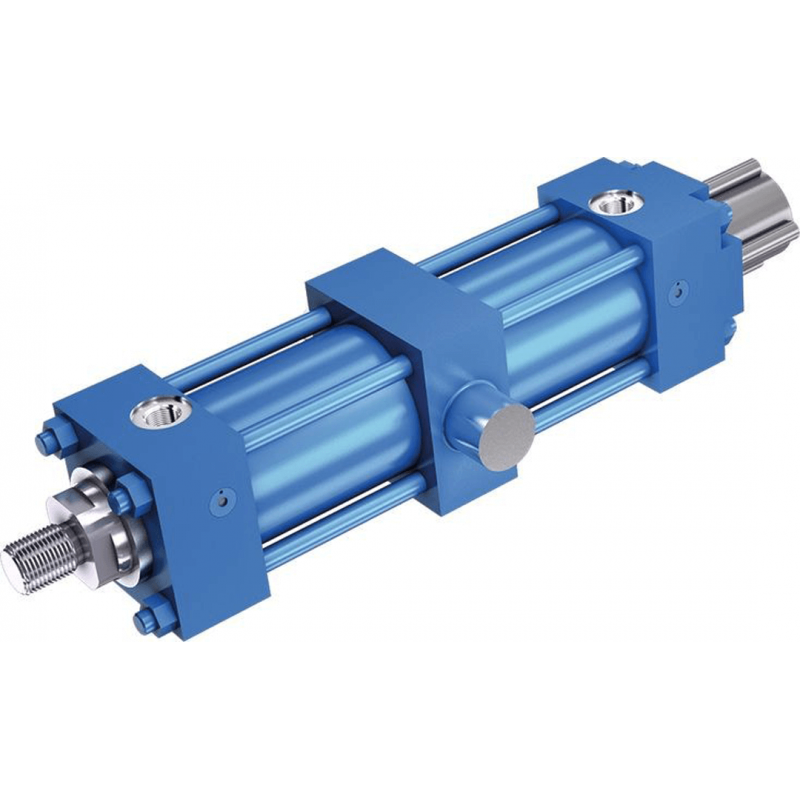

Bosch Rexroth Tie Rod Single Rod Cylinder with Position Measurement System CST3
- Component series 3X
- Nominal pressure 160 bar
- Piston Ø 40 up to 200 mm
- Piston rod Ø 28 up to 140 mm
- Maximum stroke length 3000 mm
Features:
- Installation dimensions according to Rexroth standard
- 5 types of mounting
- Piston Ø (ØAL): 40 … 200 mm
- Piston rod Ø (ØMM): 28 … 140 mm
- Stroke length up to 3000 mm
- Integrated guide socket for fast and easy maintenance
- Patented safety vent for easy and safe bleeding
- Easy assembly thanks to freely selectable position of the line connections at head and base
