Hydac Bell Housings with Flexible Pump Mounting with Oil /Air Cooler PTK Series
The HYDAC PTK Series Bell Housings combine flexible pump mounting with integrated oil/air cooling for efficient hydraulic system operation. Designed for IEC standard motors (1000–3000 rpm), they support both horizontal and vertical installation and are compatible with mineral oil and other fluids. Cooling is provided via a fan-driven oil/air cooler with a pressure rating up to 16 bar and a max oil temperature of +100°C.
Key Features:
- VDMA 24561 Form C design allows easy interchange with Forms A and B
- Integrated oil/air cooler with fan for effective temperature control
- Suitable for a wide range of motor sizes and hydraulic pump configurations
Description
Downloads

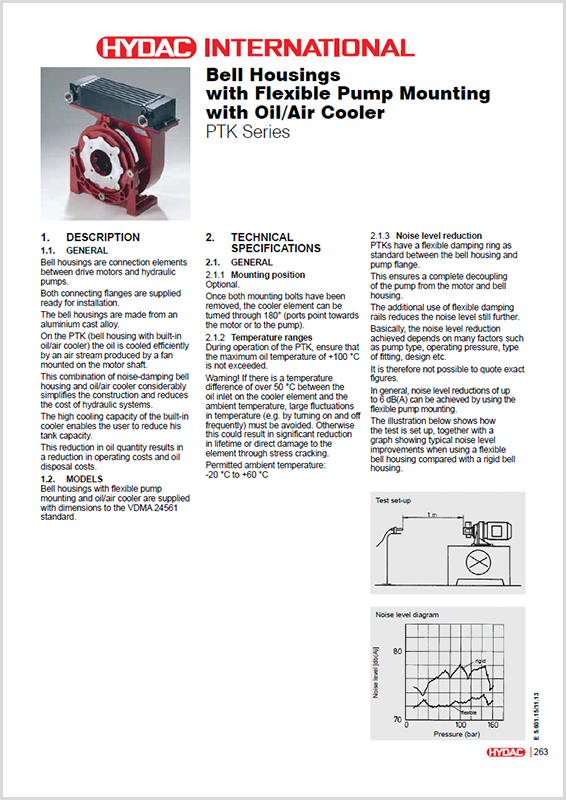

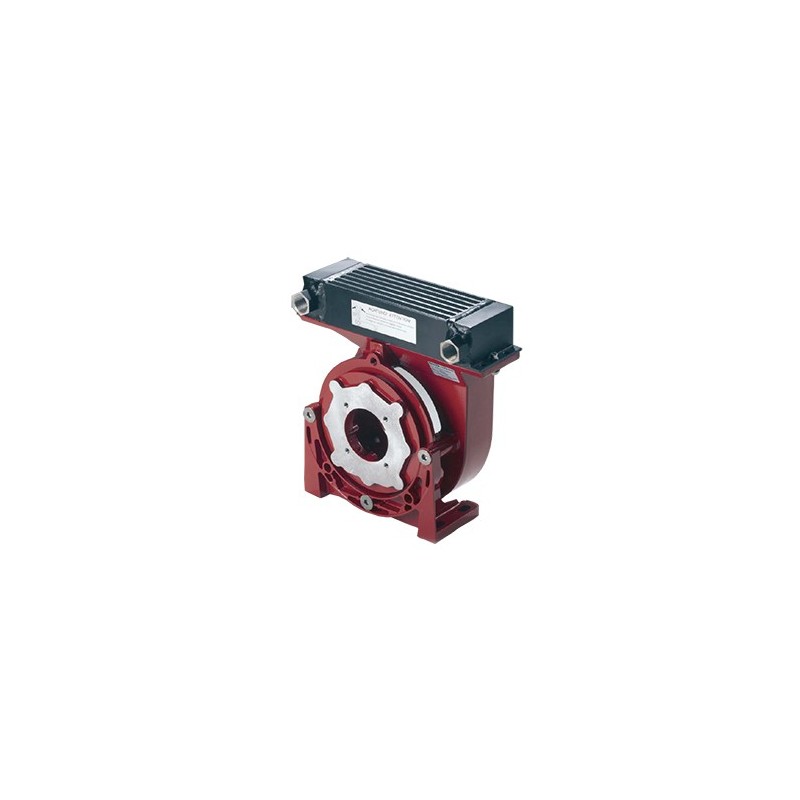

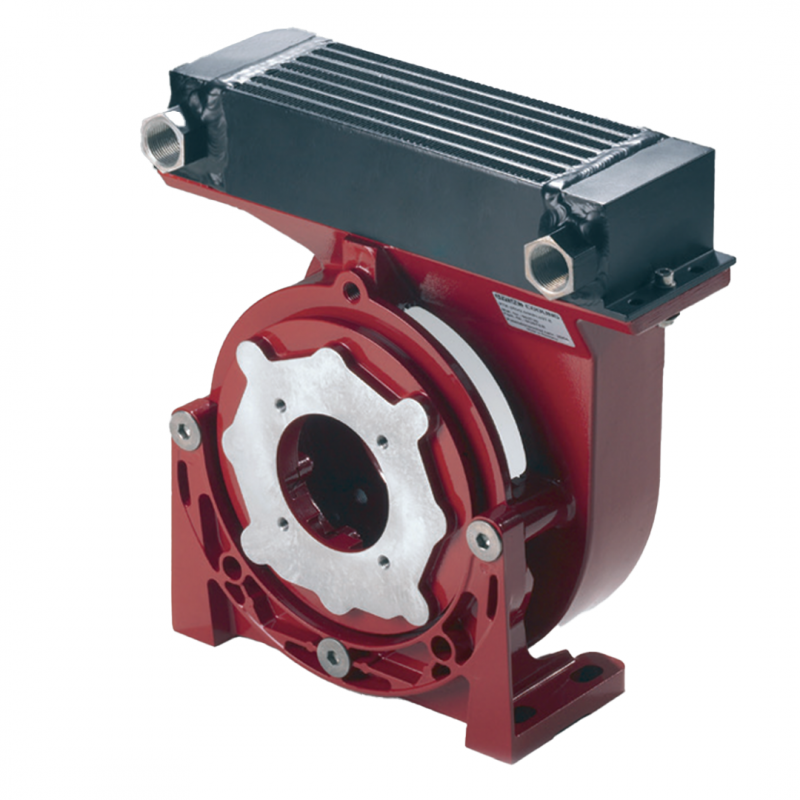

HYDAC Bell Housings with Flexible Pump Mounting with Oil/Air Cooler PTK Series
- Type of mounting B5, B35, V1, V15
- Mineral oil to DIN 51524, other fluids on request
- Optional with foot brackets
- Horizontal or vertical mounting possible
Features:
- Bell housings in accordance with VDMA 24561 Form C
- Unproblematic replacement of the forms A, B and C with one another possible in accordance with VDMA 24561
- Can be supplied for almost all hydraulic pumps
- Processing of both flange-mounting sides finished
- Bell housings with damping and cooling element (air-oil cooler)
- Fan (is mounted on the motor shaft) included in the scope of delivery
- For 2-pole, 4-pole, 6-pole IEC standard motors (1000 - 3000 U/min)
Cooler element:
- Supply and discharge with G3/4", flat-sealing
- max. 16 bar operating pressure
- max. permissible oil temperature +100°C
- The maximum temperature difference between oil inlet and ambient temperature may not exceed 50°C
Supplier program:
- Series 2001 for motor size 80 (0.55 - 0.75 KW with 1500 rpm)
- Series 200 for motor size 90S - 90L (1.1 - 1.5 KW with 1500 rpm)
- Series 250 for motor size 100L - 112M (2.2 - 4 KW with 1500 rpm)
- Series 300 for motor size 132S - 132M (5.5 - 7.5 KW with 1500 rpm)
- Series 350 for motor size 160M - 160L (11 - 15 KW with 1500 rpm)
- Series 3501 for motor size 180M - 180L (18.5 - 22 KW with 1500 rpm)
