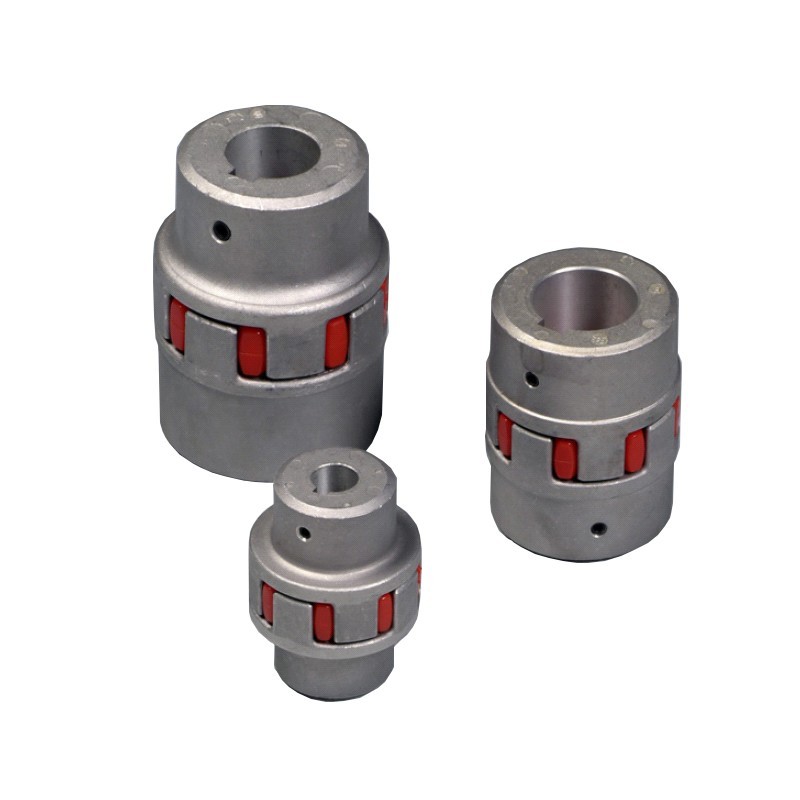

Hydac Flexible Drive (Spider) Couplings
HYDAC Spider Couplings provide reliable, torsionally flexible connections with excellent vibration damping, thanks to a precision-molded polyurethane elastomer insert (98° Shore A). Designed for compression-only loading, these couplings are failsafe, maintenance-free, and accommodate axial, radial, and angular misalignment with ease.
Temperature Range:
- -30 °C to +90 °C for continuous operation
- -40 °C to +120 °C for short-term operation
Description
Downloads

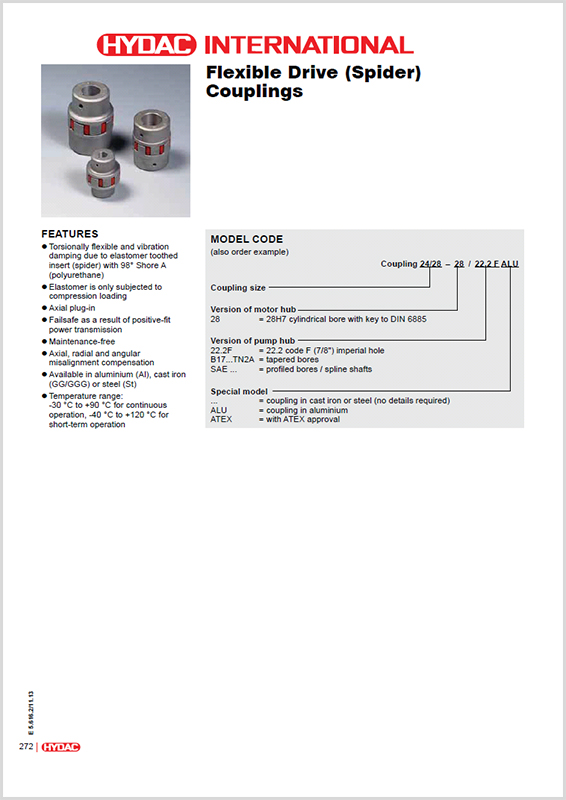

HYDAC Flexible Drive (Spider) Couplings
Temperature range:
- -30 °C to +90 °C for continuous operation
- -40 °C to +120 °C for short-term operation
Features:
- Torsionally flexible and vibration damping due to elastomer toothed insert (spider) with 98° Shore A (polyurethane)
- Elastomer is only subjected to compression loading
- Axial plug-in
- Failsafe as a result of positive-fit power transmission
- Maintenance-free
- Axial, radial and angular misalignment compensation
- Available in aluminium (Al), cast iron (GG/GGG) or steel (St)
