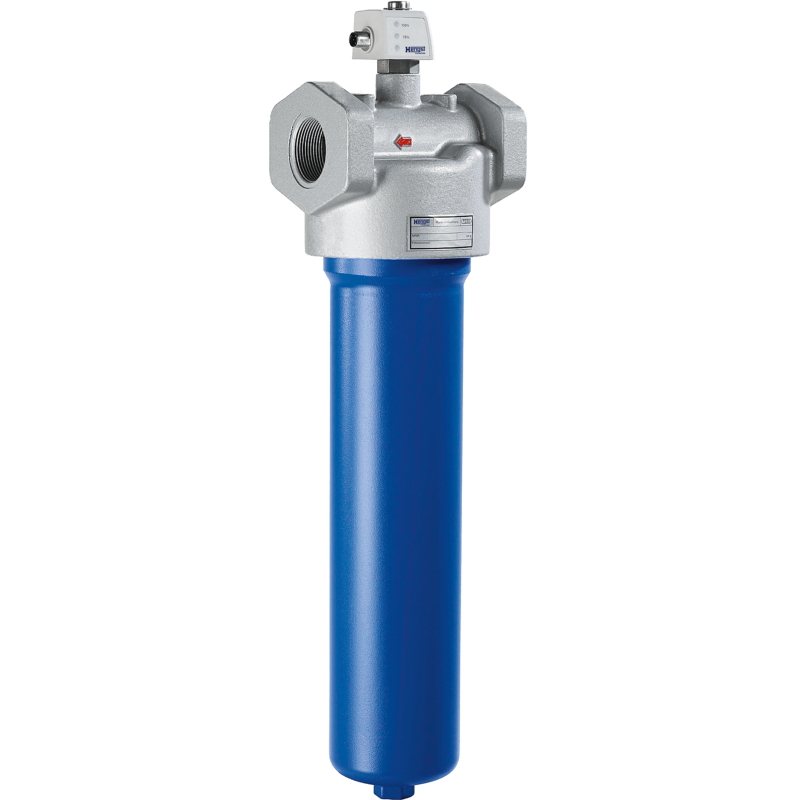

Hengst inline filter with filter element Type 245 LE(N)

Hengst inline filter with filter element Type 245 LE(N)

• Size according to DIN 24550: 0040 to 0400
• additional sizes: 0130, 0150
• Nominal pressure 250 bar [3628 psi]
• Connection up to G1 1/2; SAE 1 1/2; SAE 24
• Operating temperature: –10 °C to +100 °C [+14 °F to +212 °F]

Features:

Inline filters are used in hydraulic systems for separating solid materials from the hydraulic fluids and lubricating oils. They are intended for installation into pipelines.

They distinguish themselves by the following:

• Filters for inline installation
• Special highly efficient filter materials
• Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
• High collapse resistance of the filter elements
• By default equipped with mechanical optical maintenance indicator with memory function
• Various, optional electronic switching elements, modular design
• Optional bypass valve integrated in the filter housing
• High filtration performance due to the tangential cyclone-effect flow path
