Pumps

The HYDAC PPV100S Series Axial Piston Pump delivers high-efficiency hydraulic performance with precise control and robust design for demanding industrial and mobile applications. Designed for flexibility, it supports multiple pump combinations, pressure settings up to 350 bar, and operation with a variety of hydraulic fluids.

Key Features:

• High Pressure: Rated up to 315 bar (peak 350 bar)
• Fluid Versatility: Compatible with HL, HLP, HFC, HFD-R, and HFD-U fluids
• Adjustable Performance: Tuneable flow, pressure, and multiple control options

The HYDAC PVF100 Series Pump is designed for reliable hydraulic performance with mineral oil, synthetic, and water-glycol-based fluids. Equipped with NBR or optional FPM seals for aggressive fluids, it supports a wide viscosity range and precise operating conditions, ensuring long service life and smooth system operation. Its flexible mounting options and attention to suction and commissioning requirements make it ideal for demanding industrial applications.

Key Features:

• Fluid Compatibility: Supports mineral oil, phosphate ester, polyol ester, and water-glycol fluids
• Operating Range: Handles 20–400 cSt viscosity and 0–70 °C temperature
• Durable Design: NBR or FPM seals and precise mounting ensure reliable operation

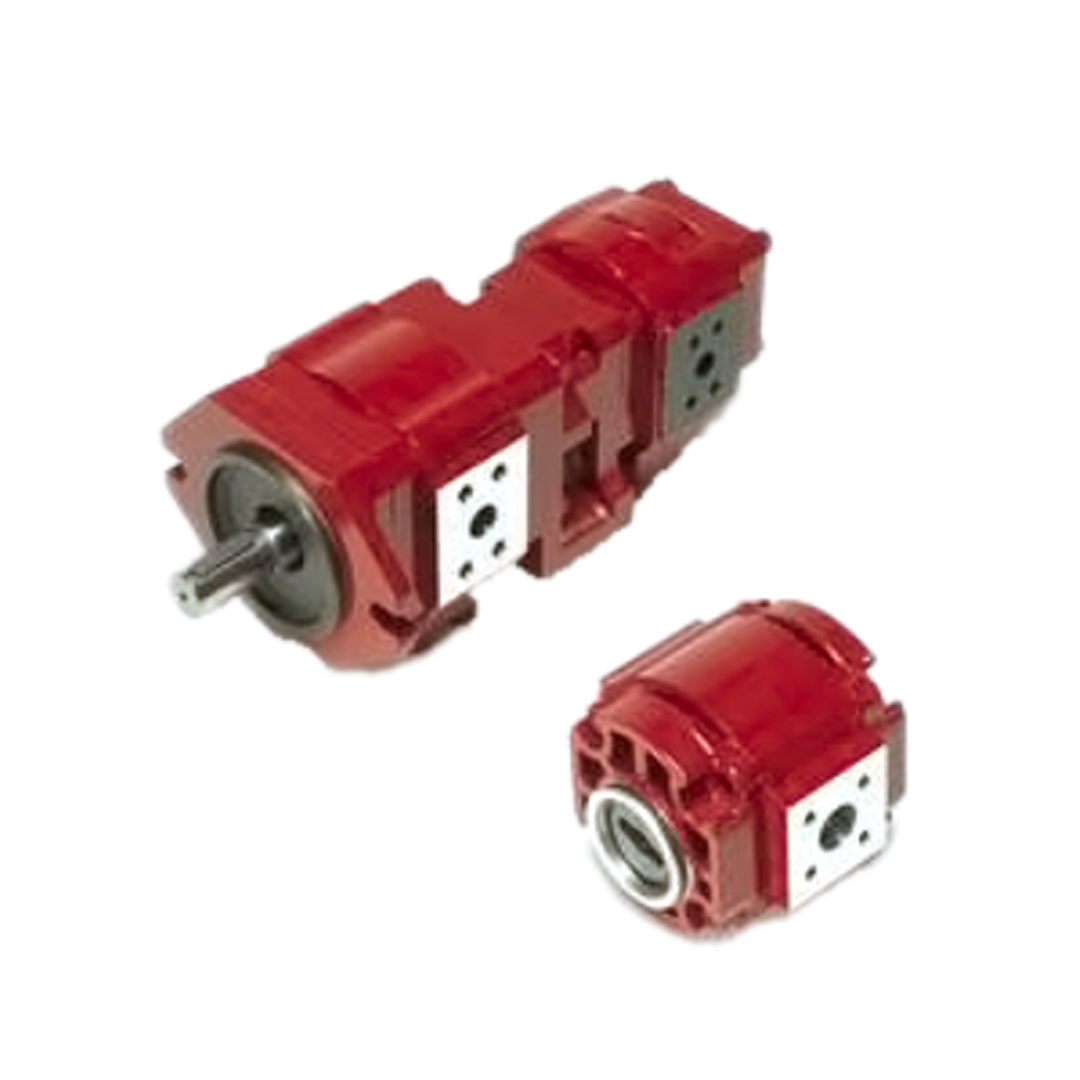

The HYDAC PGI100 Series Internal Gear Pump is engineered for high-performance hydraulic systems using HLP hydraulic oil and compatible environmentally friendly or fire-resistant fluids upon consultation. Designed for versatility and reliability, it operates efficiently across a wide temperature and viscosity range, ensuring long service life with proper filtration and installation.

Key Features:

• Fluid Versatility: Compatible with HLP and approved synthetic or eco-friendly fluids
• Wide Operating Range: Works from -20 °C to 100 °C and 10–2,000 cSt viscosity
• Long Service Life: Optimized through effective filtration and precise installation

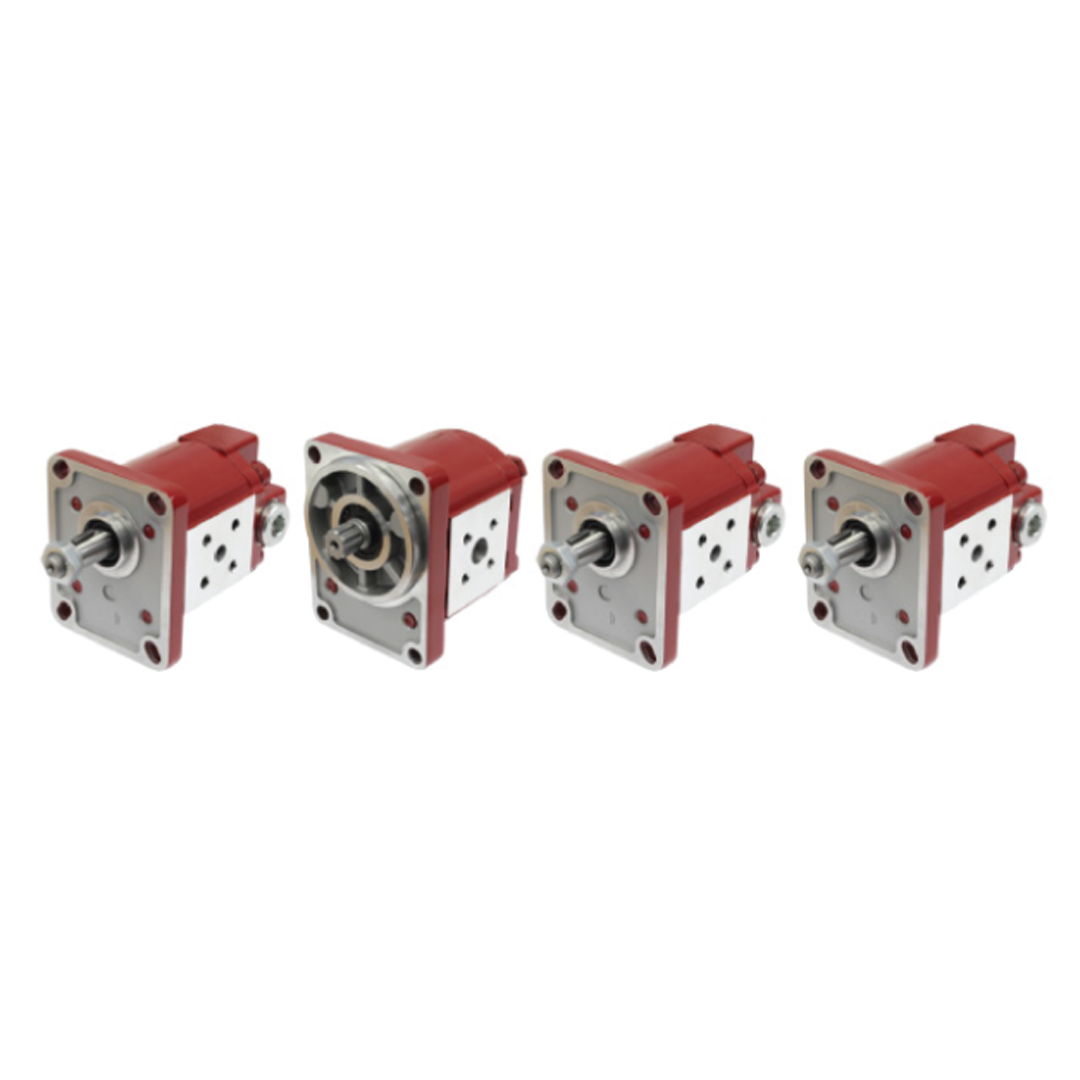

HYDAC External Gear Pumps Size 0 – PGE100 deliver reliable performance with robust NBR sealing, efficient filtration, and flexible installation options. Built for durability and precision, they provide smooth, consistent operation across a variety of hydraulic applications.

Key Features:

• NBR Seals: Compatible with standard hydraulic fluids; other materials on request
• Clean Operation: Filtration up to ISO 19/17/14 ensures long service life
• Easy Installation: Horizontal or vertical mounting with precise shaft alignment

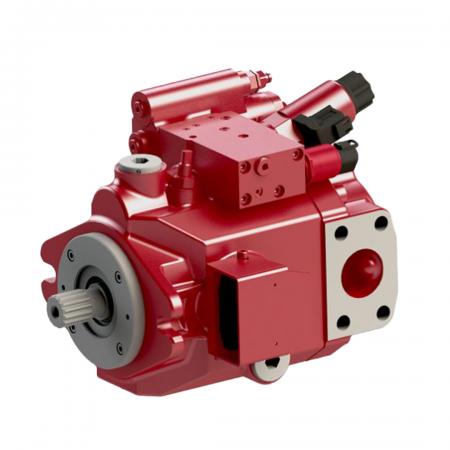

The PPV100M/PVV100M hydraulic pump series offers versatile configuration options with through-drives for multi-pump setups. Its modular controllers deliver precise, energy-efficient displacement control for high-performance mobile machinery.

Key Features:

• Wide range of through-drives supports flexible multi-pump combinations
• Modular control options ensure continuous, energy-saving displacement adjustment

• Axial piston design using the swash-plate principle for reliable open-loop operation

The HYDAC PVF101 Series Pump handles mineral oil, synthetic, and aqueous hydraulic fluids, providing reliable operation across viscosities of 20–400 cSt and temperatures up to 70 °C (50 °C for aqueous fluids). Its NBR or optional FPM seals, flexible mounting, and controlled suction ensure long service life and smooth performance in demanding hydraulic systems.

Key Features:

• Compatible with mineral oil, synthetic (HFD-R, HFD-U), and aqueous (HFC) fluids.
• Operates reliably across a wide viscosity (20–400 cSt) and temperature range
• Equipped with NBR or FPM seals, flexible coupling mounting, and controlled suction for extended pump life

The HYDAC PGI101 Series Internal Gear Pump delivers reliable performance for demanding hydraulic systems using HLP oils and approved synthetic or eco-friendly fluids. Featuring robust Viton seals, a wide operating range, and flexible installation options, it ensures efficient, long-lasting operation in single or multiple pump setups.

Key Features:

• Fluid Compatibility: Suitable for HLP and approved eco-friendly or fire-resistant fluids
• Wide Operating Range: Functions from -20 °C to 100 °C and 10–2,000 cSt viscosity
• Durable Design: Equipped with Viton seals for strength and chemical resistance

HYDAC External Gear Pumps Size 1 – PGE101 provide dependable hydraulic performance with durable NBR sealing, high filtration standards, and versatile installation options. Engineered for strength and efficiency, they ensure smooth, long-lasting operation in medium-duty hydraulic systems.

Key Features:

• NBR Seals: Reliable with standard fluids.
• Clean Operation: ISO 19/17/14 filtration.
• Easy Mounting: Horizontal or vertical installation.

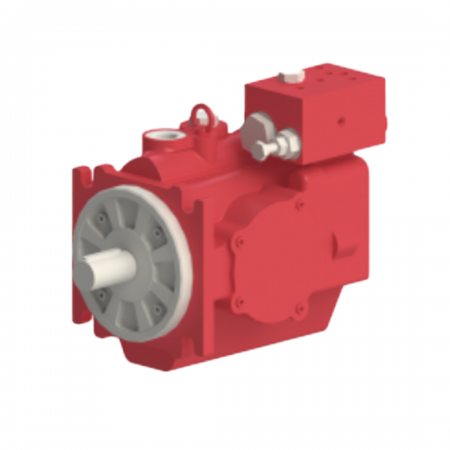

The PPV 100 is a medium heavy-duty piston pump engineered for consistent hydraulic performance and long service life. Its versatile control and mounting options make it ideal for a wide range of industrial applications.

Key Features:

• 100 cm³/rev displacement with flange mounting
• Multiple control options, including pressure, torque, and load-sensing
• Robust keyed-shaft design built to global standards

The PVV100 pump series offers flexible installation options with precise suction, return, and drain line requirements to ensure optimal performance and longevity. Proper coupling, venting, and commissioning procedures guarantee safe and efficient operation across all pump sizes.

Key Features:

• Flexible Installation: Size 1 any position; sizes 2 & 3 horizontal with compensator on top
• Suction & Drain: Correct line size and direct tank return to prevent foaming
• Safe Commissioning: Gear coupling only, venting via air bleed, maintain ≤20 °C oil-to-ambient difference

The HYDAC PGI102 Series Internal Gear Pump delivers high-pressure performance and durability for demanding hydraulic systems. Compatible with HLP and approved synthetic or fire-resistant fluids, it features robust Viton seals, wide operating ranges, and options for multiple pump configurations to ensure reliable, efficient operation.

Key Features:

• Fluid Compatibility: Supports HLP and approved eco-friendly or fire-resistant fluids
• Wide Operating Range: Functions from -20 °C to 100 °C and 10–2,000 cSt viscosity
• High Performance: Handles pressures up to 330 bar with durable Viton seals

HYDAC External Gear Pumps Size 2 – PGE102 provide powerful, efficient hydraulic performance with durable NBR sealing and precise construction for demanding system requirements.
Designed for reliability and versatility, they ensure smooth operation and long service life across various industrial and mobile applications.

Key Features:

• NBR Seals: Durable and compatible with standard fluids
• High Cleanliness: ISO 19/17/14 filtration for extended life
• Flexible Mounting: Horizontal or vertical installation options
