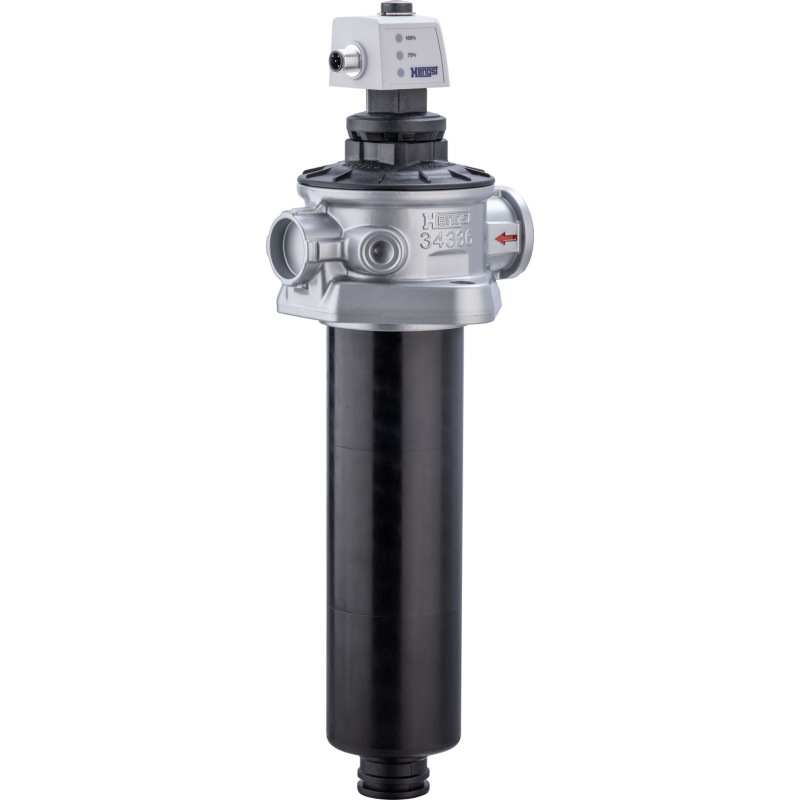

Hengst Tank mounted return line filter with filter element
Tank-mounted return line filters are designed for installation on liquid containers in a hydraulic or lubrication system. They are used for the filtration of solids from liquids.
Hengst - Formerly Bosch Rexroth Filtration
Products
Downloads
Description
| Part Number | Material Number | Filter Media | Price | Add to Parts List |
|---|---|---|---|---|
| 10TEN0100-H10XLA00-V2,2-M-R4 | R928019846 | Non-woven glass fiber media, not cleanable | £192.78 £231.34 Inc. VAT |
|
Hengst Tank mounted return line filter with filter element
- Size according to DIN 24550: 0040 to 1000
- additional sizes: 2000, 2500
- Nominal pressure 10 bar [145 psi]
- Connection up to 4”
- Operating temperature NBR: -40 °C to 100 °C [-40 °F to 212 °F]; FKM: -20 °C to 100 °C [-4 °F to 212 °F]
They distinguish themselves by the following:
- Filter for tank mounting
- Special highly efficient filter materials
- Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
- High collapse resistance of the filter elements
- Optionally equipped with mechanical optical maintenance indicator with memory function
- Available as an option with different electrical switching elements, modular design
- By default, the filters are equipped with a bypass valve integrated in the filter housing
- Optional measuring port
