MC Series for 5-axis Machining

MC Series for 5-axis Machining

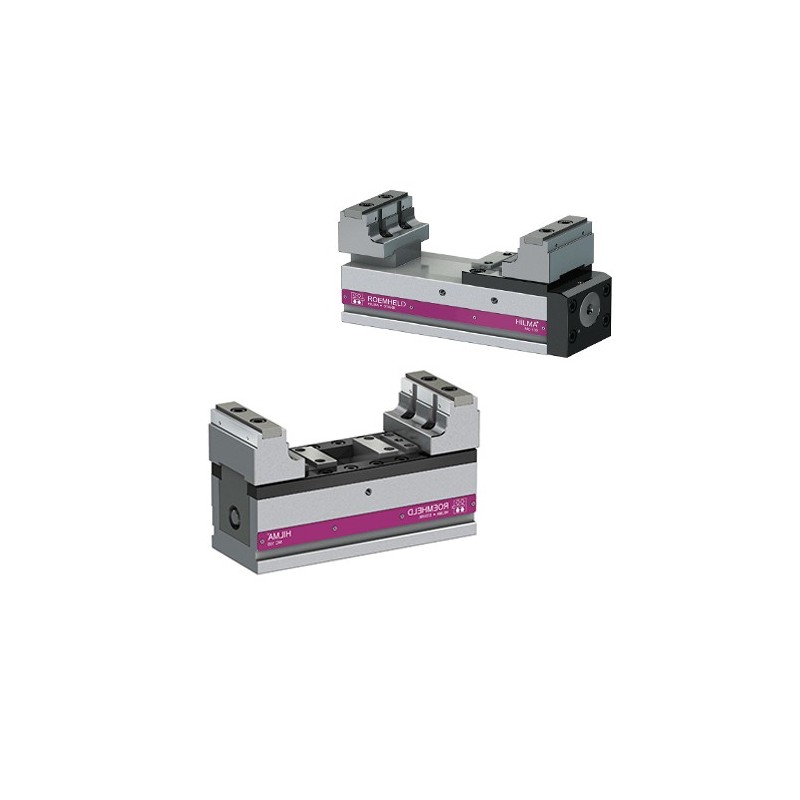

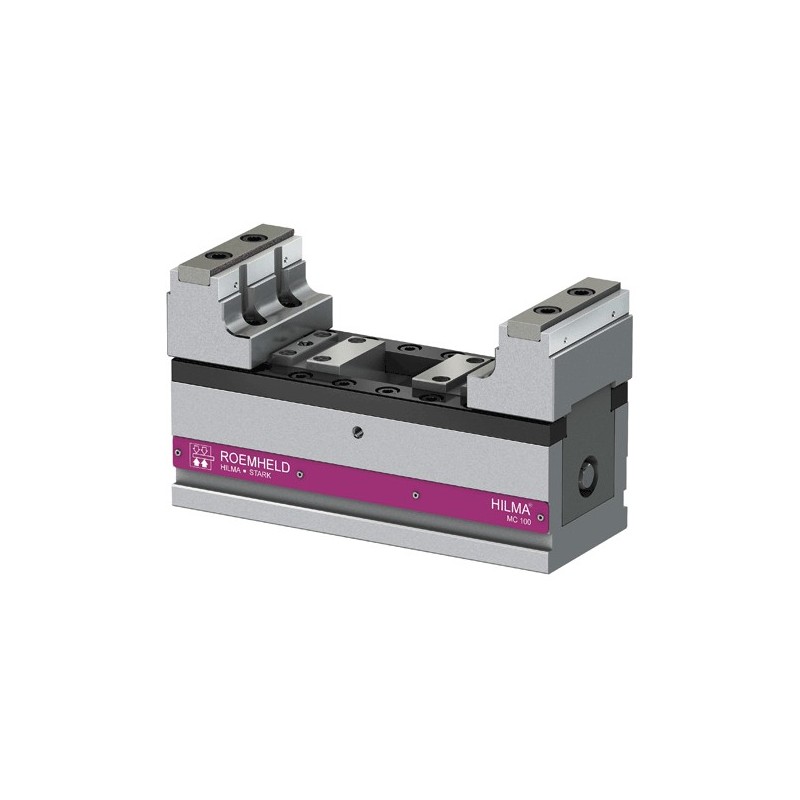

MC concentric for 5-axis machining:

• Concentric clamping
• Mechanically or hydraulically operated
• Sizes 40, 60, 100, 125mm (mechanical)
• Size 100 mm (hydraulic)

Max. Clamping Force:

• MC 40: 8 kN at 23 Nm
• MC 60: 15 kN at 50 Nm
• MC 100: 25 kN at 80 Nm
• MC 100: 20 kN at 200 bar
• MC 125: 35 kN at 200 Nm / same for "Compact"

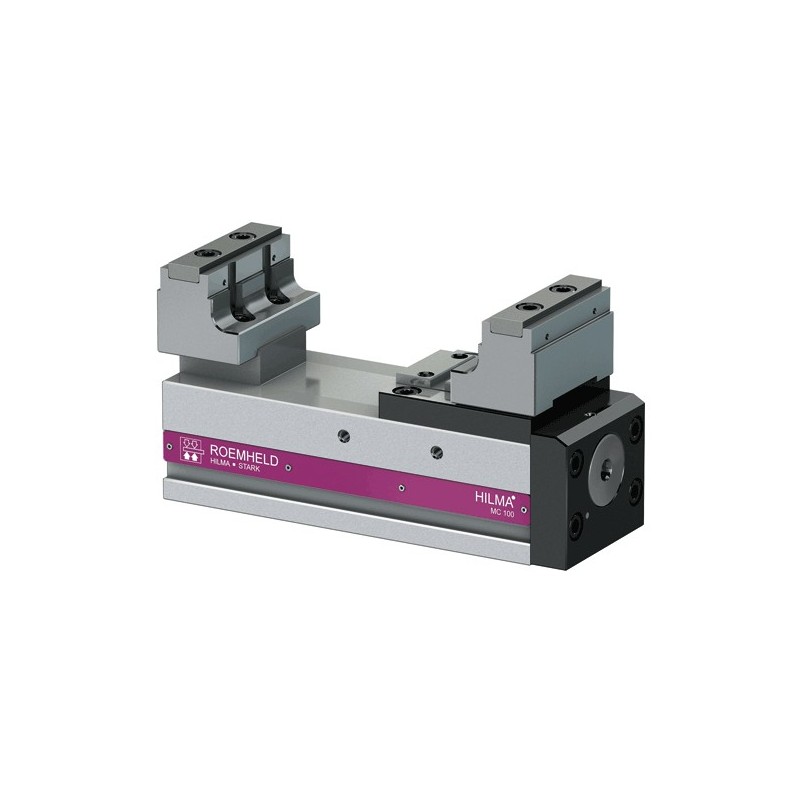

MC fixed jaw for 5-axis machining:

• Clamping against the fixed jaw
• Mechanically or hydraulically operated
• Sizes 40, 60, 100mm (mechanical)
• Size 60 mm (hydraulic)

Max. Clamping Force:

• MC 40: 8 kN at 15 Nm
• MC 60: 15 kN at 25 Nm
• MC 60: 15 kN at 260 bar
• MC 100: 25 kN at 60 Nm

Ideal for use on 5-axis machining centres and pallet systems the compact design enables machining of the workpiece from all sides and ensures collision-free tool paths. This fulfils the basic requirements for dependable 5-axis machining. Can be used for clamping both unmachined and machined parts, jaws with interchangeable jaw inserts manage every clamping task with minimum set-up effort. First and second clamping with a single clamping system – without having to change jaws.

The wide selection of systems in the MC series ensures you always have the perfect clamping system for your individual machining tasks, wether its concentric or clamping against the fixed jaw. The hydraulic systems are particularly suited to applications in automated production processes. The compact design enables the use of standard tools which means that investment in this special clamping technology pays off quickly. Very good protection against swarf thanks to closed lead screw area. Durability and low cleaning effort are further characteristics which distinguish HILMA's 5-axis clamping systems.
