Single Acting Block Cylinders with and without Spring Return

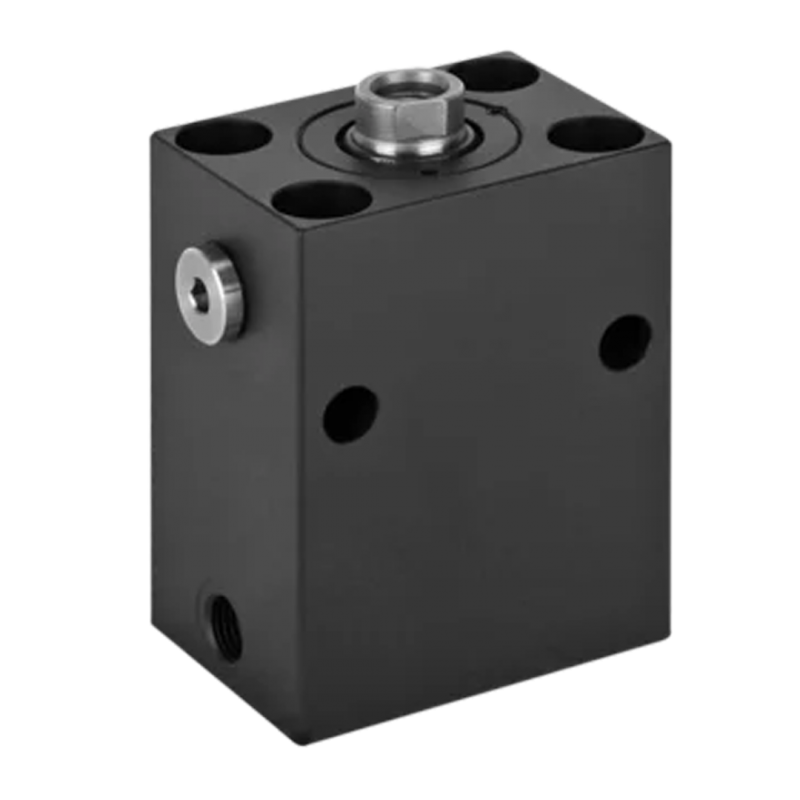

ROEMHELD B1.5091 Block Cylinders: single acting, with and without spring return.
- Operating pressure 500 bar maximum
- With and without spring return
- Piston diameter ranges from 16 to 100 mm
- Rod diameter ranges from 10 to 63 mm
- Stroke 8 - 100 mm
- Maximum push force 10 - 392 kN
Single Acting Block Cylinders with and without Spring Return - ROEMHELD B1.5091
- Max. operating pressure 500 bar
- With and without spring return
- Piston diameter: 16 - 100 mm
- Rod diameter: 10 - 63 mm
- Stroke: 8 - 100 mm
- Max. push force: 10 - 392 kN
Advantages:
- 8 sizes each with 2 stroke lengths available
- Large range of diameter Piston Ø 16 up to 100 mm
- Large range of stroke 8 up to 100 mm
- Large range of force
-2 kN for piston Ø 16 mm and 100 bar
-392 kN for piston Ø 100 mm and 500 bar - Large retention force
- Compact block design
- Many fixing possibilities
- Many connecting possibilities
- Case-hardened piston rod
- Alternatively NBR or FKM seals and wiper
- Operating temperature up to 200 °C with FKM seals
- Minimum leakage
- Maintenance free
Application:
Single-acting block cylinders can be used for all hydraulically-operated linear movements that do not require a retraction force or where the piston is retracted by an external force.
- Positioning
- Moving
- Clamping
- Closing
- Supporting
- Locking
- Locking
- Lifting
- Riveting
- Pushing
Function:
With spring return
When pressurising the cylinder the piston extends. After pressure relief, the piston is retracted by spring force. The pressure spring must not only overcome the friction forces, but must also supply the hydraulic oil back to the reservoir.
Without spring return
When pressurising the cylinder the piston extends. After pressure relief, the piston must be retracted by an external force. Since no pressure spring is installed, this single-acting block cylinder has the same stroke as the double acting version with the same length.
