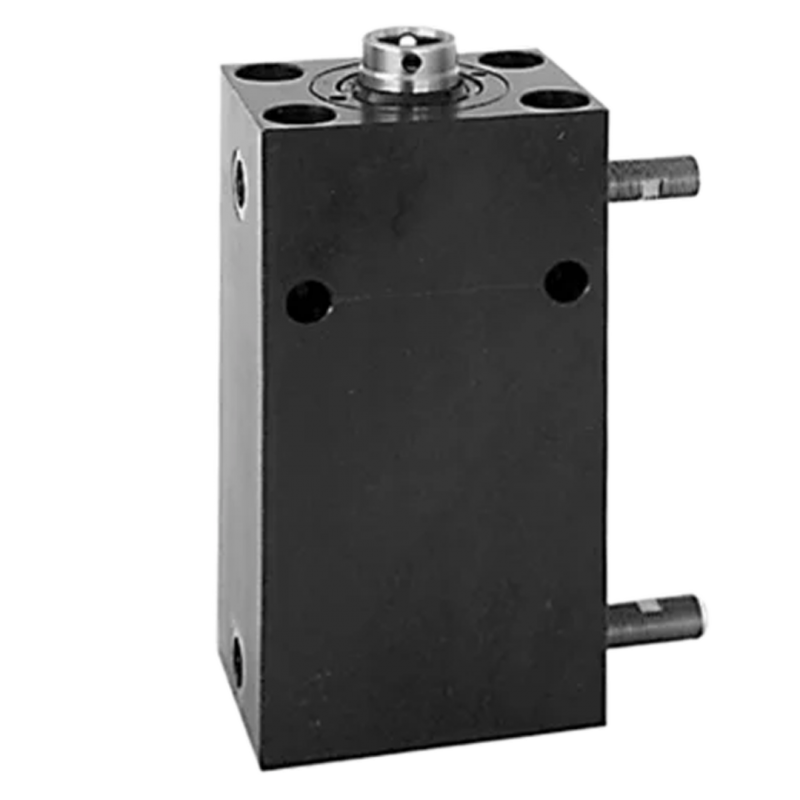

Double Acting Block Cylinders for Stroke End Control
ROEMHELD B1.520 Double Acting Block Cylinders for Stroke End Control, the stroke end control supplies the required information about the position of the piston.
- Operating pressure 500 bar maximum
- Piston diameter ranges from 16 to 100 mm
- Rod diameter ranges from 10 to 63 mm
- Stroke: 16 - 100 mm
- Maximum push force: 10 - 392 kN
This cylinder for a stroke end control supplies the required information about the position of the piston. Control is made by pressure-proof sensors, which are fixed at the corresponding stroke end of the cylinder piston in the body.
Double Acting Block Cylinders for Stroke End Control - ROEMHELD B1.520
- Max. operating pressure 500 bar
- Piston diameter: 16 - 100 mm
- Rod diameter: 10 - 63 mm
- Stroke: 16 - 100 mm
- Max. push force: 10 - 392 kN
Advantages:
- Compact design

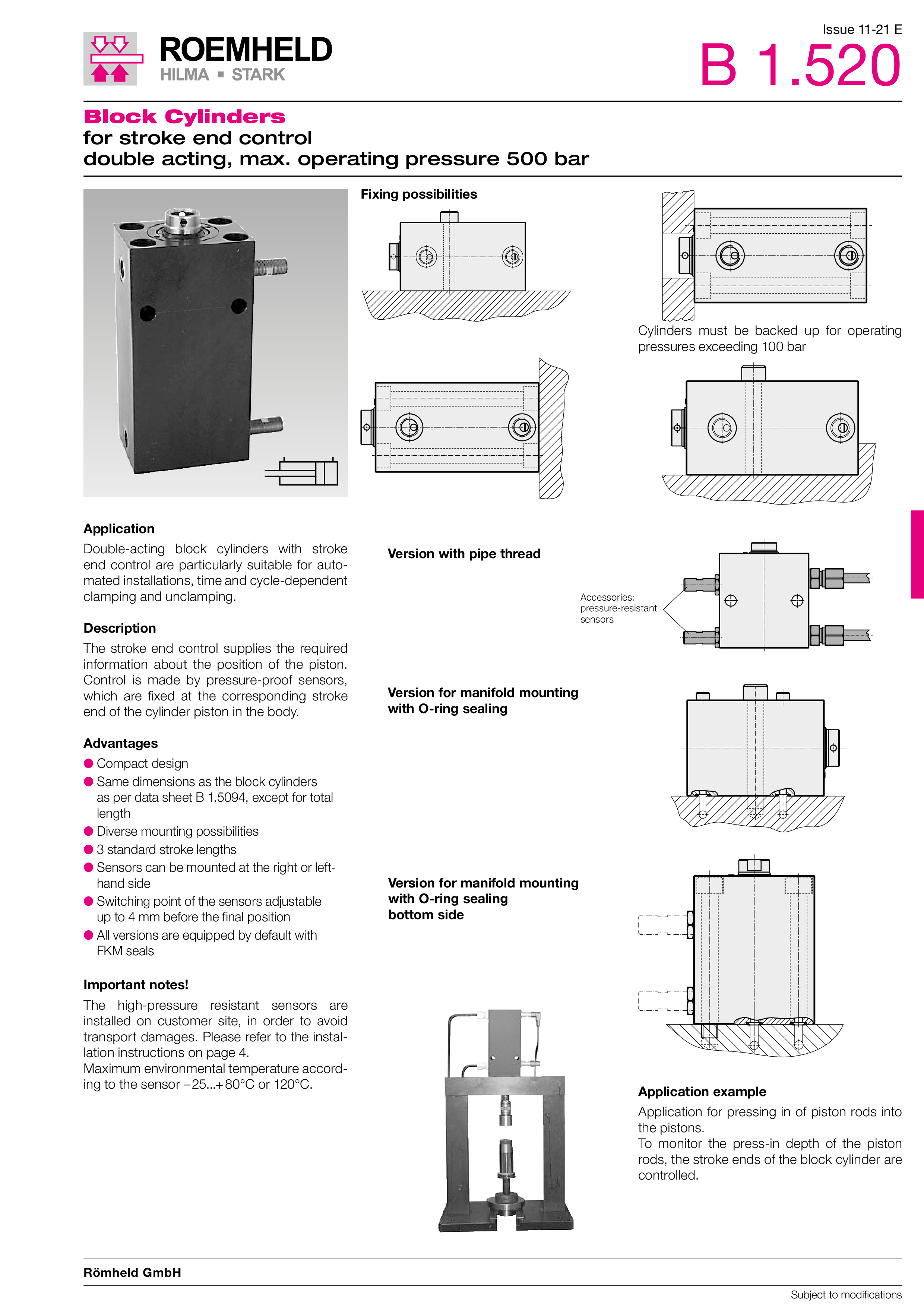

- Same dimensions as the block cylinders as per data sheet B 1.5094, except for total length
- Diverse mounting possibilities
- 3 standard stroke lengths
- Sensors can be mounted at the right or lefthand side
- Switching point of the sensors adjustable up to 5 mm before the final position
- All versions are equipped by default with FKM seals
Application:
Double-acting block cylinders with stroke end control are particularly suitable for automated installations, time and cycle-dependent clamping and unclamping.
Description:
The stroke end control supplies the required information about the position of the piston. Control is made by pressure-proof sensors, which are fixed at the corresponding stroke end of the cylinder piston in the body.
