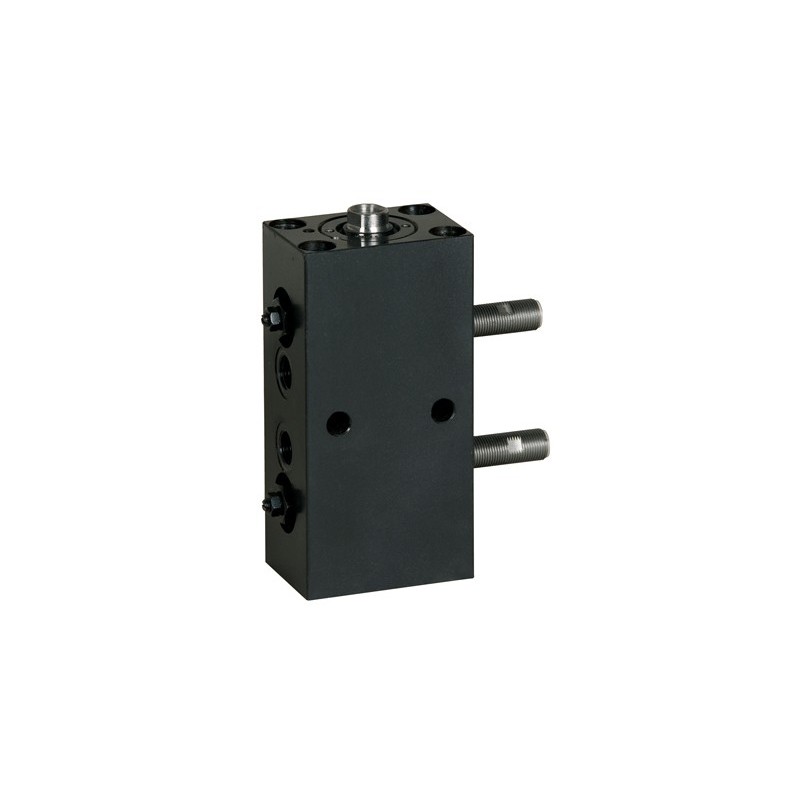

Block Cylinders with Adjustable Stroke End Cushioning
ROEMHELD B1.530 Block Cylinders: with adjustable stroke end cushioning and optional stroke end control double acting
- Maximum operating pressure 500 bar
- Piston diameter 25 - 100 mm
- Rod diameter 16 - 63 mm
- Stroke 25 - 100 mm
- Maximum push force 24.5 - 392 kN

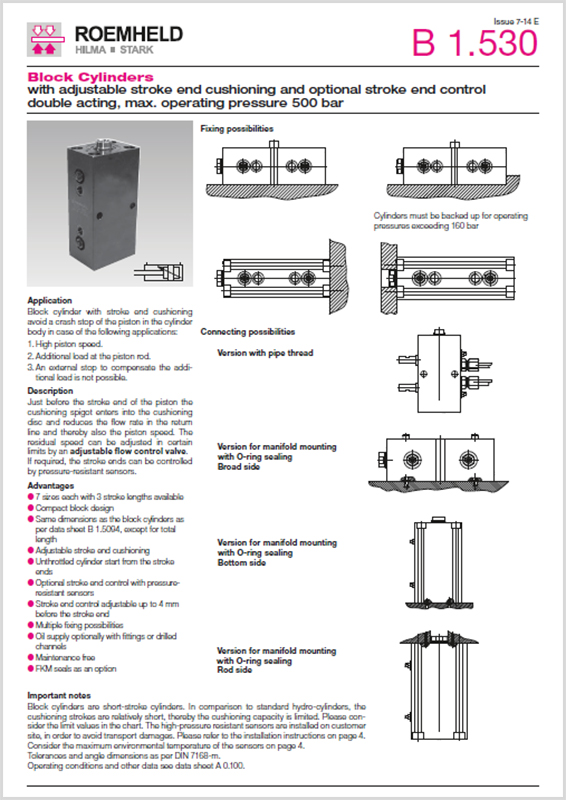

Block Cylinders with Adjustable Stroke End Cushioning - ROEMHELD B1.530
- Max. operating pressure 500 bar
- Piston diameter: 25 - 100 mm
- Rod diameter: 16 - 63 mm
- Stroke: 25 - 100 mm
- Max. push force: 24.5 - 392 kN
Advantages:
- 7 sizes each with 3 stroke lengths available
- Compact block design
- Same dimensions as the block cylinders as per data sheet B 1.5094, except for total length
- Adjustable stroke end cushioning
- Unthrottled cylinder start from the stroke ends
- Optional stroke end control with pressureresistant sensors
- Stroke end control adjustable up to 4 mm before the stroke end
- Multiple fixing possibilities
- Oil supply optionally with fittings or drilled channels
- Maintenance free
Application:
Block cylinder with stroke end cushioning avoid a crash stop of the piston in the cylinder body in case of the following applications:
- High piston speed
- Additional load at the piston rod
- An external stop to compensate the additional load is not possible
Description:
Just before the stroke end of the piston the cushioning spigot enters into the cushioning disc and reduces the flow rate in the return line and thereby also the piston speed. The residual speed can be adjusted in certain limits by an adjustable flow control valve. If required, the stroke ends can be controlled by pressure-resistant sensors.
