Built-In Elements

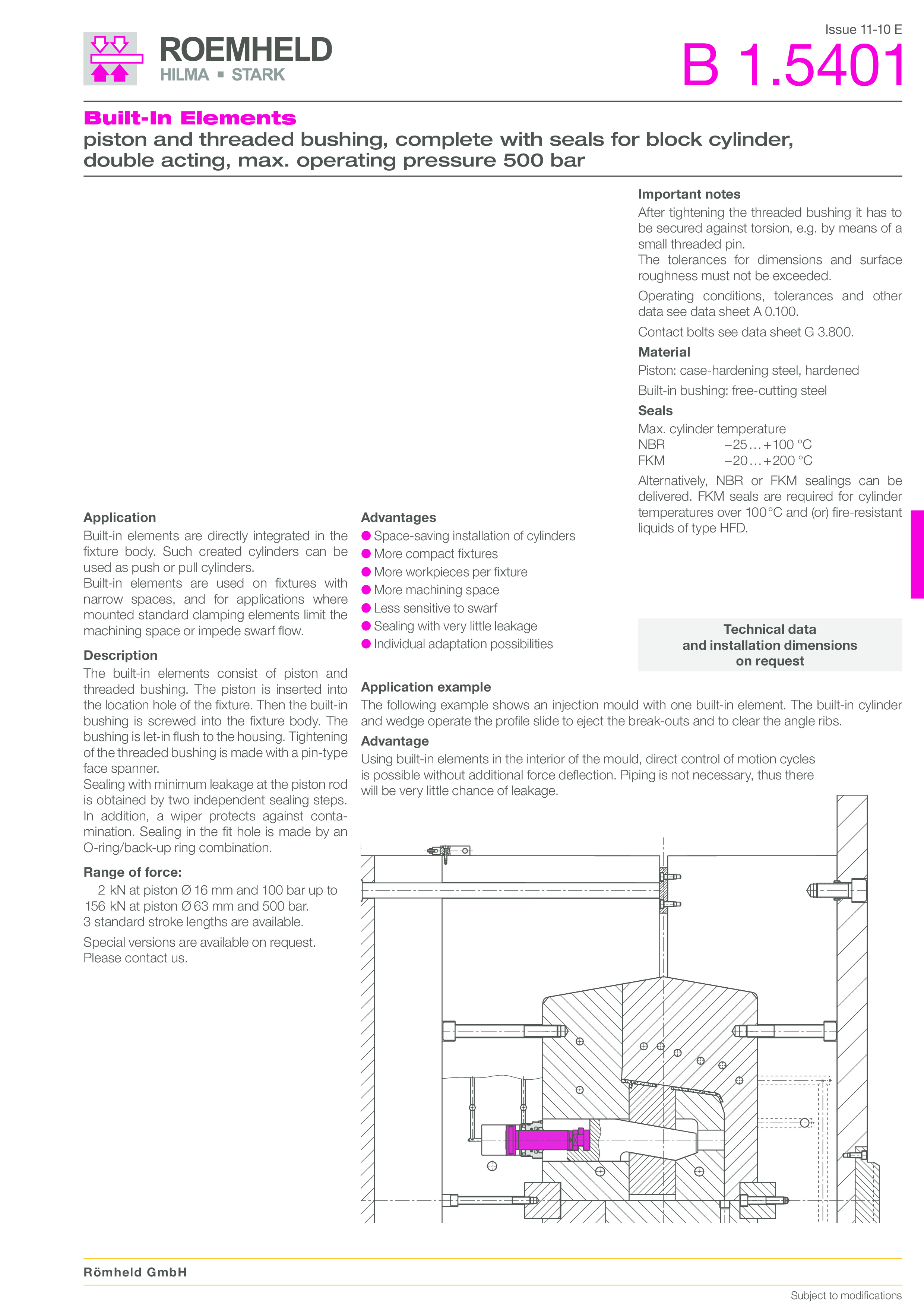

ROEMHELD B1.5401 Built-in Elements with seals for block cylinders, the built-in elements consist of piston and threaded bushing
- Operating pressure 500 bar maximum
- Piston diameter ranges from 25 to 100 mm
- Rod diameter ranges from 16 to 63 mm
- Stroke ranges from 16 to 100 mm
- Maximum push force: 24.5 - 392 kN

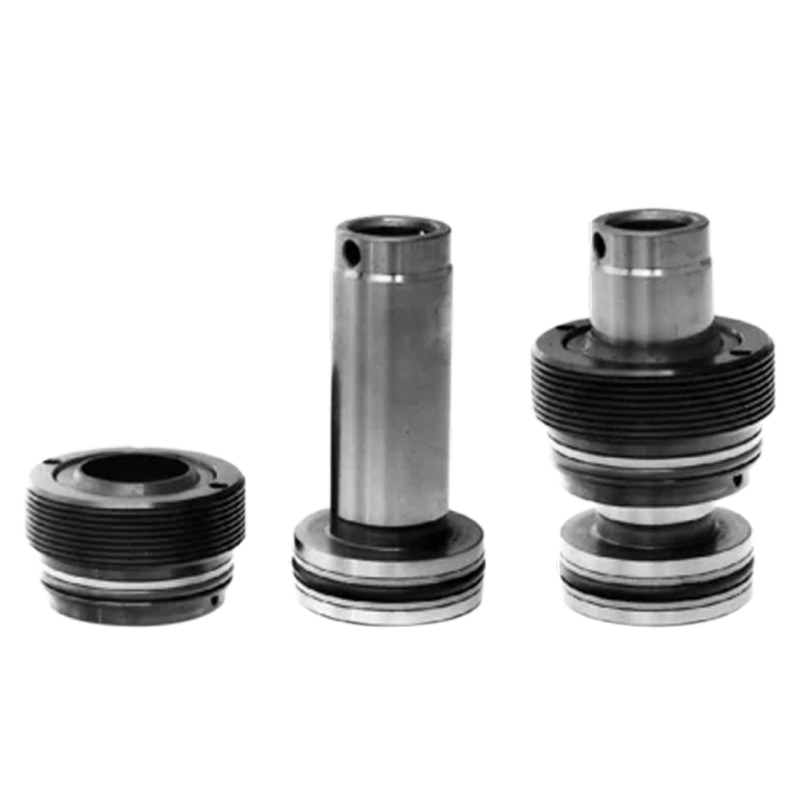

These built-in elements consist of piston and threaded bushing. The piston is inserted into the location hole of the fixture. Then the built-in bushing is screwed into the fixture body. The bushing is let-in flush to the housing. Tightening of the threaded bushing is made with a pin-type face spanner.
Built-in Elements - ROEMHELD B1.5401
- Max. operating pressure 500 bar
- Piston diameter: 25 - 100 mm
- Rod diameter: 16 - 63 mm
- Stroke: 16 - 100 mm
- Max. push force: 24.5 - 392 kN
Advantages:
- Space-saving installation of cylinders
- More compact fixtures
- More workpieces per fixture
- More machining space
- Less sensitive to swarf
- Sealing with very little leakage
- Individual adaptation possibilities
Application:
Built-in elements are directly integrated in the fixture body. Such created cylinders can be used as push or pull cylinders. Built-in elements are used on fixtures with narrow spaces, and for applications where mounted standard clamping elements limit the machining space or impede swarf flow.
Description:
The built-in elements consist of piston and threaded bushing. The piston is inserted into the location hole of the fixture. Then the built-in bushing is screwed into the fixture body. The bushing is let-in flush to the housing. Tightening of the threaded bushing is made with a pin-type face spanner. Sealing with minimum leakage at the piston rod is obtained by two independent sealing steps. In addition, a wiper protects against contamination. Sealing in the fit hole is made by an O-ring/back-up ring combination.
