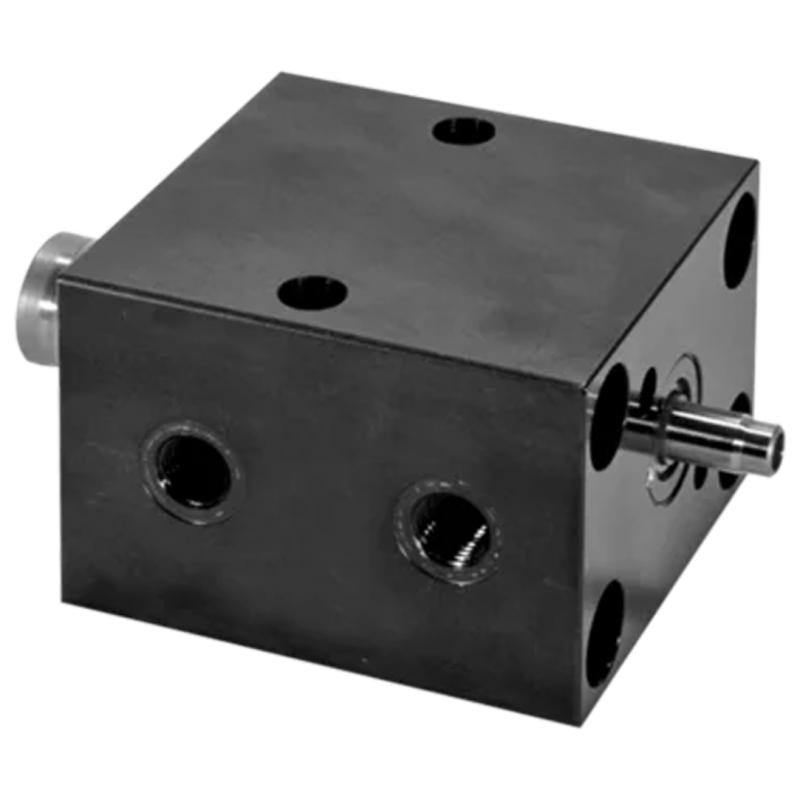

Block Cylinders with Extended Piston Rod for Position Monitoring
ROEMHELD B1.552 Double-Acting Block Cylinders with Extended Piston Rods are used if one or several piston positions have to be controlled.
- Operating pressure 500 bar maximum
- Piston diameter ranges from 25 to 125 mm
- Rod diameter ranges from 16 to 80 mm
- Stroke ranges from 20 to 50 mm
- Maximum push force: 20.6 - 610 kN
The piston is equipped with a rod of diameter 10 mm that protrudes at the cylinder bottom. At this rod the customer can fix a control cam that is used to operate any limit switch or sensor. As an accessory a complete position monitoring system is available. This unit contains a control cam as well as two inductive proximity switches. The switches can be displaced in the housing which will be screwed to the bottom of the cylinder.
Block Cylinders with Extended Piston Rod for Position Monitoring - ROEMHELD B1.552
- Max. operating pressure 500 bar
- Piston diameter: 25 - 125 mm
- Rod diameter: 16 - 80 mm
- Stroke: 20 - 50 mm
- Max. push force: 20.6 - 610 kN
Advantages:
- 8 sizes each with 2 stroke lengths available
- Compact block design
- Many fixing possibilities
- Many connecting possibilities
- Operating temperature up to 150 °C due to standard FKM seals
- Maintenance free
- Complete position monitoring available as accessory
- Position monitoring easily screwable
- Adjustable switching points
- Standard inductive proximity switches with external thread M8x1 can be used
- Inductive proximity switches up to 120 °C available
Application:
Block cylinders with extended piston rods are used if one or several piston positions have to be controlled. Especially if
- standard inductive proximity switches should be used
- the piston positions have to be adjusted on the spot
- control has to be effected at the cylinder bottom due to space restrictions
Description:
The piston is equipped with a rod of diameter 10 mm that protrudes at the cylinder bottom. At this rod the customer can fix a control cam that is used to operate any limit switch or sensor. As an accessory a complete position monitoring system is available. This unit contains a control cam as well as two inductive proximity switches. The switches can be displaced in the housing. The housing will be screwed on at the cylinder bottom.
