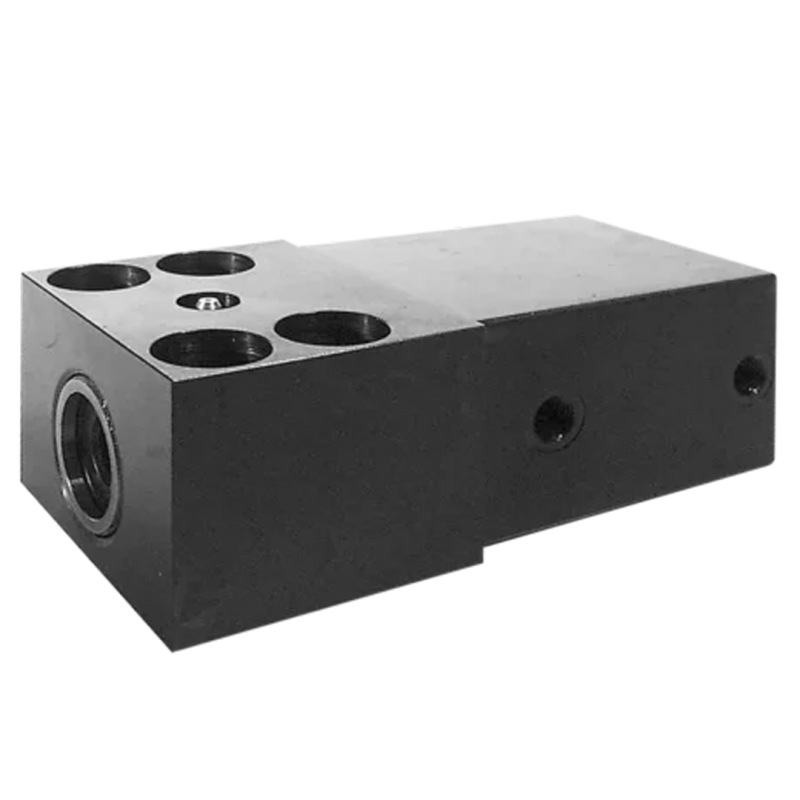

Roemheld Block Cylinders with Guide Housing
ROEMHELD B1.738 Block Cylinder with Guide Housing: Max. operating pressure 500 bar, extending 500 bar steel block cylinder, 350 bar aluminium block cylinder, retracting 350 bar all versions
OBSOLETE ITEM - CONTACT HYQUIP
- Steel or Aluminium housing
- Piston diameter ranges from 25 to 63 mm
- Plunger diameter ranges from 30 to 70 mm
- Stroke ranges from 20 to 63 mm
- Maximum push force: 17.1 - 156 kN
The hardened clamping bolt is located in a guide housing, and is connected to the flange-mounted block-cylinder by means of a coupling.

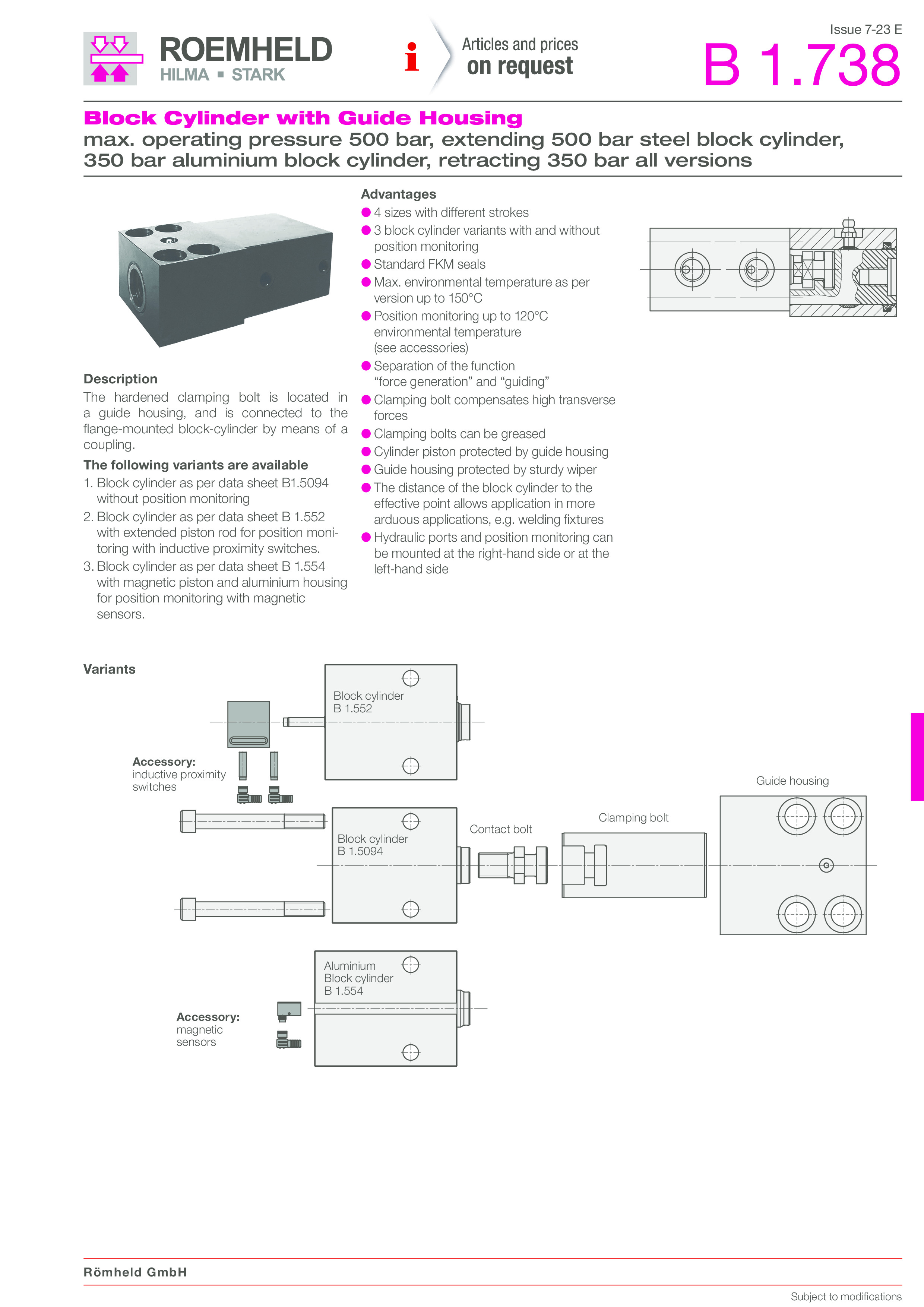

Block Cylinders with Guide Housing - ROEMHELD B1.738
- Steel or Aluminium housing
- Piston diameter: 25 - 63 mm
- Plunger diameter: 30 - 70 mm
- Stroke: 20 - 63 mm
- Max. push force: 17.1 - 156 kN
Advantages:
- 4 sizes with different strokes
- 3 block cylinder variants with and without position monitoring
- Standard FKM seals
- Max. environmental temperature as per version up to 150°C
- Position monitoring up to 120°C environmental temperature
- Separation of the function “force generation” and “guiding”
- Clamping bolt compensates high t ransverse forces
- Clamping bolts can be greased
- Cylinder piston protected by guide housing
- Guide housing protected by sturdy wiper
- The distance of the block cylinder to the effective point allows application in more arduous applications, e.g. welding fixtures
- Hydraulic ports and position monitoring can be mounted at the right-hand side or at the left-hand side
Description:
The hardened clamping bolt is located in a guide housing, and is connected to the flange-mounted block-cylinder by means of a coupling.
The following variants are available:

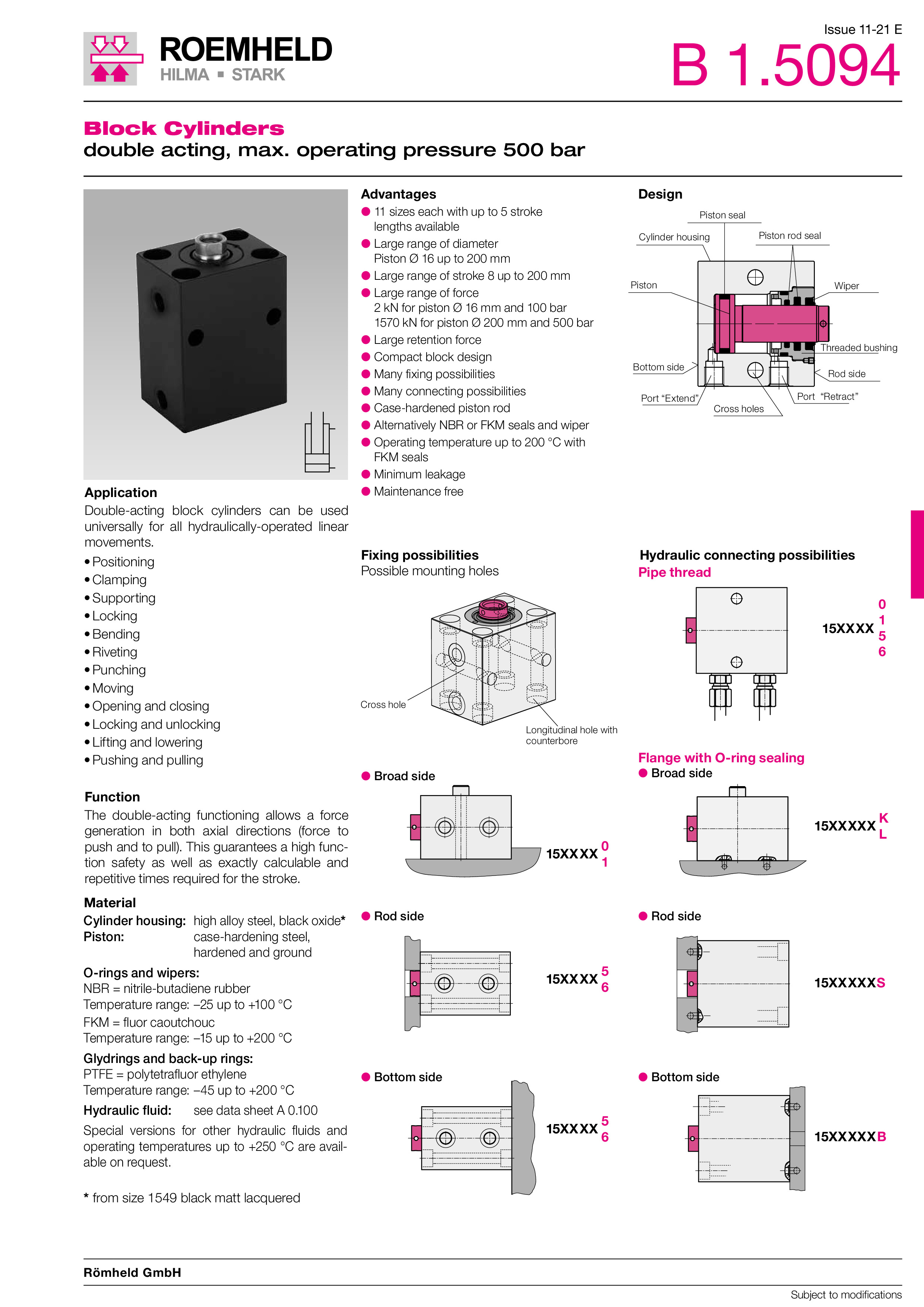

- Block cylinder as per data sheet B1.5094 without position monitoring

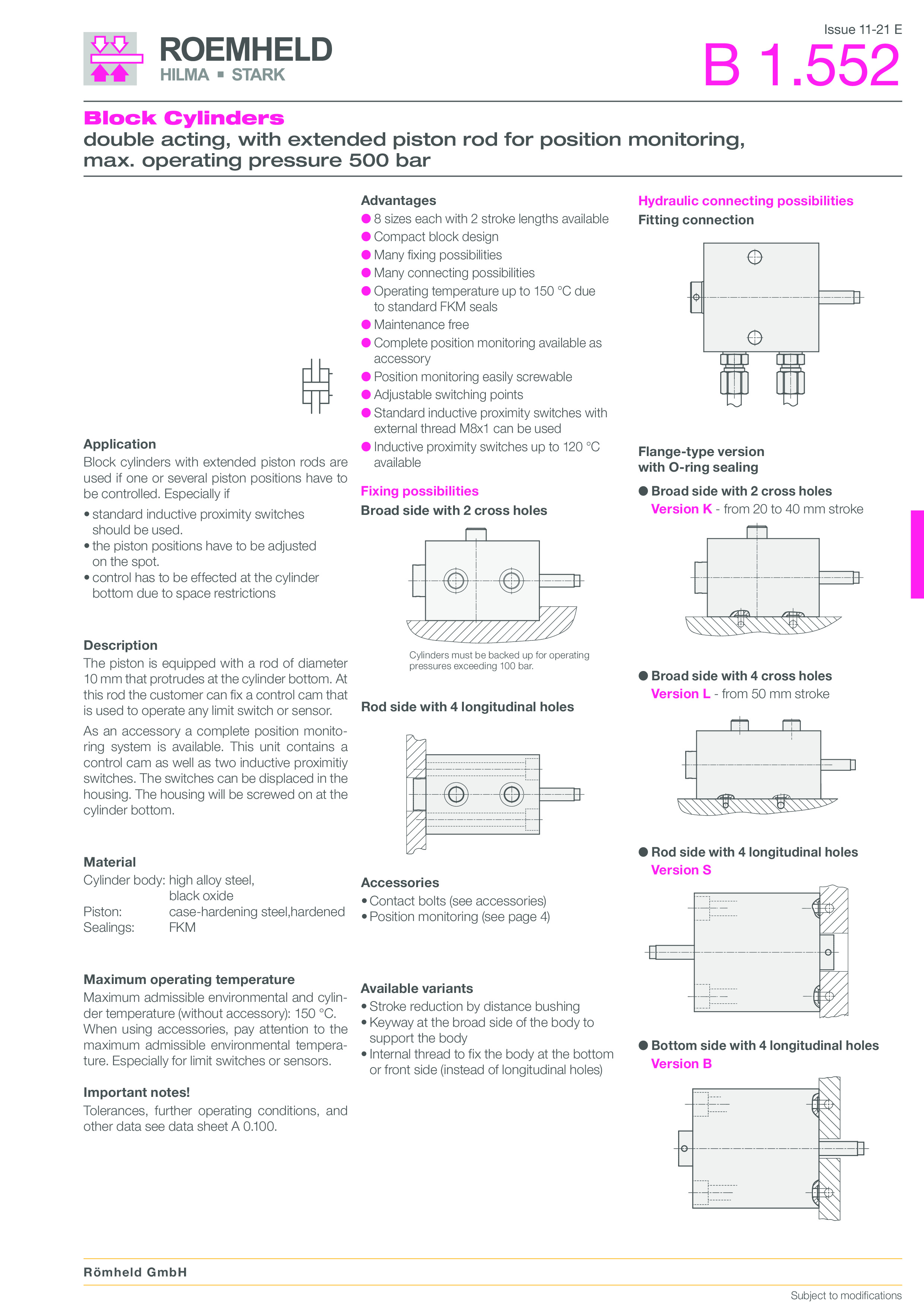

- Block cylinder as per data sheet B1.552 with extended piston rod for position monitoring with inductive proximity switches.
- Block cylinder as per data sheet B1.554 with magnetic piston and aluminium housing for position monitoring with magnetic sensors.
* Important notes - All variants The guide housing is equipped with a lubricating nipple, so that the clamping bolts can be lubricated with high-temperature grease according to the operating conditions. For this purpose the clamping bolt must be retracted in off-position. Lubrication intervals must be adapted to existing operating conditions.
