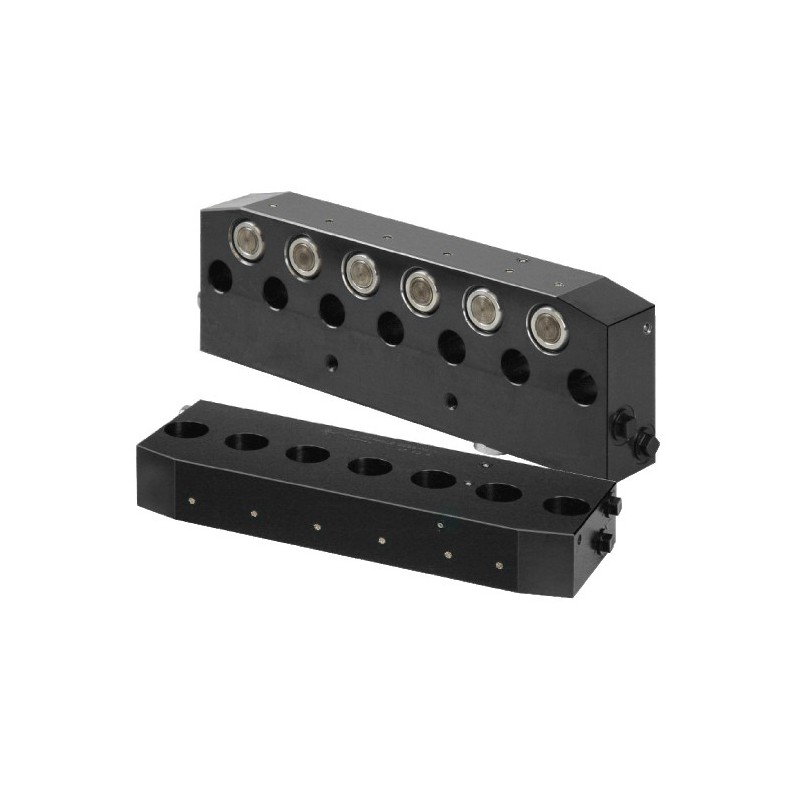

Double Acting Clamping Bars
ROEMHELD WZ 2.2097 Clamping Bars double acting, with built-in pistons
- Max. clamping force: 38.6 .. 116 kN
- Number of pistons: 2 .. 6
- Piston diameter: 15 mm
- Stroke: 8 mm
- Length: 150 .. 270 mm
Double Acting Clamping Bars ROEMHELD WZ 2.2097
- Max. clamping force: 38.6 .. 116 kN
- Number of pistons: 2 .. 6
- Piston diameter: 15 mm
- Stroke: 8 mm
- Length: 150 .. 270 mm
Advantages:
- Piston stroke 8 mm
- Arrangement in series of several clamping bars with plug-in connectors
- Flat and compact design
- Fully resilient stroke limitation
- Easy installation
- Easy to retrofit
Application:
The clamping bars are used permanently installed on press beds and rams, on machines and plants for clamping and locking.
Description:
The clamping bar is directly screwed on the press bed or ram using a spacer bar. Clamping is carried out on the die clamping edge by applying hydraulic pressure to the port of the 2, 3 or 6 pistons which are arranged side by side with a pressure medium. Unclamping is made by pressurising the port B. Hydraulic oil is supplied through G 1/4 ports provided on both sides. Flat design with die inlet chamfer.
