Mechanical Clamping Modules

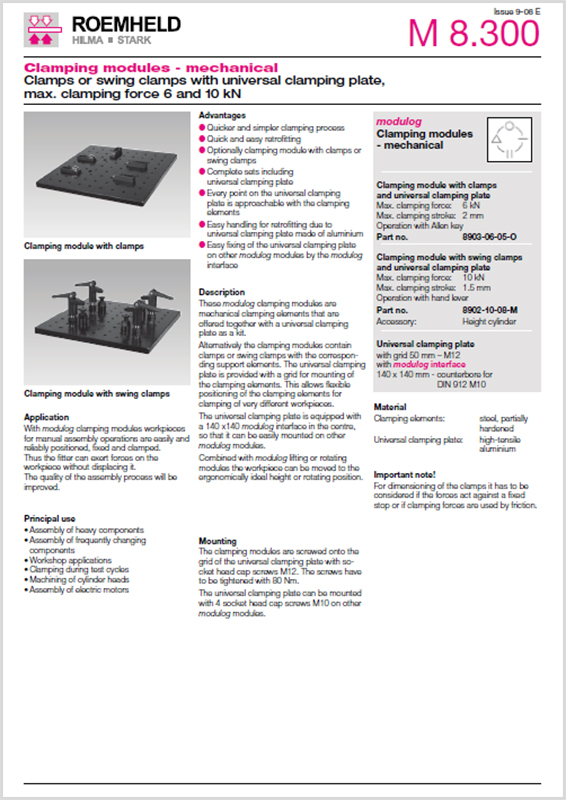

Mechanical Clamping Modules - ROEMHELD M8.300

• Max. clamping force: 6 kN
• Max. clamping stroke: 2 mm
• Max. clamping force: 10 kN
• Max. clamping stroke: 1.5 mm

Advantages:

• Quicker and simpler clamping process
• Quick and easy retrofitting
• Optionally clamping module with clamps or swing clamps
• Complete sets including universal clamping plate
• Every point on the universal clamping plate is approachable with the clamping elements
• Easy handling for retrofitting due to universal clamping plate made of aluminium
• Easy fixing of the universal clamping plate on other modulog modules by the modulog interface

Application:

With modulog clamping modules workpieces for manual assembly operations are easily and reliably positioned, fixed and clamped. Thus the fitter can exert forces on the workpiece without displacing it. The quality of the assembly process will be improved.

Principal use:

• Assembly of heavy components
• Assembly of frequently changing components
• Workshop applications
• Clamping during test cycles
• Machining of cylinder heads
• Assembly of electric motors

Description:

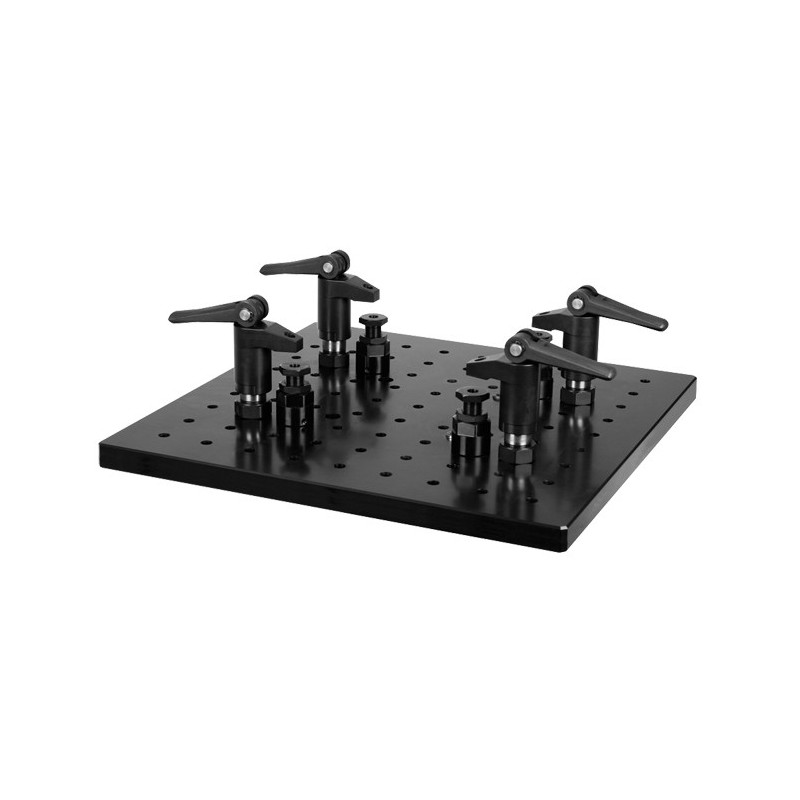

These modulog clamping modules are mechanical clamping elements that are offered together with a universal clamping plate as a kit. Alternatively the clamping modules contain clamps or swing clamps with the corresponding support elements. The universal clamping plate is provided with a grid for mounting of the clamping elements. This allows flexible positioning of the clamping elements for clamping of very different workpieces. The universal clamping plate is equipped with a 140 x 140 modulog interface in the centre, so that it can be easily mounted on other modulog modules. Combined with modulog lifting or rotating modules the workpiece can be moved to the ergonomically ideal height or rotating position.
