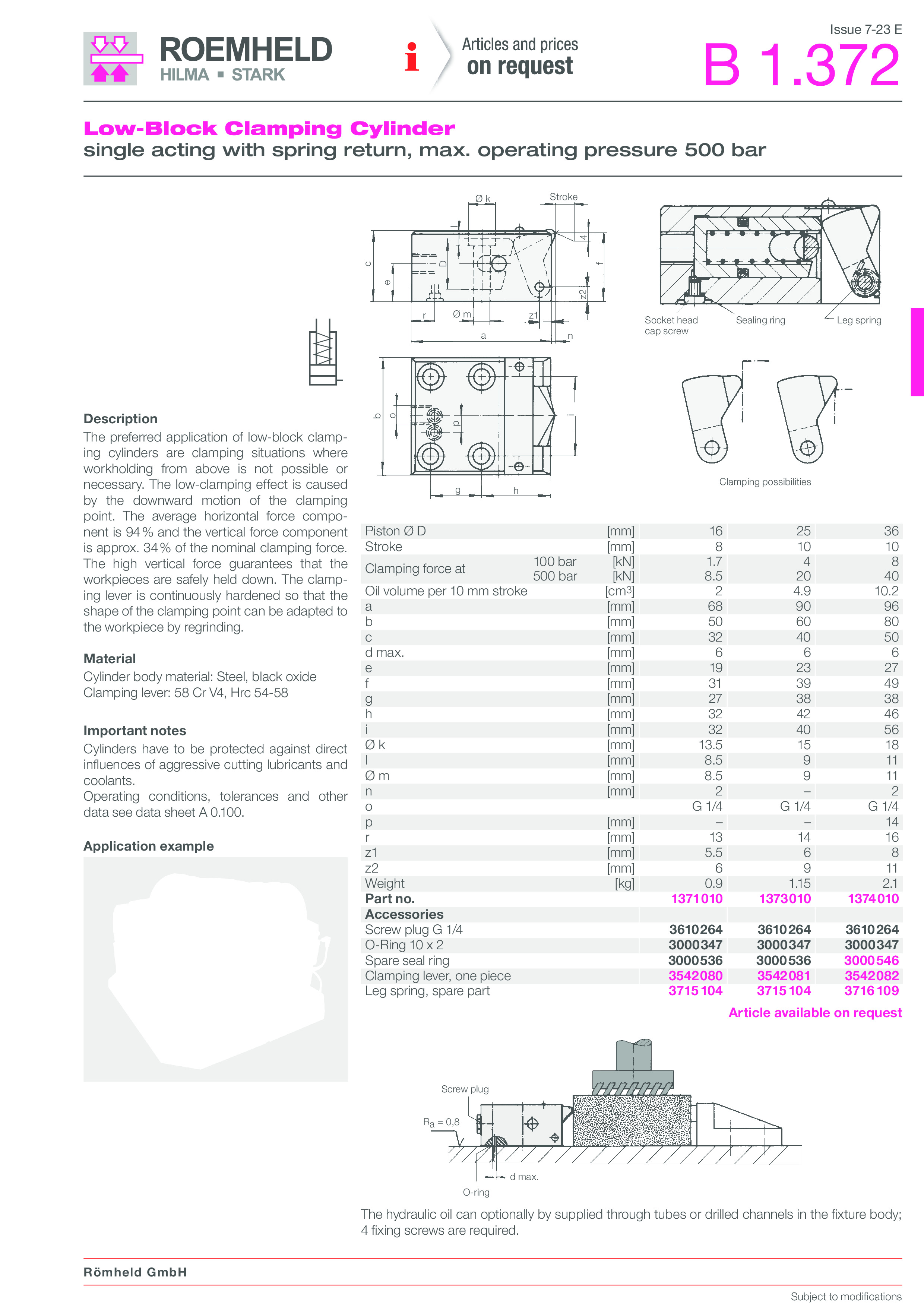

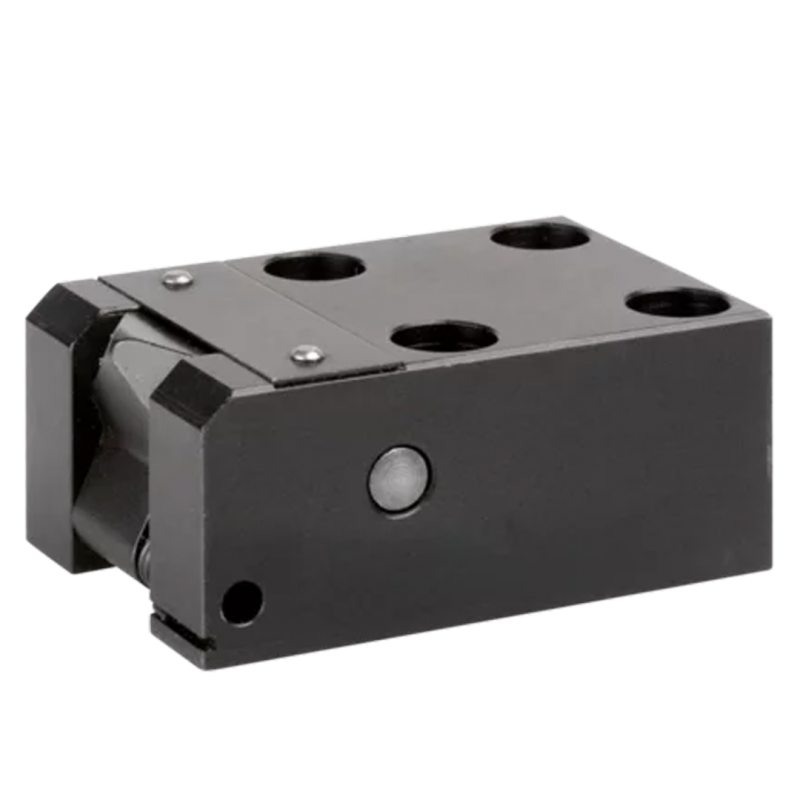

ROEMHELD B1.372 Low-Block Clamping Cylinder: single acting with spring return
OBSOLETE ITEM - CONTACT HYQUIP
- Operating pressure 500 bar maximum
- 3 sizes with maximum clamping forces ranging from 8.5 to 40 kN
- Piston diameter ranging from 16 to 36 mm
- Piston stroke 8 and 10 mm
The preferred application of low-block clamping cylinders are clamping situations where work holding from above is not possible or necessary. The low-clamping effect is caused by the downward motion of the clamping point while the high vertical force guarantees that the workpieces are safely held down.
Low-block Clamping Cylinders - ROEMHELD B1.372
- Max. operating pressure - 500 bar
- 3 sizes with max. clamping forces from 8.5 to 40 kN
- Piston diameter - 16 - 36 mm
- Piston stroke 8 and 10 mm
Description:
The preferred application of low-block clamping cylinders are clamping situations where workholding from above is not possible or necessary. The low-clamping effect is caused by the downward motion of the clamping point while the high vertical force guarantees that the workpieces are safely held down. The average horizontal force component is 94 % and the vertical force component is approx. 34 % of the nominal clamping force. The clamping lever is continuously hardened so that the shape of the clamping point can be adapted to the workpiece by regrinding.
Other features of the clamping cylinder include a clamping stroke of 4mm and clamping elemenets with veritcal and horizontal force component.
