Spring Clamping Cylinders

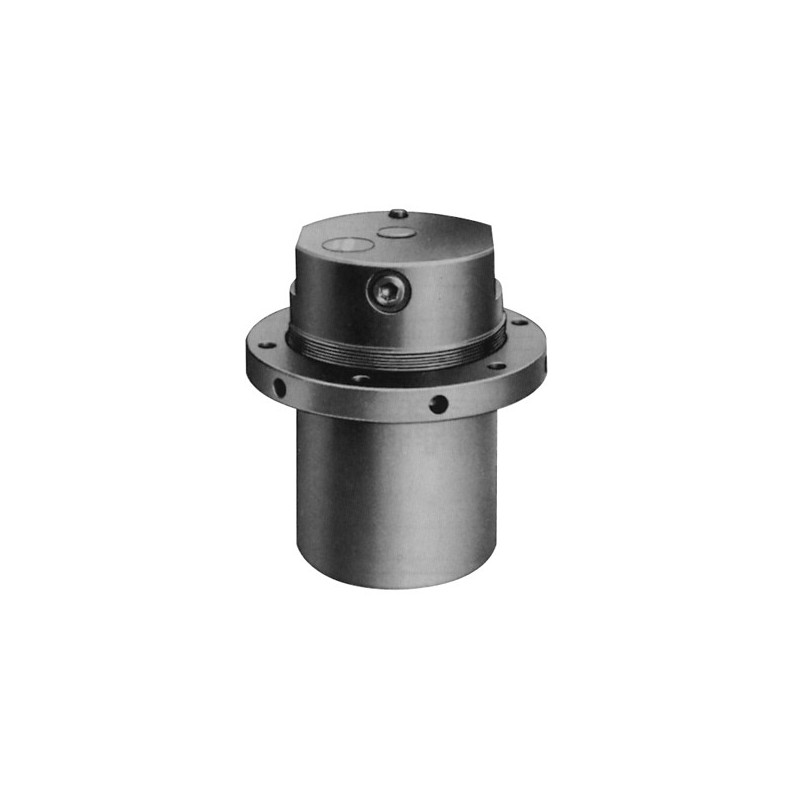

ROEMHELD B1.494 Spring Clamping Cylinder: pulling, with hydraulic return
- Max. operating pressure 250 ...320 bar
- Max. clamping force: 16 - 100 kN
- Unclamping stroke: 0.5 and 1 mm
- Unclamping pressure: 210 - 300 bar
Description
Downloads
Spring Clamping Cylinders - ROEMHELD B1.494
- Max. operating pressure 250 ...320 bar
- Max. clamping force: 16 - 100 kN
- Unclamping stroke: 0.5 and 1 mm
- Unclamping pressure: 210 - 300 bar
- Large choice of clamping forces
- Low-friction Belleville springs placed between hardened and ground thrust washers
- Piston secured against rotation
- Oil ports radial and axial
Description:
Belleville spring assembly installed in hydraulic cylinder. Housing made of tempering steel. Piston in one-piece design, hardened and ground. Ring nut for support and adjustment free from play. Piston rod with interior thread.
Application:
Especially suitable for long-term clamping of movable machine parts, tools, fixtures, pallets, and workpieces in any position. Clamping mechanically by hydraulically adjustable Belleville spring assembly. Unclamping hydraulically.
