Carr Lane Step Blocks and Clamps

Name: Carr Lane Step Blocks and Clamps
Brand: Carr Lane
SKU: 6635
Price: 9.46 GBP
Availability: PreOrder

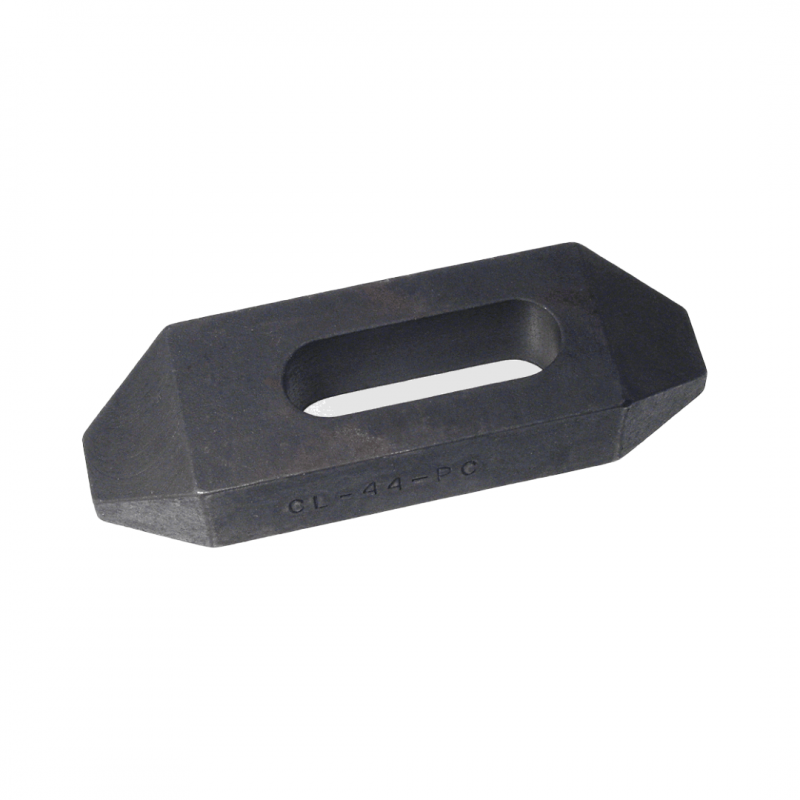

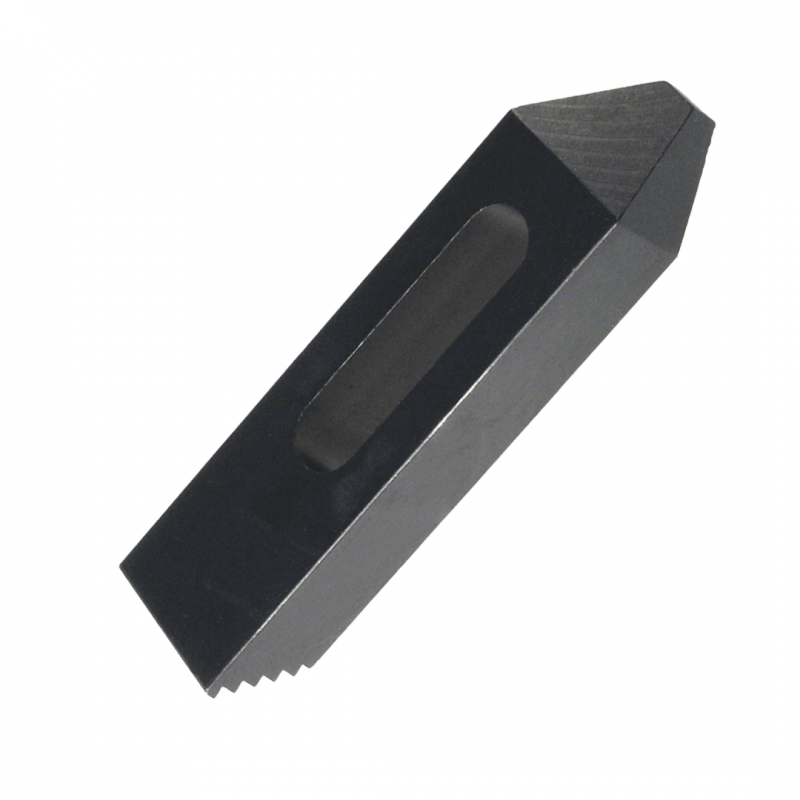

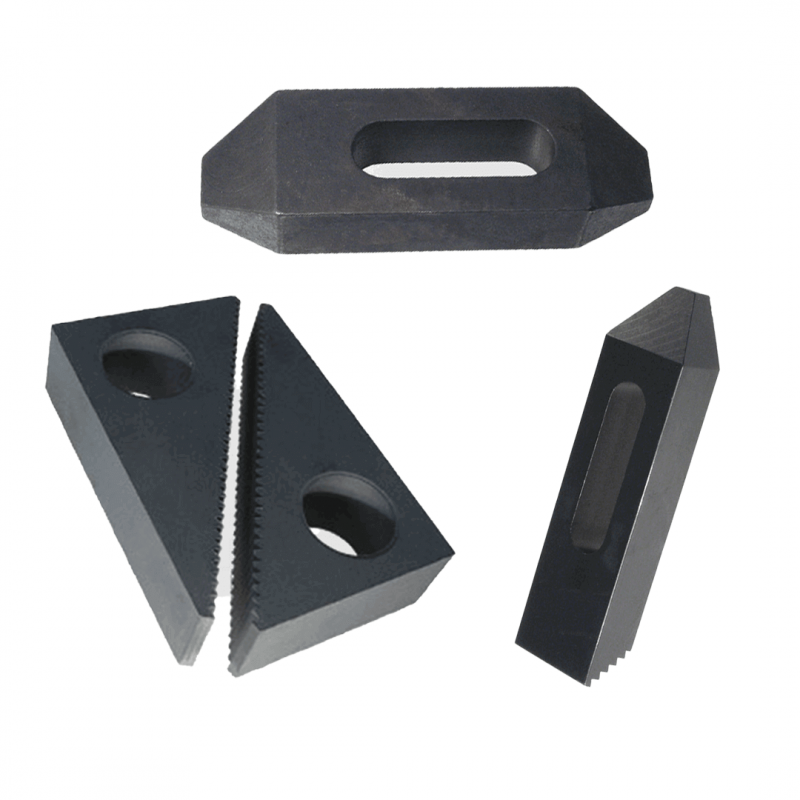

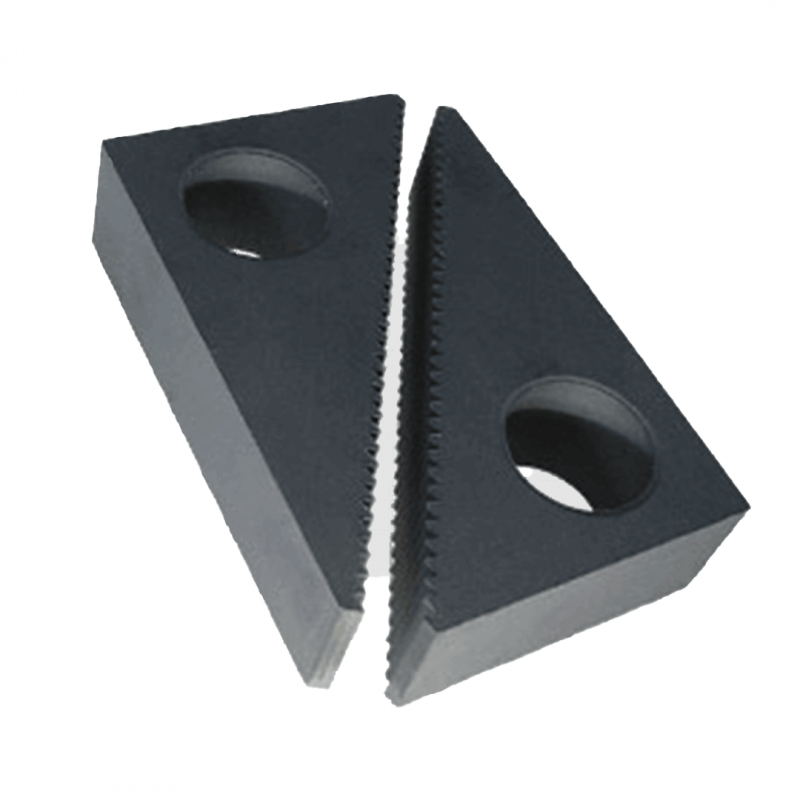

HYQUIP supply the full range of Carr Lane plain clamps step clamps and step blocks. Step Clamps feature rear serrations that are compatible with all our Step Blocks, offering superior load-bearing performance. They are designed to fit stud sizes ranging from 3/8-16 to 3/4-10 (M10 to M20 in metric) and are available in three strap length options. Carr Lane step blocks are engineered with serrations for enhanced load capacity. They can be used in pairs as a two-piece rest block or individually with a Step Clamp. Both Step Blocks and Step Clamps feature matching serrations, ensuring maximum flexibility. Larger blocks are equipped with a finger hole for easier handling. Step Blocks are sold as pairs (one set includes two blocks). Made in the USA. Carr lane Plain Clamps are double-ended, tapered-nose strap clamps that can hold two workpieces at once or serve as rear supports when used with Step Blocks to hold a single workpiece. They fit stud sizes from 3/8-16 to 3/4-10 (M10 to M20 in metric) and are available in three strap length choices.

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Length	Stud Size	Clamp Type	Price
CL-90-BS CL-90-BS	5.604	No Stud	Clamp Rest	£88.19 £105.83 Inc. VAT
CL-60-BS CL-60-BS	5.604	No Stud	Clamp Rest	£65.45 £78.54 Inc. VAT
CL-80-BS CL-80-BS	3.890	No Stud	Clamp Rest	£49.19 £59.03 Inc. VAT
CL-50-BS CL-50-BS	3.890	No Stud	Clamp Rest	£39.25 £47.10 Inc. VAT
CL-40-BS CL-40-BS	2.390	No Stud	Clamp Rest	£18.49 £22.19 Inc. VAT
CL-30-BS CL-30-BS	3.980	No Stud	Clamp Rest	£25.38 £30.46 Inc. VAT
CL-20-BS CL-20-BS	1.747	No Stud	Clamp Rest	£10.88 £13.06 Inc. VAT
CL-10-BS CL-10-BS	1.104	No Stud	Clamp Rest	£7.88 £9.46 Inc. VAT
CL-32-PC CL-32-PC	2-1/2	3/8 or M10	Plain Clamp	£15.56 £18.67 Inc. VAT
CL-52-STC CL-52-STC	2-1/2	5/8 or M16	Step Clamp	On Enquiry
CL-42-PC CL-42-PC	2-1/2	1/2 or M12	Plain Clamp	£17.50 £21.00 Inc. VAT
CL-32-STC CL-32-STC	2-1/2	3/8 or M10	Step Clamp	£34.85 £41.82 Inc. VAT
CL-52-PC CL-52-PC	2-1/2	5/8 or M16	Plain Clamp	£18.40 £22.08 Inc. VAT
CL-42-STC CL-42-STC	2-1/2	1/2 or M12	Step Clamp	£34.64 £41.57 Inc. VAT
CL-44-STC CL-44-STC	4	1/2 or M12	Step Clamp	£30.11 £36.13 Inc. VAT
CL-64-PC CL-64-PC	4	3/4 or M20	Plain Clamp	£30.92 £37.10 Inc. VAT
CL-34-PC CL-34-PC	4	3/8 or M10	Plain Clamp	£20.40 £24.48 Inc. VAT
CL-54-STC CL-54-STC	4	5/8 or M16	Step Clamp	On Enquiry
CL-44-PC CL-44-PC	4	1/2 or M12	Plain Clamp	£22.34 £26.81 Inc. VAT
CL-34-STC CL-34-STC	4	3/8 or M10	Step Clamp	£24.85 £29.82 Inc. VAT
CL-64-STC CL-64-STC	4	3/4 or M20	Step Clamp	On Enquiry
CL-54-PC CL-54-PC	4	5/8 or M16	Plain Clamp	£26.81 £32.17 Inc. VAT
CL-56-PC CL-56-PC	6	5/8 or M16	Plain Clamp	£34.76 £41.71 Inc. VAT
CL-46-STC CL-46-STC	6	1/2 or M12	Step Clamp	£36.40 £43.68 Inc. VAT
CL-36-PC CL-36-PC	6	3/8 or M10	Plain Clamp	£27.20 £32.64 Inc. VAT
CL-66-PC CL-66-PC	6	3/4 or M20	Plain Clamp	£44.64 £53.57 Inc. VAT
CL-56-STC CL-56-STC	6	5/8 or M16	Step Clamp	£45.98 £55.18 Inc. VAT
CL-46-PC CL-46-PC	6	1/2 or M12	Plain Clamp	£32.63 £39.16 Inc. VAT
CL-36-STC CL-36-STC	6	3/8 or M10	Step Clamp	On Enquiry
CL-66-STC CL-66-STC	6	3/4 or M20	Step Clamp	£53.72 £64.46 Inc. VAT
CL-68-PC CL-68-PC	8	3/4 or M20	Plain Clamp	£61.92 £74.30 Inc. VAT
CL-68-STC CL-68-STC	8	3/4 or M20	Step Clamp	£71.26 £85.51 Inc. VAT

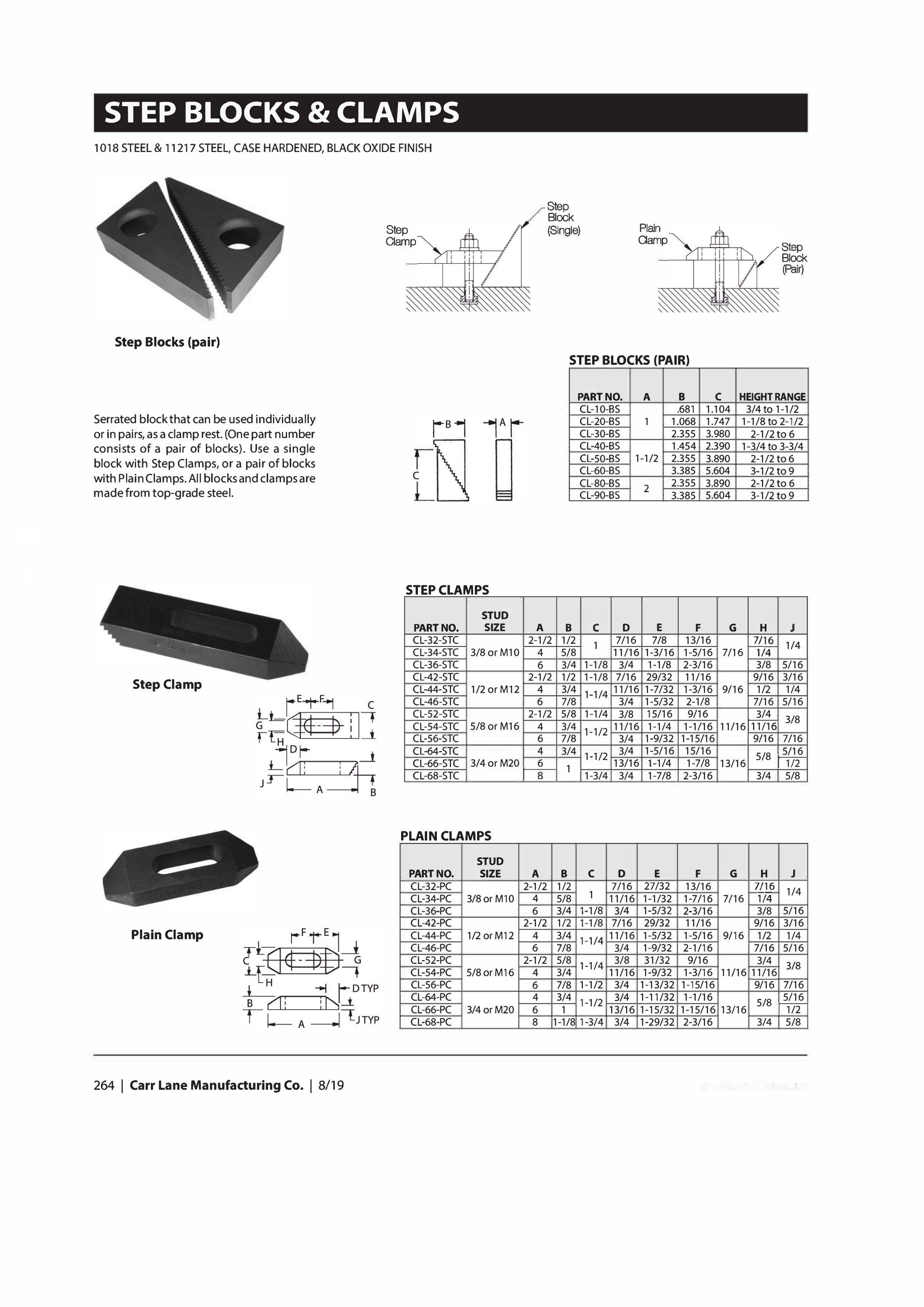

Carr Lane Step Blocks and Clamps datasheet
