Bosch Rexroth Digital Control Electronics VT-HACD-3-2X

VT-HACD-3-2X

Digital closed-loop control electronics VT-HACD-3-2X

  • Component series 2X
  • For controlling 1 to 4 control circuits

Description

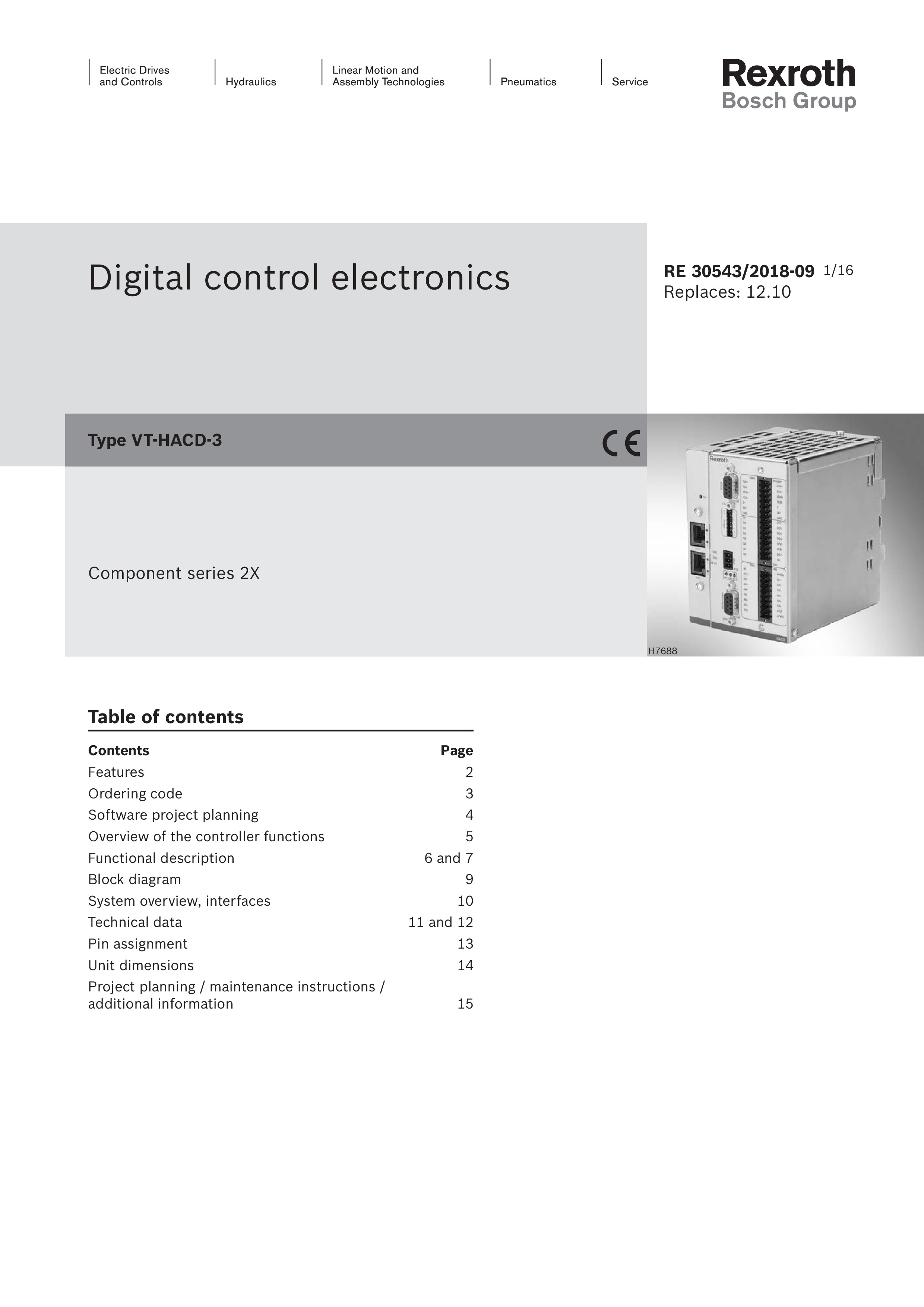

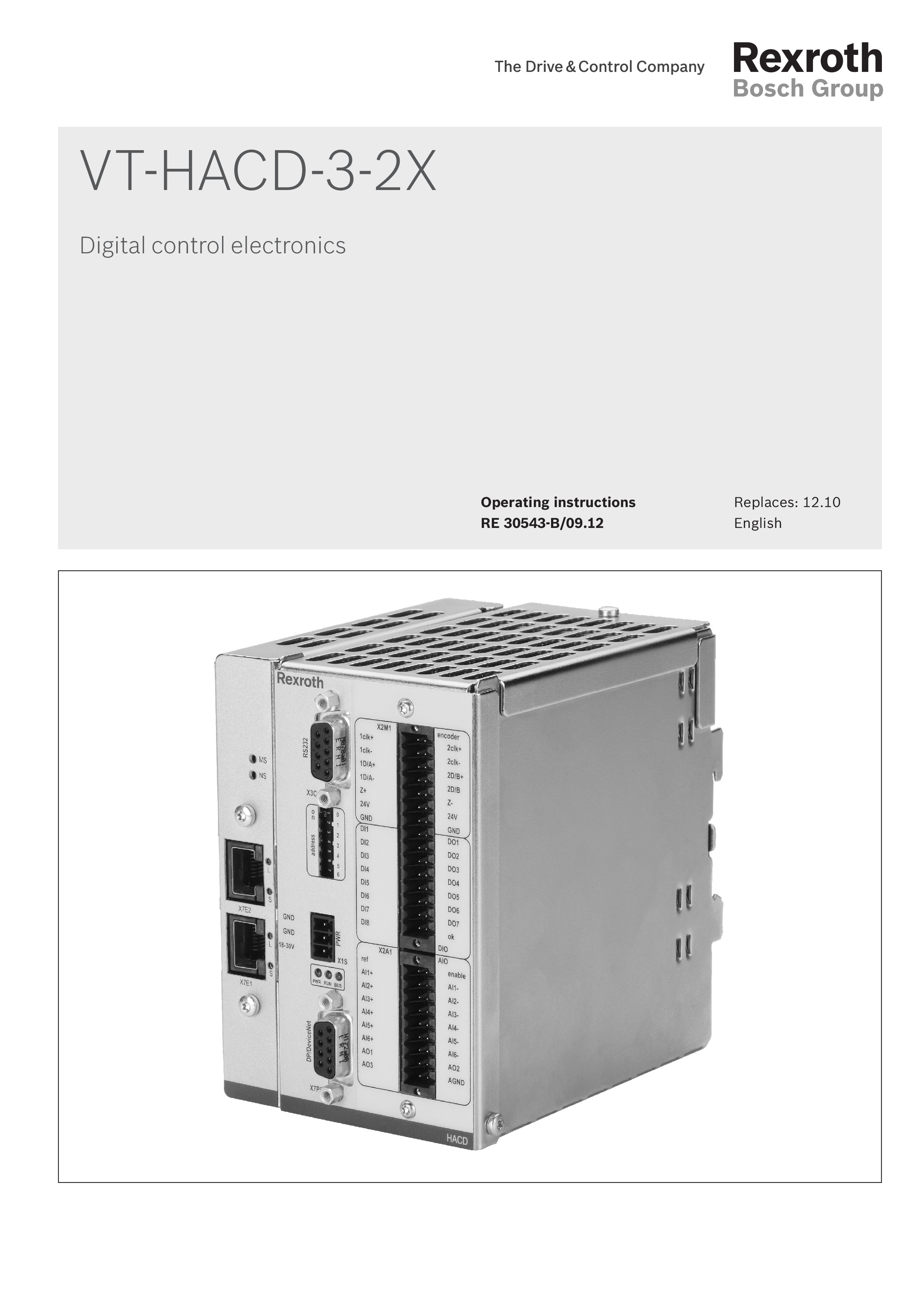

Downloads

Bosch Rexroth Digital Control Electronics VT-HACD-3-2X

  • Component series 2X
  • For controlling 1 to 4 control circuits

Features:

  • Use as closed-loop control electronics for closed control loops with PIDT1 controller and optional state feedback
  • Substitutional closed-loop control (e.g. position control with superimposed pressure/force control) possible
  • Use as command value electronics for generating, linking and standardizing signals
  • Input for digital position measurement systems (2 x SSI or 1 x incremental)
  • 6 analog inputs, voltage (±10 V, 0…10 V) and current (4…20 mA) selectable via software, input resistance of AI1 > 10 MΩ
  • 3 analog outputs, 1x selectable voltage (±10 V, 0…10 V) or current (0…20 mA, 4…20 mA), 2x voltage (±10 V)
  • Numerous possibilities of signal linking and switch-over
  • Release input and OK output
  • 8 digital inputs
  • 7 digital outputs, configurable
  • Parameterizable ramp function
  • 32 blocks with command values, velocities and controller parameters
  • Adjustment to hydraulic drive by means of area adjustment, characteristic curve correction, overlap compensation, residual velocity logic and zero point correction
  • +10 V reference voltage output
  • Serial interface RS232
  • Up to 32 electronics can be interconnected for parameterization and diagnosis via the local bus
